Partiron

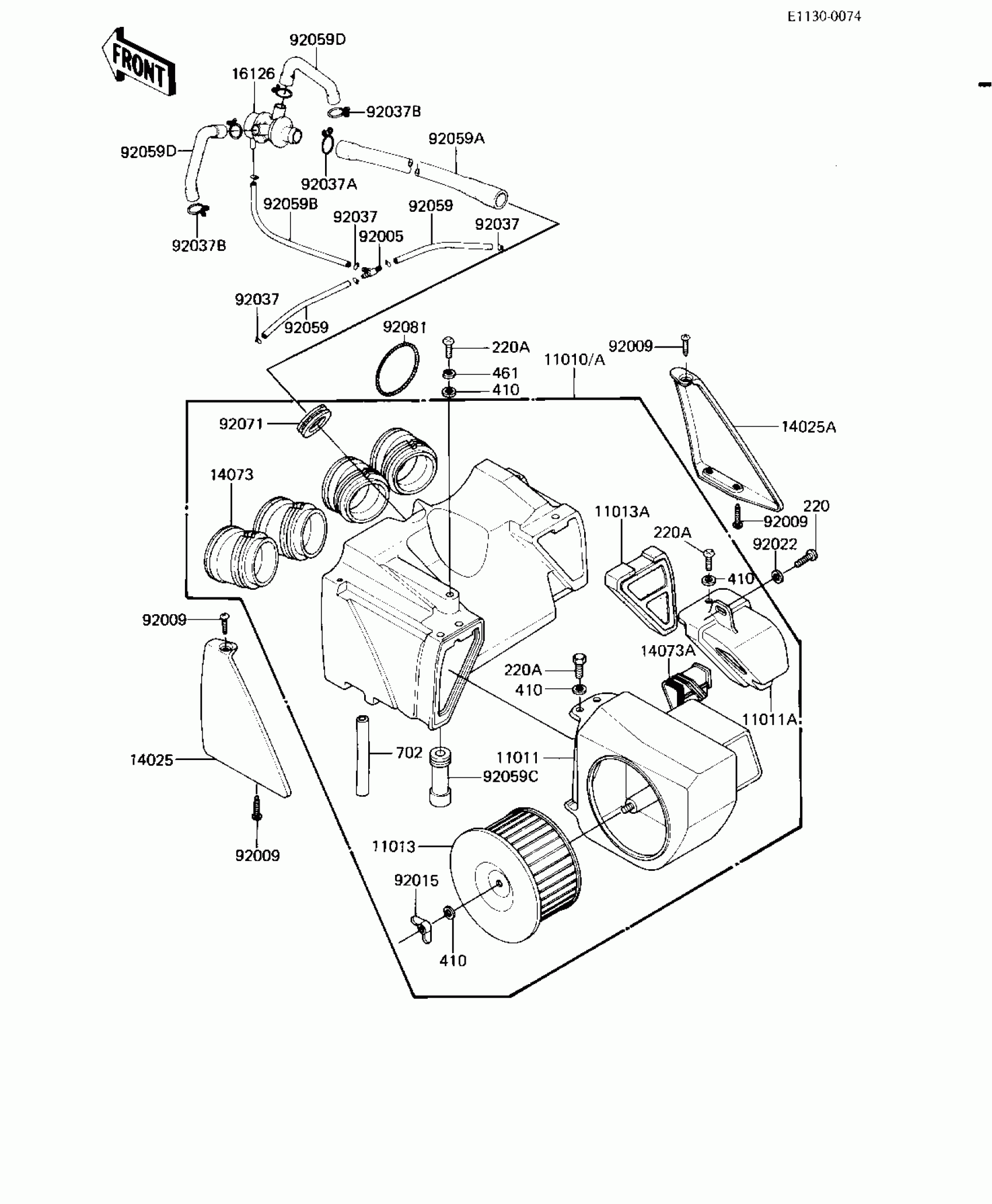

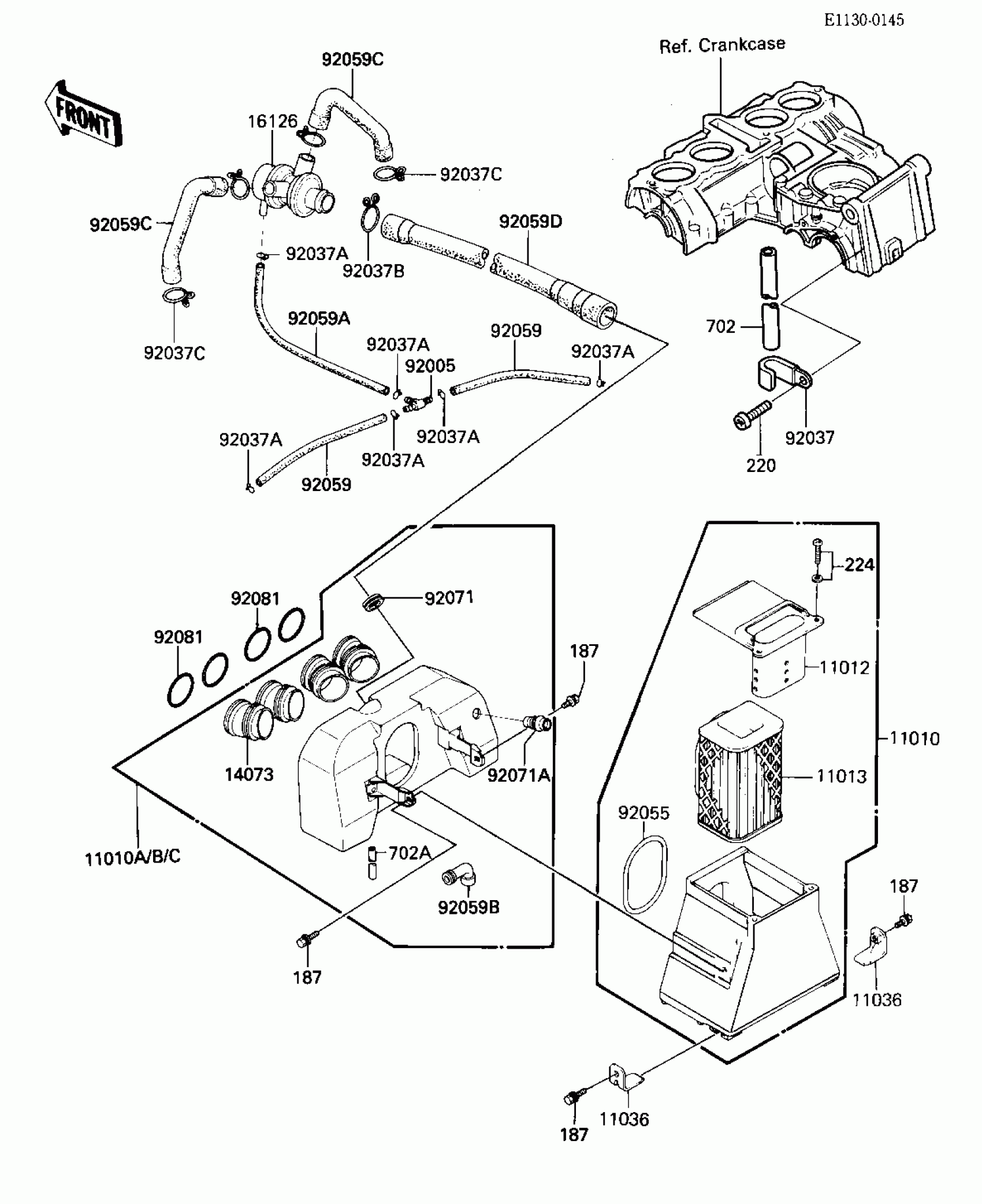

Kawasaki GPz AIR CLEANER Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1122

Unavailable

11010A

FILTER-ASSY-AIR (Canada)

11010-1123

Unavailable

11011

CASE-AIR FILTER

11011-1104

Unavailable

11011A

CASE-AIR FILTER

11011-1105

Unavailable

11013

ELEMENT,AIR CLNR

11013-1058

Unavailable

11013A

ELEMENT,AIR CLNR

11013-1059

Unavailable

14025

COVER,AIR FILTER,LH

14025-1405

Unavailable

14025A

COVER,AIR FILTER,RH

14025-1406

Unavailable

14073

DUCT,AIR FILTER

14073-1073

Unavailable

14073A

DUCT,AIR FILTER

14073-1075

Unavailable

16126

VALVE ASSY,AIR SWITCH

16126-1017

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,TAPPING,5X12,BL

92009-1138

$3.58

92015

NUT,AIR CLEANER CAP

92016-062

$4.41

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92037

CLAMP,TUBE

92037-072

$5.51

92037A

CLAMP,TUBE

92037-1076

$7.14

92037B

CLAMP,TUBE

92037-213

$3.29

92059

TUBE,VACUUM,LONG

92059-1162

$14.40

92059A

TUBE,19X21X340L

92059-1039

Unavailable

92059B

TUBE,4X9X220

92059-1040

$9.85

92059C

TUBE,BREATHER,10X63L

92059-1200

Unavailable

92059D

TUBE,AIR

92059-1208

Unavailable

92071

GROMMET,AIR FILTER

92071-1013

$5.61

92081

SPRING,AIR FILTER DUCT

92144-1771

$9.84

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

220A

SCREW-PAN-CROS,6X16

220B0616

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

461

WASHER SPRING 6MM

461F0600

Unavailable

702

TUBE-RUBBER,4X70

702A0470

$2.19
