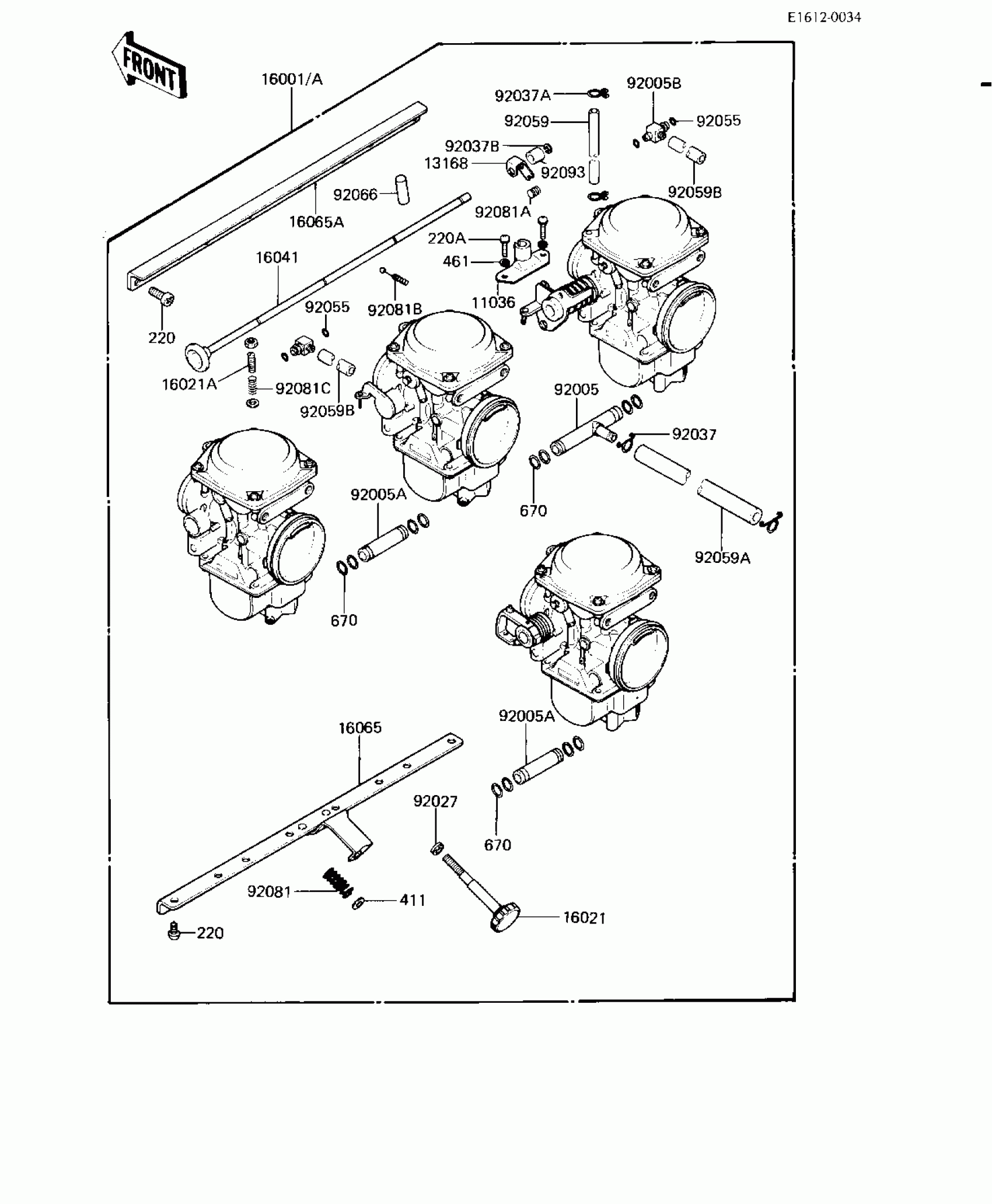

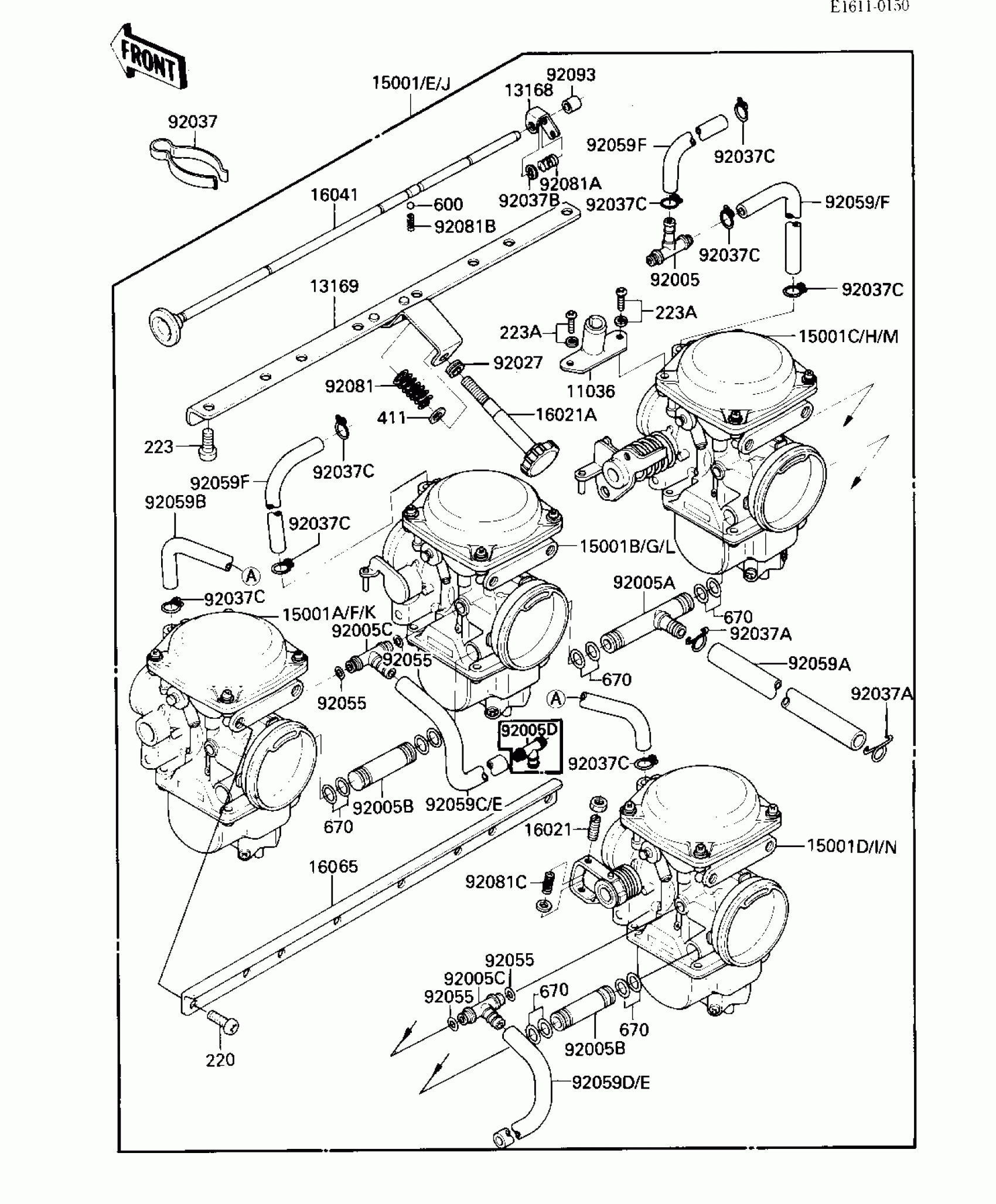

Kawasaki GPz CARBURETOR ASSY Diagram

#

Description
Price

11036

BRACKET-A

11036-1453

Unavailable

13168

LEVER

13168-1110

Unavailable

13169

PLATE,CARBURETOR,LWR

13169-1625

Unavailable

15001E

CARBURATOR (Canada)

16001-1979

Unavailable

15001F

CARBURETOR,LH,OUTSIDE (Canada)

16001-1980

Unavailable

15001G

CARBURETOR,LH,INSIDE (Canada)

16001-1981

Unavailable

15001H

CARBURETOR,RH,INSIDE (Canada)

16001-1982

Unavailable

15001I

CARBURETOR,RH,OUTSIDE (Canada)

16001-1983

Unavailable

16021

SCREW-THROTTLE STOP

16021-1043

$9.55

16021A

SCREW-THROTTLE STOP

16021-1048

$102.70

16041

SHAFT-CARBURETOR,STAR

16041-1027

$72.43

16065

HOLDER-CARBURETOR

16065-1057

$44.72

92005

"T"JOINT,FUEL

92005-1020

Unavailable

92005A

"T"JOINT,FUEL

92005-1020

Unavailable

92005B

JOINT,FUEL

92005-1021

$37.66

92005C

FITTING

92005-1058

$17.56

92027

COLLAR,STOP SCREW

92027-1432

Unavailable

92037A

CLAMP,FUEL HOSE

92037-1158

$8.84

92037B

CLAMP

92037-1302

Unavailable

92055

RING-O

92055-1134

$8.67

92059A

TUBE,7X12X200

92059-1290

$25.94

92081

SPRING,ADJUST SCREW

92081-1193

Unavailable

92081A

SPRING

92081-1439

Unavailable

92081B

SPRING,SHAFT STOP

92081-1440

Unavailable

92081C

SPRING

92081-1442

Unavailable

92093

SEAL

92093-1074

$12.19

220

SCREW-PAN-CROS,6X14

220B0614

$1.48

223

SCREW-PAN-WS-CROS

223C0414

$3.90

223A

SCREW-PAN-WS-CROS

223C0418

$3.84

411

WASHER-PLAIN,5MM

411S0500

$0.94

600

BALL,STEEL,1/8"

600A0400

$1.40

670

O RING,7MM

670B1507

$1.28
