Description

Price

11043

BRACKET,CANISTER

11043-1551

Unavailable

11043A

BRACKET,SEPARATOR

11043-1552

Unavailable

16164

CANISTER

16164-1052

$131.28

16165

SEPARATOR

16165-1001

$90.01

92001

BOLT,W/SP,6X16

92001-1763

$4.50

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-072

$7.22

92037B

CLAMP-HOSE

92037-1104

$1.45

92059

TUBE,5X8X980,BLUE

92059-1420

Unavailable

92059A

TUBE,7X12X880,GREEN

92059-1413

$41.13

92059B

TUBE,7X12X1060,GREEN

92059-1421

$41.13

92059C

TUBE,5X8X500,RED

92059-1418

Unavailable

92059D

TUBE,5X8X980,BLUE

92059-1420

Unavailable

92059E

TUBE,4X9X640,WHITE

92059-1422

$19.09

92072

BAND,L=142.1

92072-006

$12.76

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=50

92072-066

$16.08

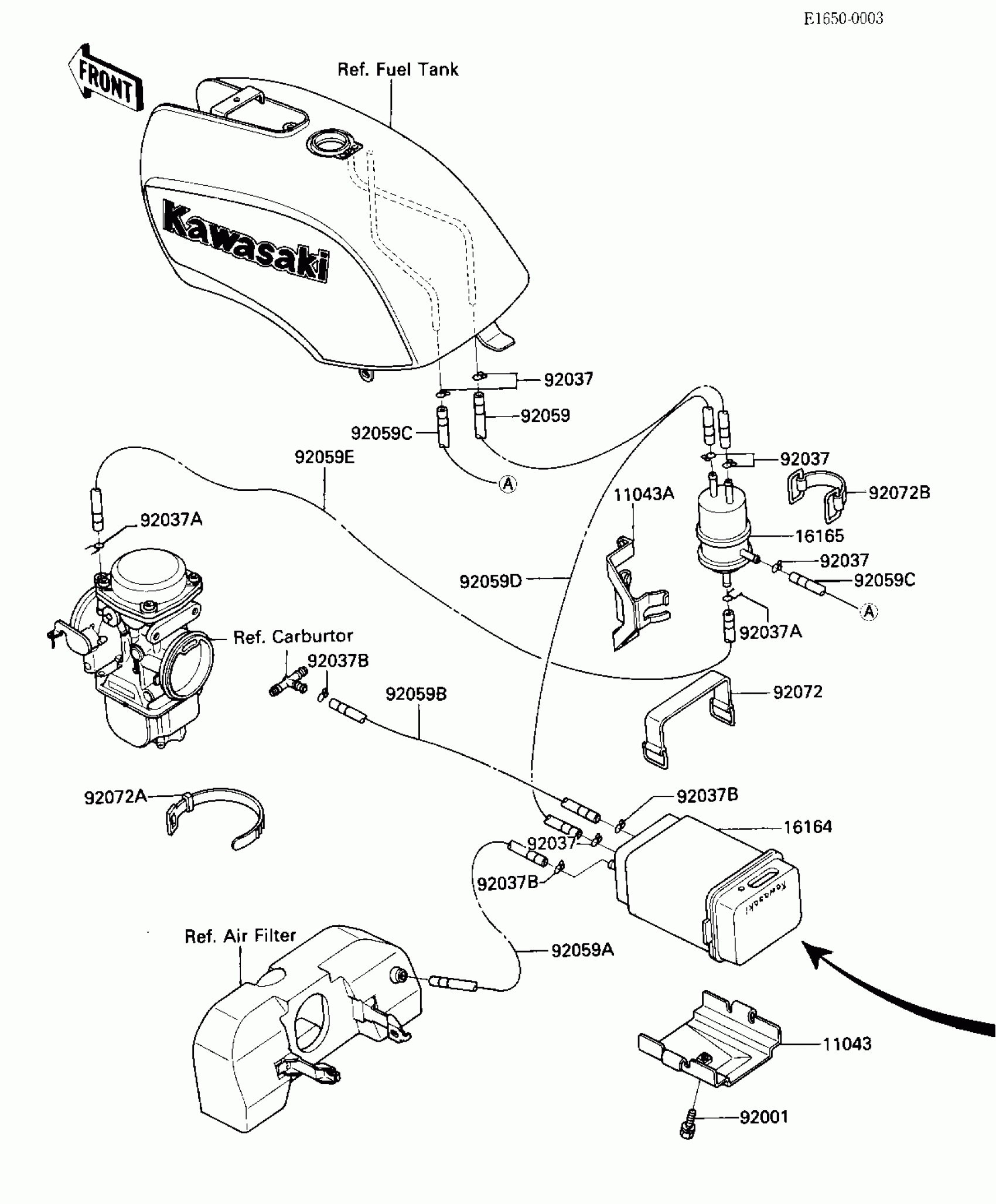

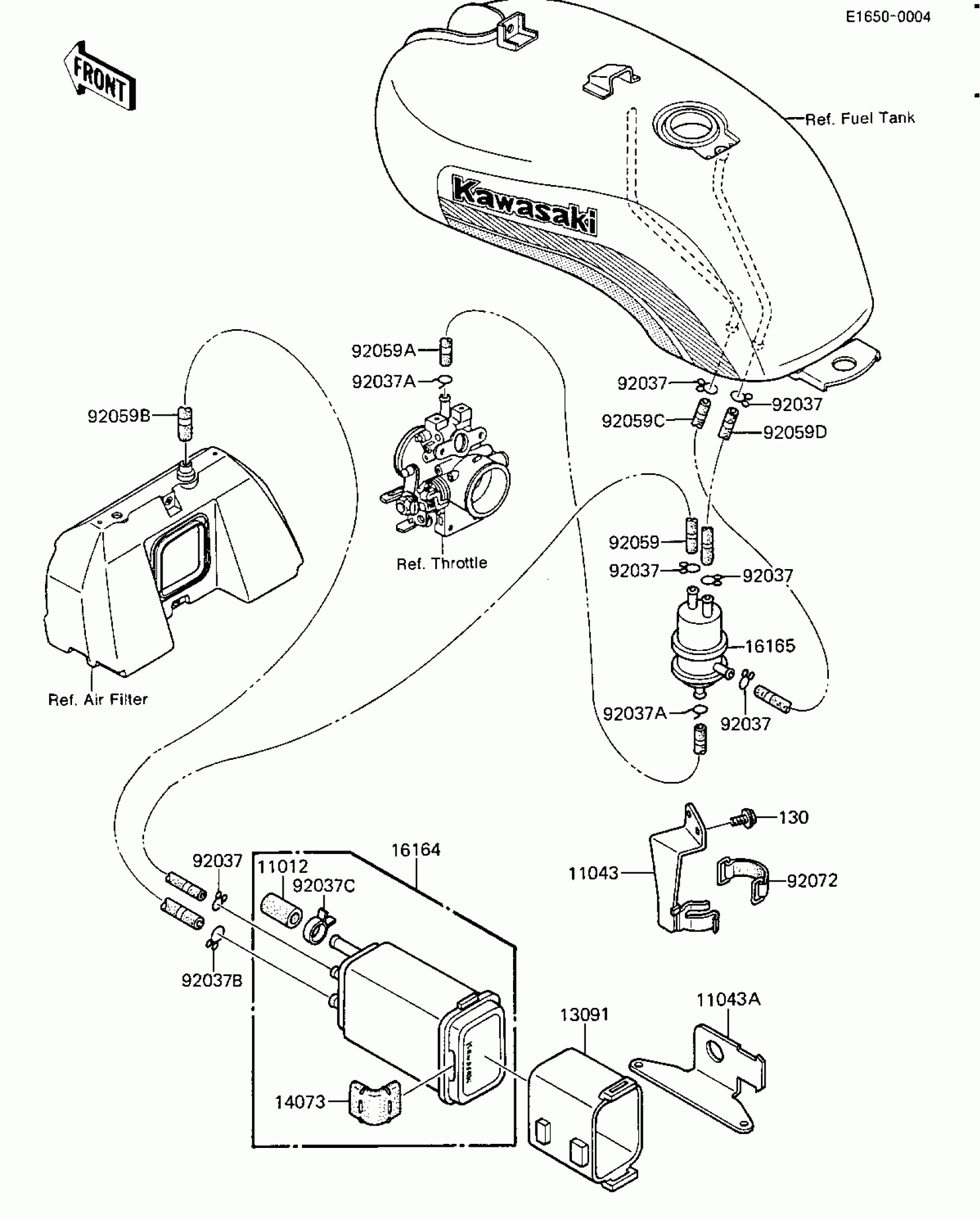

Kawasaki GPz CANISTER Diagram

BRACKET,CANISTER

BRACKET,SEPARATOR

CANISTER

SEPARATOR

BOLT,W/SP,6X16

CLAMP,TUBE

CLAMP,TUBE

CLAMP-HOSE

TUBE,5X8X980,BLUE

TUBE,7X12X880,GREEN

TUBE,7X12X1060,GREEN

TUBE,5X8X500,RED

TUBE,5X8X980,BLUE

TUBE,4X9X640,WHITE

BAND,L=142.1

BAND,L=149

BAND,L=50
