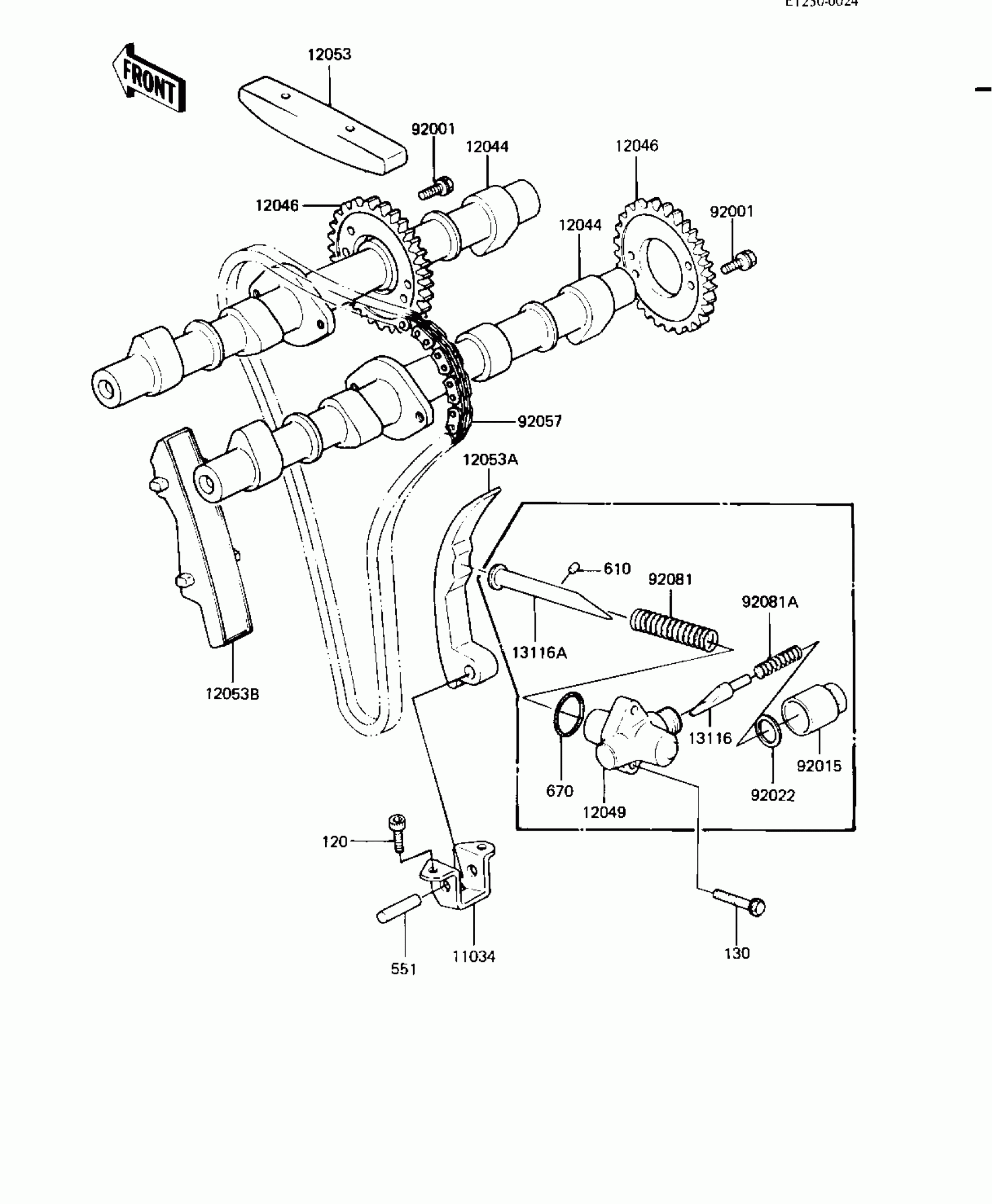

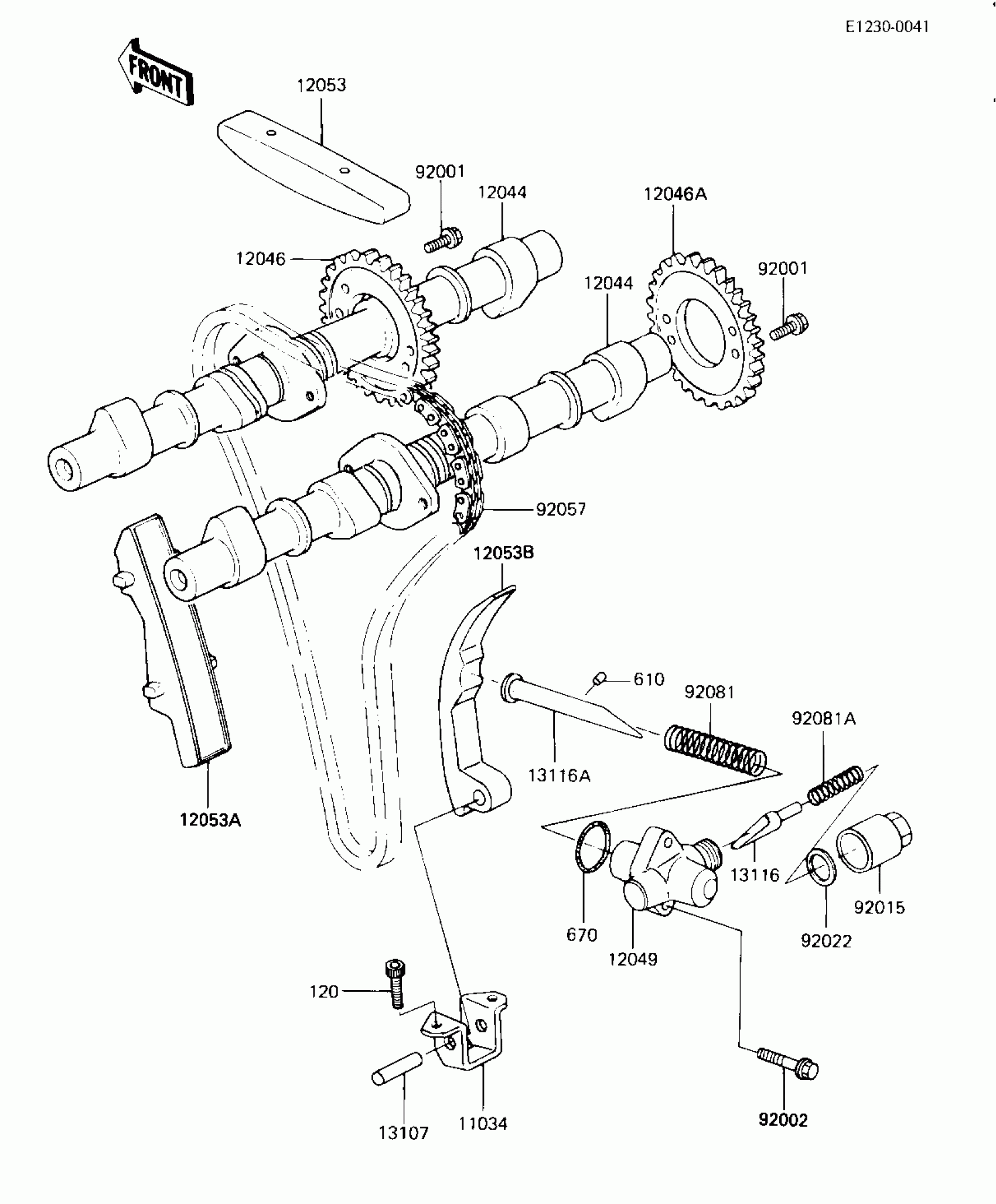

Kawasaki GPz CAMSHAFT/CHAIN/TENSIONER Diagram

Description

Price

11034

BRACKET,CHAIN GUIDE

11034-1240

$11.51

12044

CAMSHAFT-VALVE

12044-1059

Unavailable

12046

SPROCKET,CAMSHAFT,42T

12046-1019

$81.47

12046A

SPROCKET,CAMSHAFT,42T

12046-1020

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1016

Unavailable

12053

GUIDE-CHAIN,CAM,HEAD

12053-1018

$35.78

12053A

GUIDE-CHAIN,CAM,FR

12053-1022

$42.72

12053B

GUIDE-CHAIN,CAM,RR

12053-1113

$83.54

13107

SHAFT,8X25

13107-1142

$7.68

13116

ROD-PUSH,TENSIONER

13116-1012

$19.66

13116A

ROD-PUSH,CAM CHAIN

13116-1020

$38.11

92001

BOLT,FLANGED,6X11

92003-208

$4.31

92002

BOLT,FLANGED,6X25

92002-1086

$5.52

92015

NUT,CAP,18MM,BLACK

92015-1177

Unavailable

92022

WASHER,18.3X24X1.4

92022-1175

$4.39

92057

CHAIN,CAM,82RH2015-140L

92057-1290

$115.07

92081

SPRING,TENSIONER

92081-1075

$5.03

92081A

SPRING,TENSIONER

92081-1302

$5.54

120

BOLT-SOCKET,6X18

120P0618

$2.87

610

ROLLER,4X8

610A0408

$4.31

670

O RING,21MM

670B2021

$4.69
