Description

Price

11009

GASKET,OIL PAN

11060-1057

Unavailable

11009A

GASKET,TRANSMISSION COVER

11060-1056

Unavailable

11009B

GASKET,12X22X2

92065-097

$0.74

12053

GUIDE-CHAIN

12053-1006

$10.97

14024

COVER,TRANSMISSION

14025-1700

Unavailable

14070

BODY-BREATHER,BLACK

14070-1010

$39.70

27010

SWITCH,OIL LEVEL

27010-1057

$255.46

49034

PAN-OIL

49034-1081

$178.55

92001

BOLT,8X72,BLACK

92001-1526

Unavailable

92002

BOLT,6X25

92002-1089

$2.80

92002A

BOLT,6X16

92002-1100

$2.06

92049

SEAL-OIL,SC325210

92050-024

$8.17

92049A

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,91.6X3.4

92055-052

$9.89

92055A

RING-O,19.5MM

92055-077

$6.57

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16

112

BOLT-UPSET 6X14

112B0614

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

220A

SCREW PAN HEAD 6X40

220B0640

Unavailable

670

O RING,8MM

670B1508

$1.29

671

O RING,90MM

671B2590

$9.91

671A

O RING,25MM

671E2525

$21.60

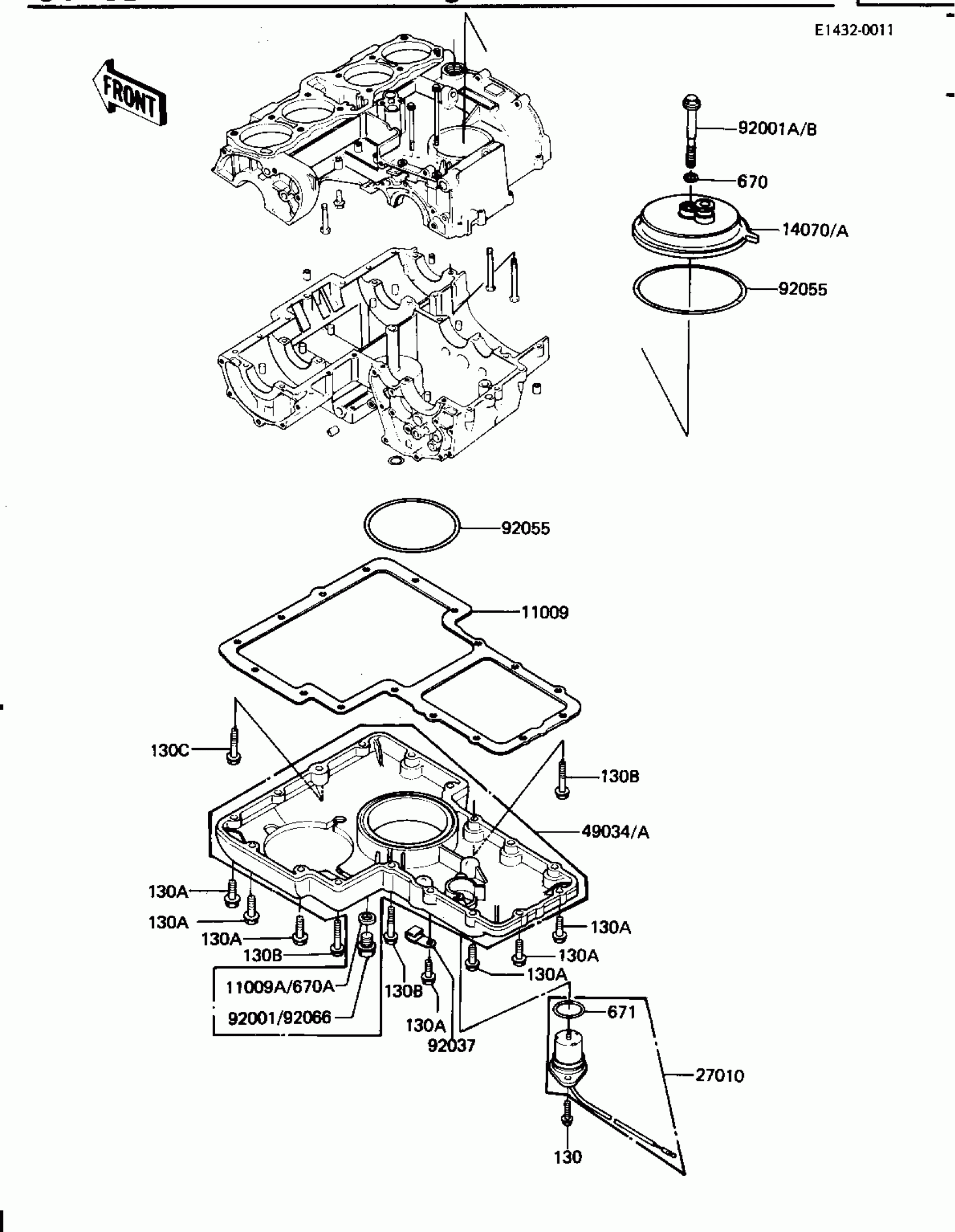

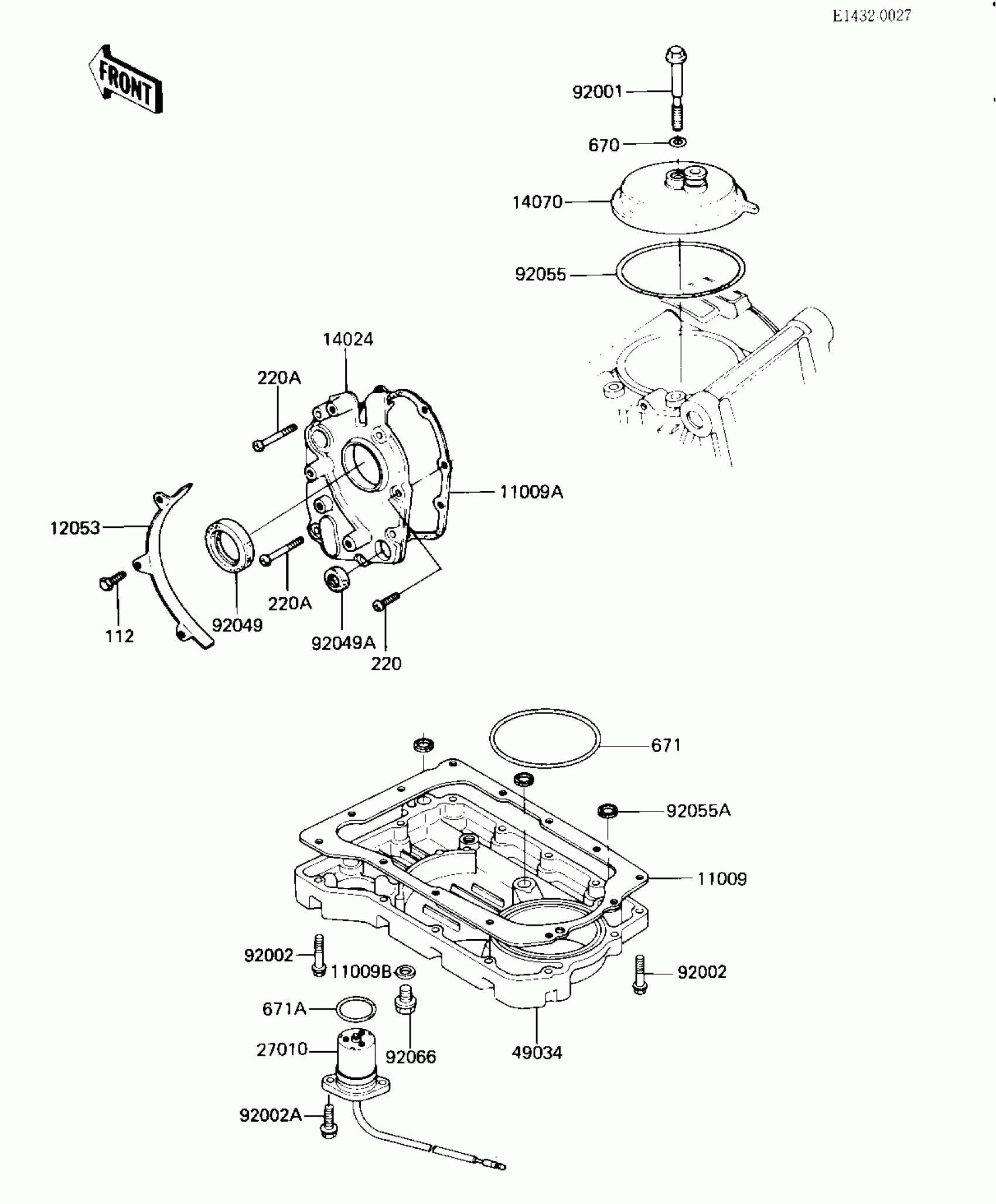

Kawasaki GPz BREATHER COVER/OIL PAN Diagram

GASKET,OIL PAN

GASKET,TRANSMISSION COVER

GASKET,12X22X2

GUIDE-CHAIN

COVER,TRANSMISSION

BODY-BREATHER,BLACK

SWITCH,OIL LEVEL

PAN-OIL

BOLT,8X72,BLACK

BOLT,6X25

BOLT,6X16

SEAL-OIL,SC325210

SEAL-OIL,TB13225.5

RING-O,91.6X3.4

RING-O,19.5MM

PLUG,OIL DRAIN,12X15

BOLT-UPSET 6X14

SCREW-PAN-CROS,6X20,WHITE

SCREW PAN HEAD 6X40

O RING,8MM

O RING,90MM

O RING,25MM
