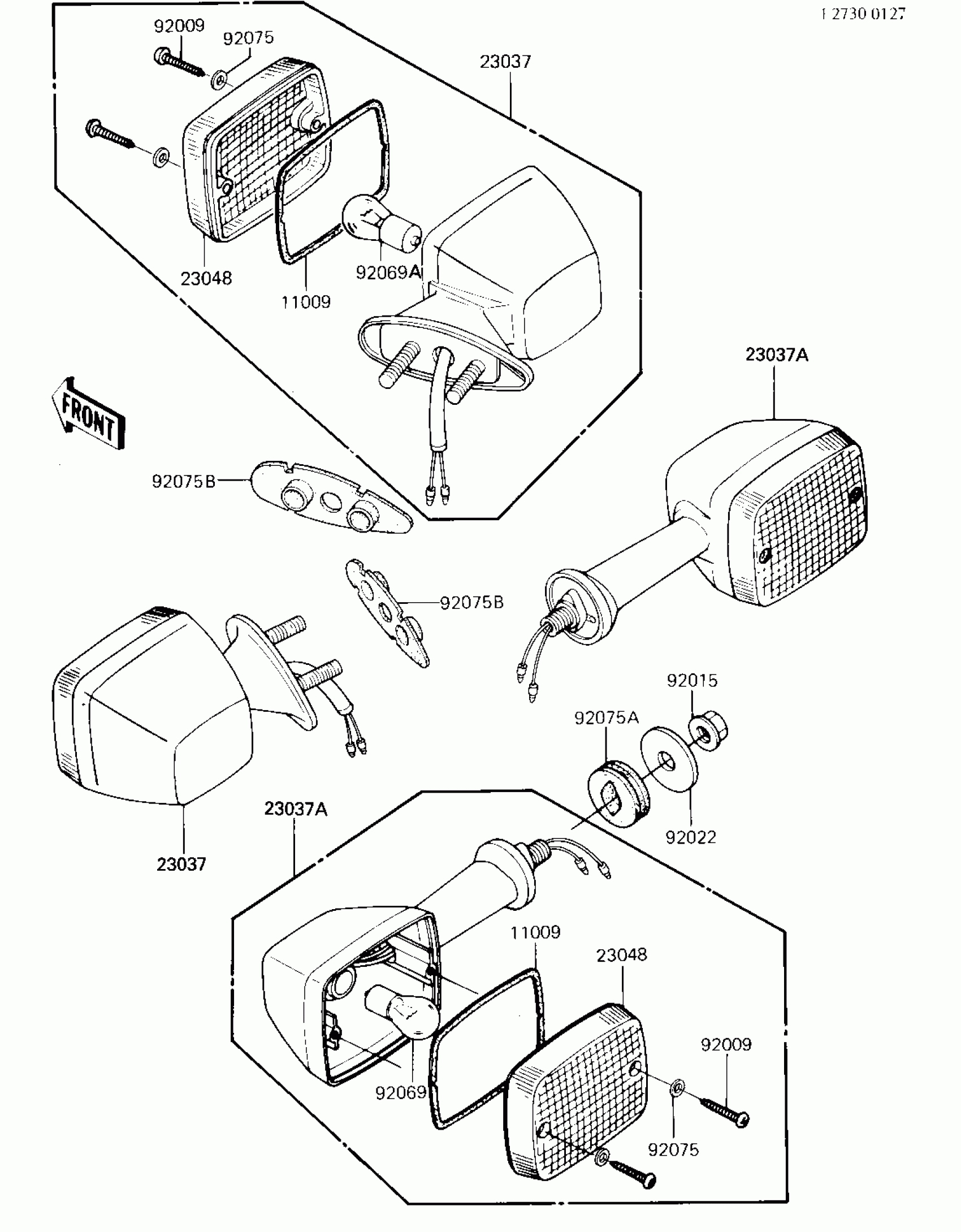

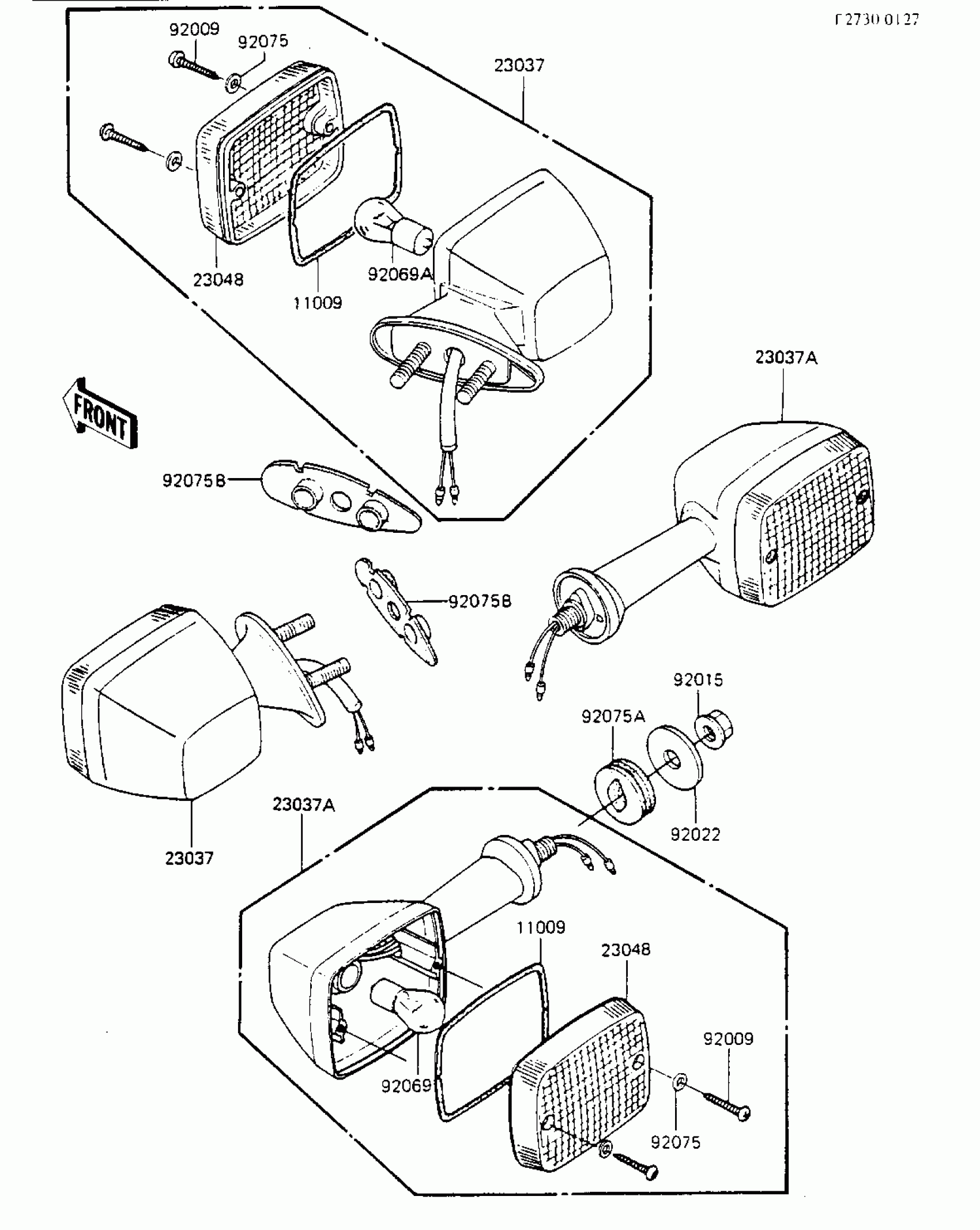

Kawasaki GPz 750 TURN SIGNALS Diagram

Description

Price

11009

GASKET,SIGNAL LAMP

11009-1150

$5.90

23037

LAMP-ASSY-SIGNAL,FR

23037-1150

Unavailable

23037A

LAMP-ASSY-SIGNAL,RR

23037-1151

Unavailable

23048

LENS-SIGNAL LAMP

23048-1019

$10.96

92009

SCREW,TAPPING,4X25

92009-1069

$3.92

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,10.5X37X1.6

92022-1246

$7.62

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92069A

BULB,12V 32/3CP(23/8W)

92069-060

$9.70

92075

WASHER,PLAIN,4MM

23058-002

$2.49

92075A

DAMPER,SIGNAL LAMP

92075-1391

$12.72

92075B

DAMPER,SIGNAL LAMP,FR

92075-1506

Unavailable
