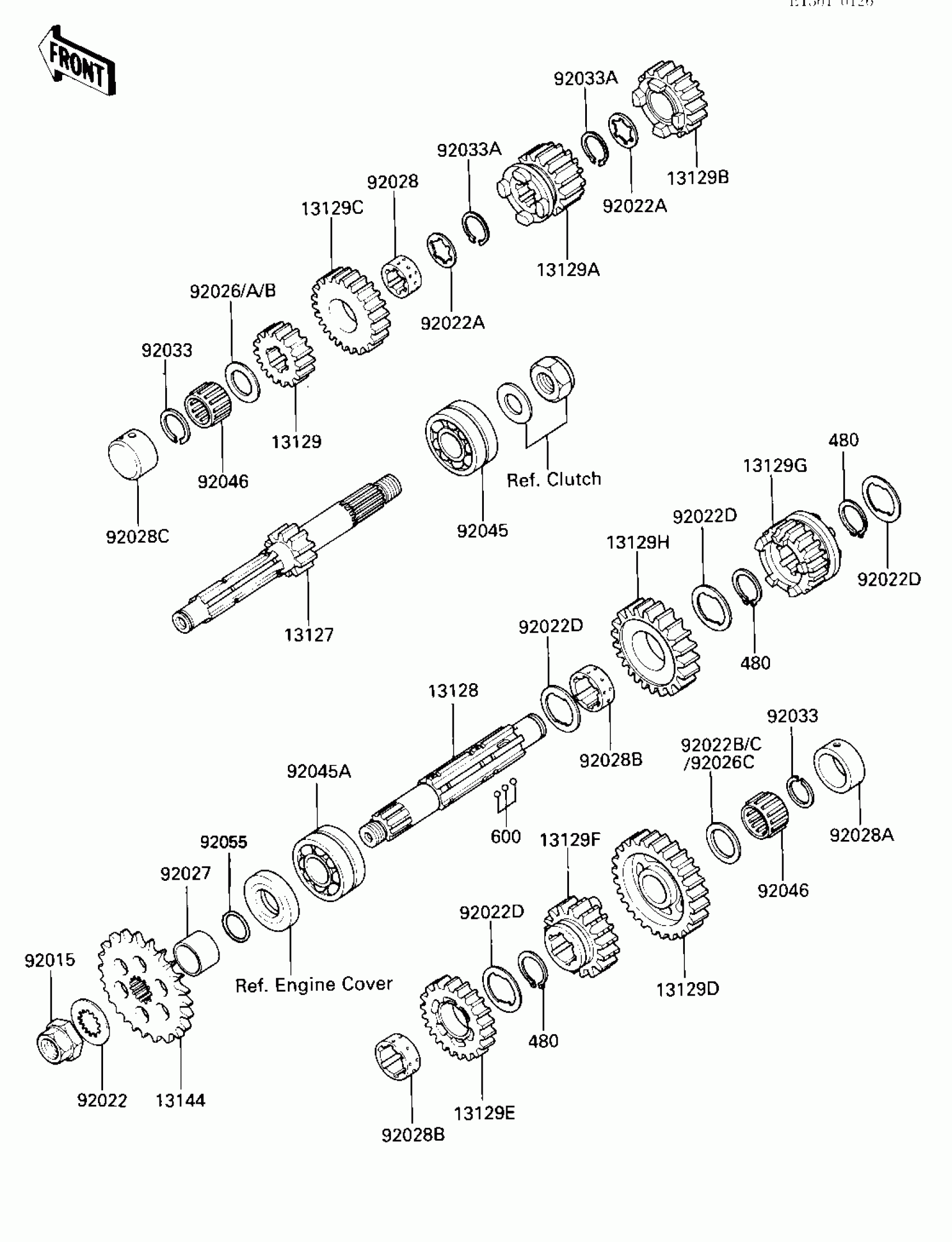

Kawasaki GPz 750 Turbo TRANSMISSION Diagram

SHAFT-TRANSMISSION IN

13127-1103

Unavailable

SHAFT-TRANSMISSION OU

13128-1102

Unavailable

GEAR,INPUT 2ND,17T

13129-1506

Unavailable

GEAR,INPUT 3RD,22T

13129-1507

Unavailable

GEAR,INPUT 4TH,22T

13129-1508

Unavailable

GEAR,INPUT TOP,24T

13129-1509

Unavailable

GEAR,OUTPUT LOW,32T

13129-1510

Unavailable

GEAR,OUTPUT 3RD,28T

13129-1512

Unavailable

GEAR,OUTPUT 4TH,23T

13129-1513

Unavailable

GEAR,OUTPUT TOP,20T

13129-1514

Unavailable

GEAR-OUTPUT 2ND,28T

13129-1574

Unavailable

SPROCKET-OUTPUT,15T

13144-1102

Unavailable

NUT,20MM

92015-1254

$14.90

WASHER

92200-1065

$6.63

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

WASHER,22.3X35X1.6

92022-212

Unavailable

WASHER,22.3X35X1.2

92022-213

Unavailable

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

SPACER,22X35.5X2.1

92026-1224

Unavailable

SPACER,22X35.5X2.4

92026-1225

$9.58

SPACER,22X35.5X1.8

92026-1226

Unavailable

SPACER,22X35.5X1.8

92026-1226

$9.58

COLLAR,25X32X29.5

92027-1665

$72.52

BUSHING,INPUT TOP GEAR

92028-1255

$40.34

BUSHING,30X38X16.6

92028-1256

$18.02

BUSHING,OUTPUT GEAR

92028-1257

$35.41

BUSHING,30X38X16.6

92028-1256

$18.02

RING-SNAP,20X25.5X1.2

92033-025

$4.96

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

BEARING-BALL,N4-25BGS

92045-1101

Unavailable

BEARING-BALL,V2-25BGS

92045-1102

$55.81

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

RING-O

92055-035

$5.00

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

BALL-STEEL,5/32

600A0500

$0.81
