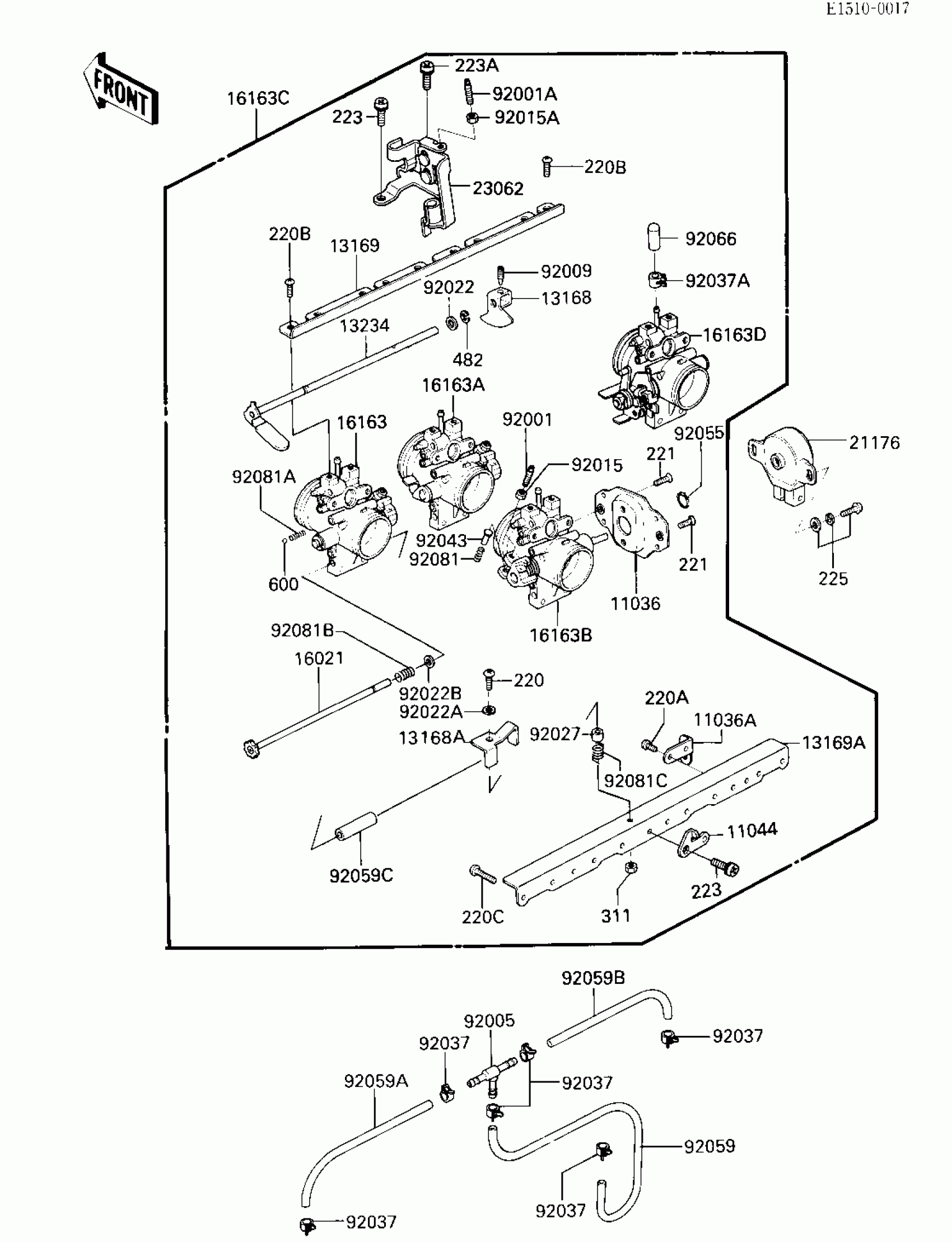

Kawasaki GPz 750 Turbo THROTTLE ASSY (ZX750-E2) Diagram

#

Description
Price

11036

BRACKET-A,THROTTLE SE

11036-1481

Unavailable

11036A

BRACKET-A,STAY LWR

11036-1491

Unavailable

11044

BRACKET

11044-1077

Unavailable

13168

LEVER,FAST IDLE

13168-1118

Unavailable

13168A

LEVER,IDLING LINK

13168-1218

Unavailable

13169

PLATE,THROTTLE STAY,U

13169-1521

Unavailable

13169A

PLATE,THROTTLE STAY,L

13169-1522

Unavailable

13234

SHAFT-COMP,FAST IDLE

13234-1008

Unavailable

16021

SCREW-THROTTLE STOP

16021-1044

$41.62

16163

THROTTLE-ASSY,LH,OUTS

16163-1059

$111.24

16163A

THROTTLE-ASSY,LH,INSI

16163-1060

$100.07

16163B

THROTTLE-ASSY,RH,OUTS

16163-1062

$84.73

16163C

THROTTLE-ASSY

16163-1074

$523.20

16163D

THROTTLE-ASSY

16163-1077

$128.72

21176

SENSOR,THROTTLE

21176-1004

Unavailable

23062

BRACKET-COMP,THROTTLE CAB (Can

23062-1058

Unavailable

92001

BOLT,ADJUSTING

92001-1447

$12.04

92001A

BOLT,THROTTLE BRACKET

92001-1909

$10.62

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,FAST IDLE LEVER

92009-1147

$9.12

92015

NUT,THROTTLE VALVE ADJUSTING

92015-1119

$5.59

92015A

NUT,THROTTLE BRACKET

92015-1348

$1.95

92022

WASHER,PLAIN,NYLON

16039-019

Unavailable

92022A

WASHER,PLAIN

16039-038

$5.88

92022B

WASHER,THROTTLE STOP

92022-1361

$3.02

92027

COLLAR,STEPPED

92027-1203

$9.91

92037

CLAMP,TUBE

92037-1461

$3.88

92037A

CLAMP

92037-1462

$1.19

92043

PIN,THROTTLE VALVE ADJUST

92043-1079

$6.40

92055

RING-O,THROTTLE SENSOR

92055-1226

Unavailable

92059

TUBE,4X9X290

92059-1043

$10.19

92059A

TUBE,VACUUM,LONG

92059-1162

$19.09

92059B

TUBE,4X9X50

92059-1193

$19.09

92059C

TUBE,ANTI-VIBRATION

92059-1371

$6.23

92066

PLUG,12X25

92068-006

$4.26

92081

SPRING,THROTTLE VALVE ADJUST

92081-1259

$5.31

92081A

SPRING,SHAFT STOP

92081-1260

$5.80

92081B

SPRING,THROTTLE STOP

92081-1538

$3.22

92081C

SPRING,IDLING LINK

92081-1539

$15.91

220

SCREW-PAN-CROS,4X18

220B0418

$1.80

220A

SCREW-PAN-CROSS

220C0506

$2.22

220B

SCREW-PAN-CROS,5X10

220C0510

$3.57

220C

SCREW-PAN-CROS,6X16,BLACK

220C0616

$4.15

221

SCREW-CSK-CROS,5X10

221B0510

$3.41

223

SCREW-PAN-WS-CROS

223B0508

$0.40

223A

SCREW-PAN-WS-CROS,5X12

223B0512

$1.79

225

SCREW-PAN-WSP-CROS

225B0510

$1.39

311

NUT-HEX

311B0400

$0.52

482

CIRCLIP-TYPE-E,4MM

482L4000

$0.67

600

BALL,STEEL,1/8"

600A0400

$1.40
