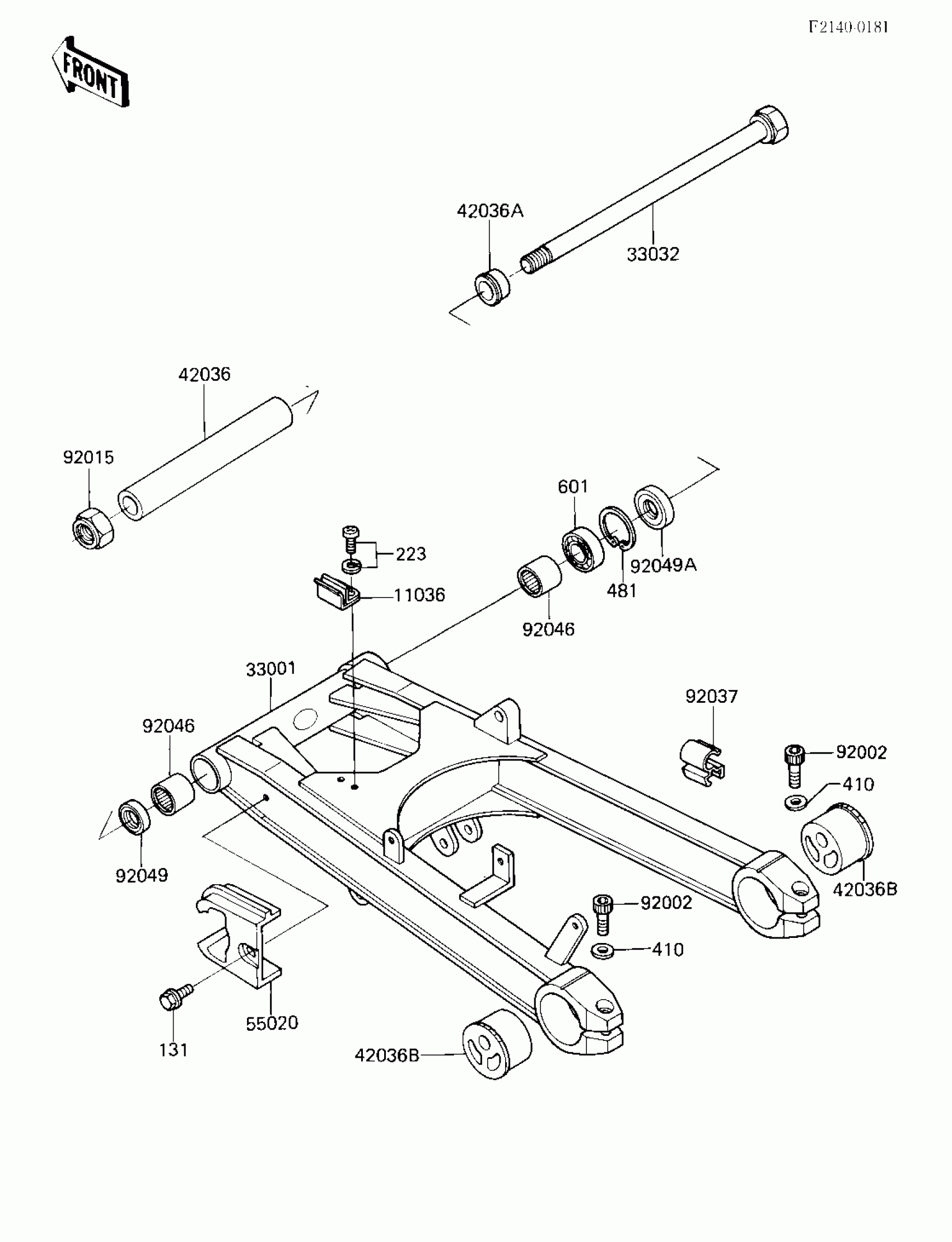

Kawasaki GPz 750 Turbo SWING ARM Diagram

Description

Price

11036

BRACKET-A,CAIN CASE

11036-1868

Unavailable

33001

ARM-COMP-SWING,G.SILV

33001-1204-F2

$588.42

33032

SHAFT-SWING ARM

33032-1040

$101.72

42036

SLEEVE,17.1X25X212

42036-1080

Unavailable

42036A

SLEEVE,17.1X24X11.5

42036-1081

Unavailable

42036B

SLEEVE,AXLE,RR

42036-1082

$84.06

55020

GUARD,CHAIN

55020-1153

Unavailable

92002

BOLT,SOCKET,10X40

92002-1452

$7.22

92015

NUT,LOCK,16MM,BLACK

92015-1207

Unavailable

92037

CLAMP,BRAKE HOSE

92037-1392

Unavailable

92046

BEARING-NEEDLE,BHTM2530-1

92046-1035

$26.30

92049

SEAL-OIL,MH25334

92049-1060

$8.86

92049A

SEAL-OIL,AG1258AO

92049-1110

$9.28

131

BOLT-FLANGED

131G0516

$0.85

223

SCREW-PAN-WS-CROS

223X0508

$2.53

410

W-PLAIN-S

410E1000

$0.59

481

RING-SNAP,40MM

92033-1040

$5.90

601

BEARING-BALL,#6203

601A6203

$14.12
