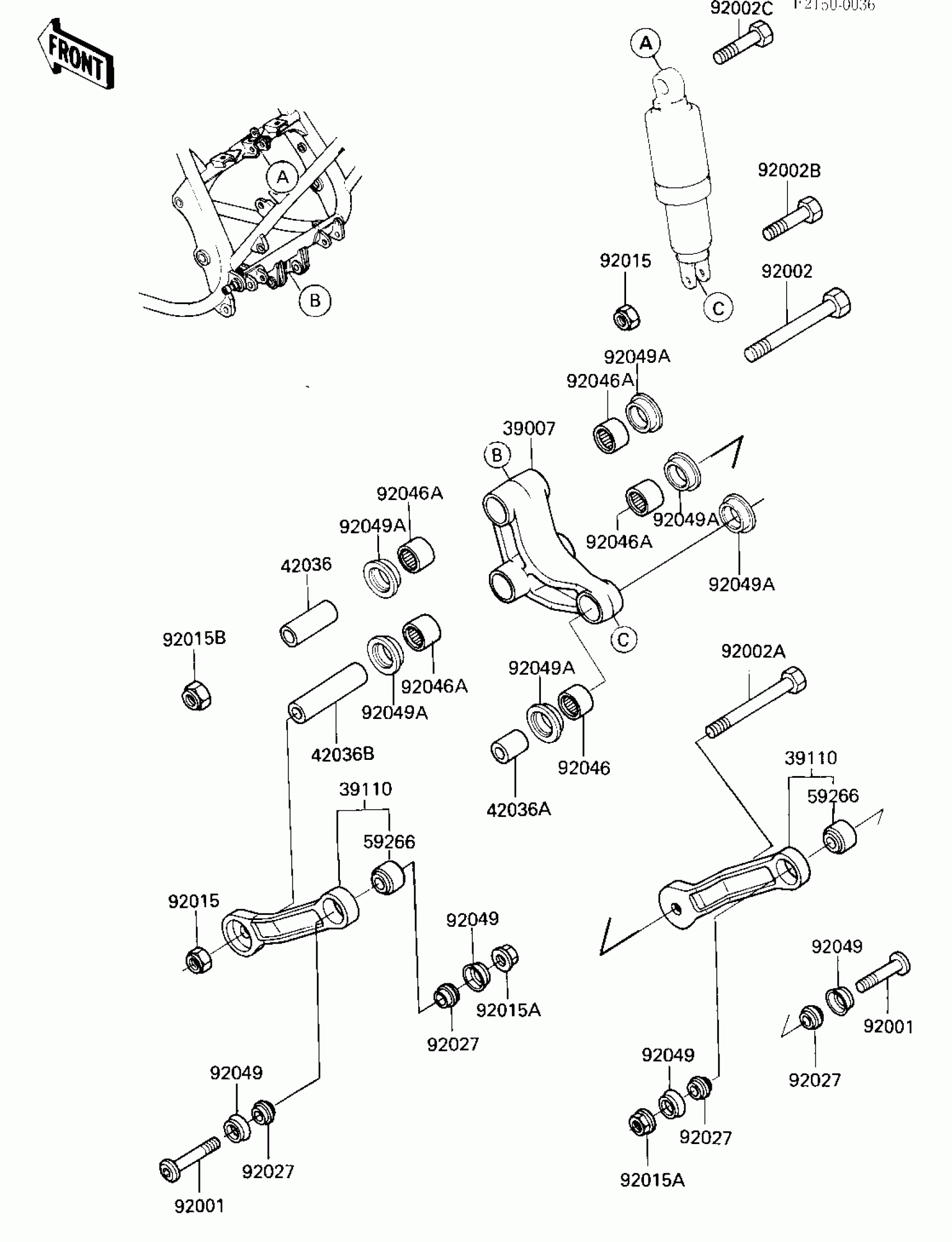

Kawasaki GPz 750 Turbo REAR SUSPENSION Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1051

$185.11

39110

ROD-ASSY-TIE

39110-1052

$142.10

42036

SLEEVE,14.1X20X55

42036-1084

Unavailable

42036A

SLEEVE,12.1X20X28.5

42036-1101

$20.65

42036B

SLEEVE,12.1X20X74

42036-1102

$28.72

59266

JOINT-BALL

59266-1051

Unavailable

92001

BOLT,10X45

92150-1402

$12.46

92002

BOLT,14X108

92002-1128

$17.84

92002A

BOLT,12X106

92002-1129

$13.71

92002B

BOLT,12X55

92002-1130

$10.65

92002C

BOLT,10X50

92002-1131

Unavailable

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92015A

NUT,OMM

92015-1392

$5.27

92015B

NUT-LOCK,14MM

92019-011

Unavailable

92027

COLLAR,L=5.5

92027-1392

Unavailable

92046

BEARING-NEEDLE,HK2016

92046-1054

$20.59

92046A

BEARING-NEEDLE,FJ-202

92046-1061

Unavailable

92049

SEAL-OIL

92049-1083

$23.53

92049A

SEAL-OIL,MHA20265.2F

92049-1154

Unavailable
