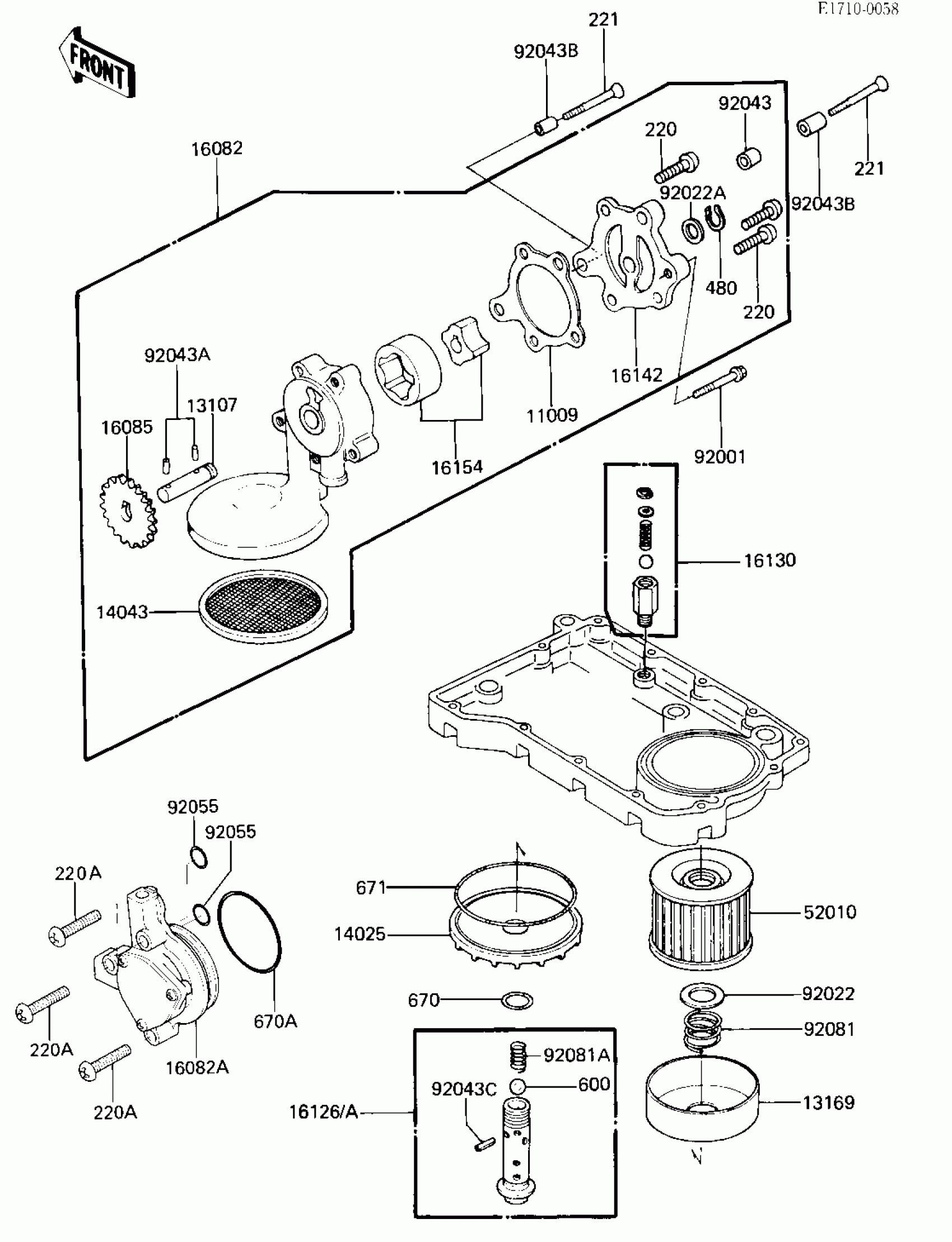

Kawasaki GPz 750 Turbo OIL PUMP/OIL FILTER Diagram

#

Description
Price

11009

GASKET,OIL PUMP COVER

16145-004

$3.32

13107

SHAFT,OIL PUMP

16086-004

Unavailable

13169

PLATE,OIL FILTER

13169-1110

$7.62

14025

COVER,OIL FILTER,F.BLACK

14025-1422

$44.52

14043

FILTER,OIL PUMP

16111-004

$44.36

16082

PUMP-ASSY-OIL

16082-064

Unavailable

16082A

PUMP-ASSY-OIL,TURBO

16082-1051

Unavailable

16085

GEAR,OIL PUMP,57T

16085-025

Unavailable

16126A

VALVE,OIL FILTER

16126-1108

$41.98

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP

16142-005

$38.50

16154

ROTOR-PUMP

16154-003

$88.29

52010

ELEMENT-OIL FILTER

16099-003

$12.20

92001

BOLT,FLANGED,6X45

92001-165

$5.24

92022

WASHER,20.5X30X1

92022-1012

$4.34

92022A

WASHER,11.2X15X1

92022-311

$3.92

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92043A

PIN,DOWEL,4X12.8

92042-041

$6.57

92043B

PIN,DOWEL,8X28

92042-050

$4.31

92043C

PIN,SPRING,2X20

92043-111

$6.27

92055

RING-O,OD=13

92055-074

$8.58

92081

SPRING-CHANG LEVER

92081-101

Unavailable

92081A

SPRING

92081-109

$11.29

220

SCREW PAN HEAD 6X22

220B0622

$3.71

220A

SCREW PAN HEAD 6X30

220B0630

$3.41

221

SCREW-CSK-CROS,6X55

221B0655

$4.30

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

600

BALL-STEEL,3/8"

600A1200

$1.56

670

O RING,16MM

670B2016

$1.36

670A

O RING,46MM

670B3046

$5.96

671

O RING,90MM

671B2590

$9.91
