MUFFLERS/TURBOCHARGER

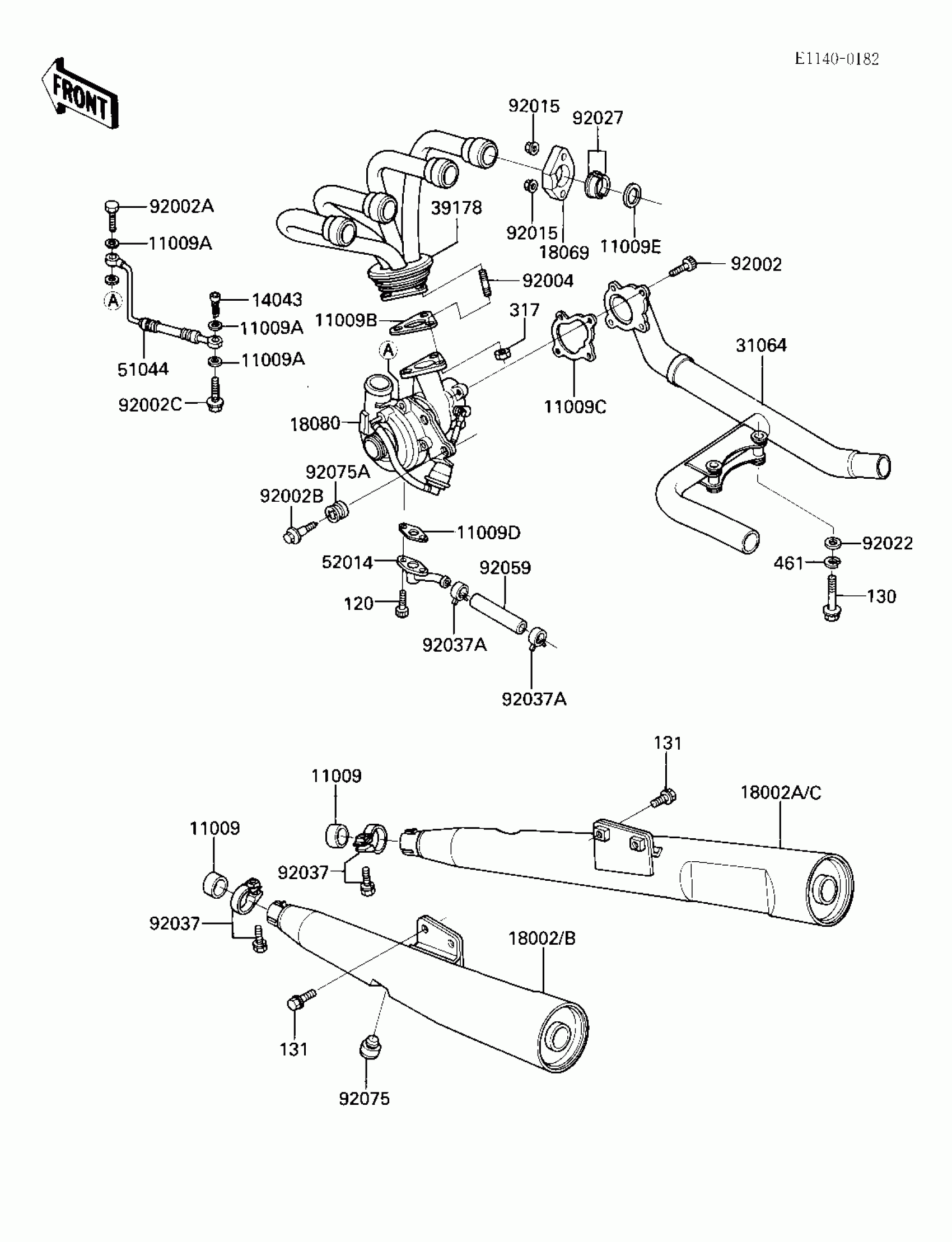

Kawasaki GPz 750 Turbo MUFFLERS/TURBOCHARGER Diagram
#
11009
GASKET,MANIFOLD EXHAUST
11060-1068
$28.82
11009A
GASKET,10X14.5X1.5
11009-1105
$6.51
11009B
GASKET,EXHAUST MANIFO
11009-1353
Unavailable
11009C
GASKET,PIPE COMP
11009-1354
Unavailable
11009D
GASKET,ELBOW
11009-1358
Unavailable
11009E
GASKET,EXHAUST PIPE H
11009-1408
Unavailable
14043
FILTER,OIL
14043-1052
$29.68
18002
BODY-COMP-MUFFLER,LH
18002-1508
Unavailable
18002A
CA,USBODY-COMP-MUFFLER,RH
18002-1509
Unavailable
18002B
CNBODY-COMP-MUFFLER,LH (Canada)
18002-1510
Unavailable
18002C
CNBODY-COMP-MUFFLER,RH (Canada)
18002-1511
Unavailable
18069
HOLDER-EXHAUST PIPE,F
18069-1029
Unavailable
18080
TURBOCHARGER-ASSY
18080-1052
$2,785.64
31064
PIPE-COMP
31064-1055
Unavailable
39178
MANIFOLD-COMP-EXHAUST
39178-1073
$508.21
51044
TUBE-ASSY
51044-1051
Unavailable
52014
ELBOW
52014-1051
$50.72
92002
BOLT,SOCKET,8X16
92002-1146
Unavailable
92002A
BOLT,BANJO,10X26
92002-1147
$10.47
92002B
BOLT
92002-1148
Unavailable
92002C
BOLT,10X35
92002-1172
Unavailable
92004
STUD,8X18
92004-1130
$12.19
92015
NUT,LOCK,8MM
92015-1380
$4.34
92022
WASHER,10.5X26X2.3,BLACK
92022-1396
$3.21
92027
COLLAR,L=14.5,BLACK
92027-1456
Unavailable
92037
CLAMP,MUFFLER,BLACK
92037-1270
$20.77
92037A
CLAMP,HOSE CLIP
92037-1460
$10.81
92059
TUBE,15X22.4X95
92059-1360
$27.78
92075
DAMPER
92075-015
$5.00
92075A
DAMPER
92075-1563
Unavailable
120
BOLT-SOCKET,6X12
120S0612
$2.33
130
BOLT-FLANGED,8X55
130J0855
$3.89
131
BOLT-FLANGED,8X25,BLACK
131J0825
Unavailable
317
NUT
317R0800
$1.96
461
WASHER-SPRING,8MM,BLACK
461K0800
$2.33
