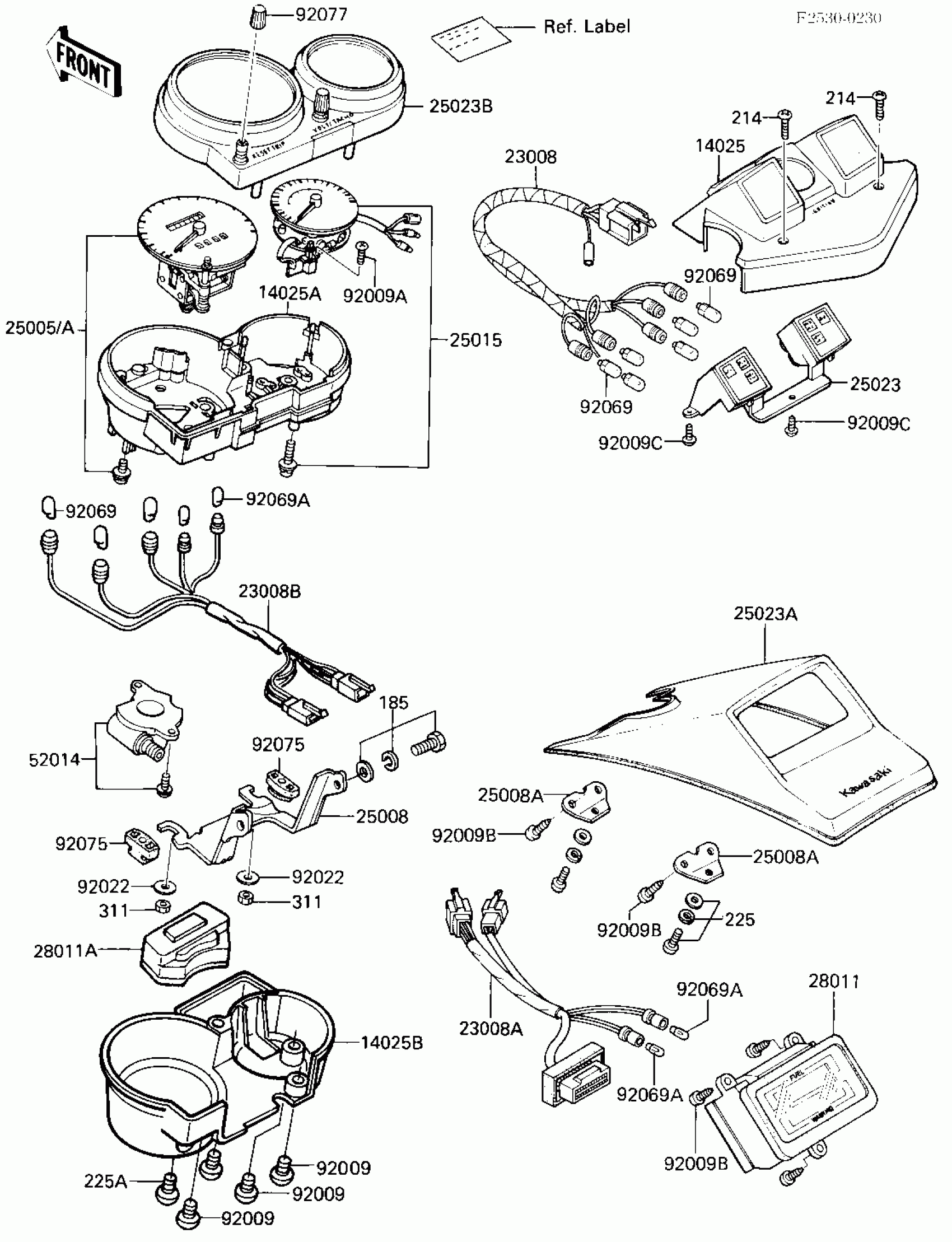

Kawasaki GPz 750 Turbo METERS Diagram

#

Description
Price

14025

COVER,PILOT BOX

14025-1693

Unavailable

14025A

COVER,METER HOUSING

14025-1819

Unavailable

14025B

COVER,METER CASE,LWR

14025-1820

Unavailable

23008

SOCKET-ASSY,LAMP ASSY

23008-1191

$74.28

23008A

SOCKET-ASSY,FUEL

23008-1201

Unavailable

23008B

SOCKET-ASSY,METER

23008-1217

$41.30

25005

SPEEDOMETER,MPH

25005-1215

$350.38

25005A

SPEEDOMETER,KM/H (Canada)

25005-1263

Unavailable

25008

BRACKET-METER

25008-1060

Unavailable

25008A

BRACKET-METER,FUEL TA

25008-1103

Unavailable

25015

TACHOMETER,X1000R/MIN

25015-1210

$559.32

25023

COVER-METER CASE,LAMP

25023-1057

$145.21

25023A

COVER-METER CASE,FUEL

25023-1102

$149.68

25023B

COVER-METER CASE,UPP

25023-1114

Unavailable

28011

METER,FUEL&WARNING

28011-1054

$516.58

28011A

METER

28011-1059

$939.02

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,4X16,BLACK

92009-1158

$3.65

92009A

SCREW,2X6,BLACK

92009-1172

$2.61

92009B

SCREW,TAPPING,4X12

92009-1254

$4.11

92009C

SCREW,TAPPING,3X12

92009-1255

$3.65

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3W,T7

92069-1020

$6.52

92069A

BULB,12V1.4W T-5

92069-1051

Unavailable

92075

DAMPER,METER BRACKET

92075-1495

$12.79

92077

KNOB,RESET TRIP

92077-1017

$24.21

185

BOLT-UPSET-WSP-SMALL,8X16

185C0816

$4.62

214

SCREW-PAN+-

214C0430

$1.13

225

SCREW-PAN-WSP-CROS

225B0514

$2.91

225A

SCREW-PAN-WSP-CROS

225C0410

$3.88

311

NUT-HEX

311B0500

$0.47
