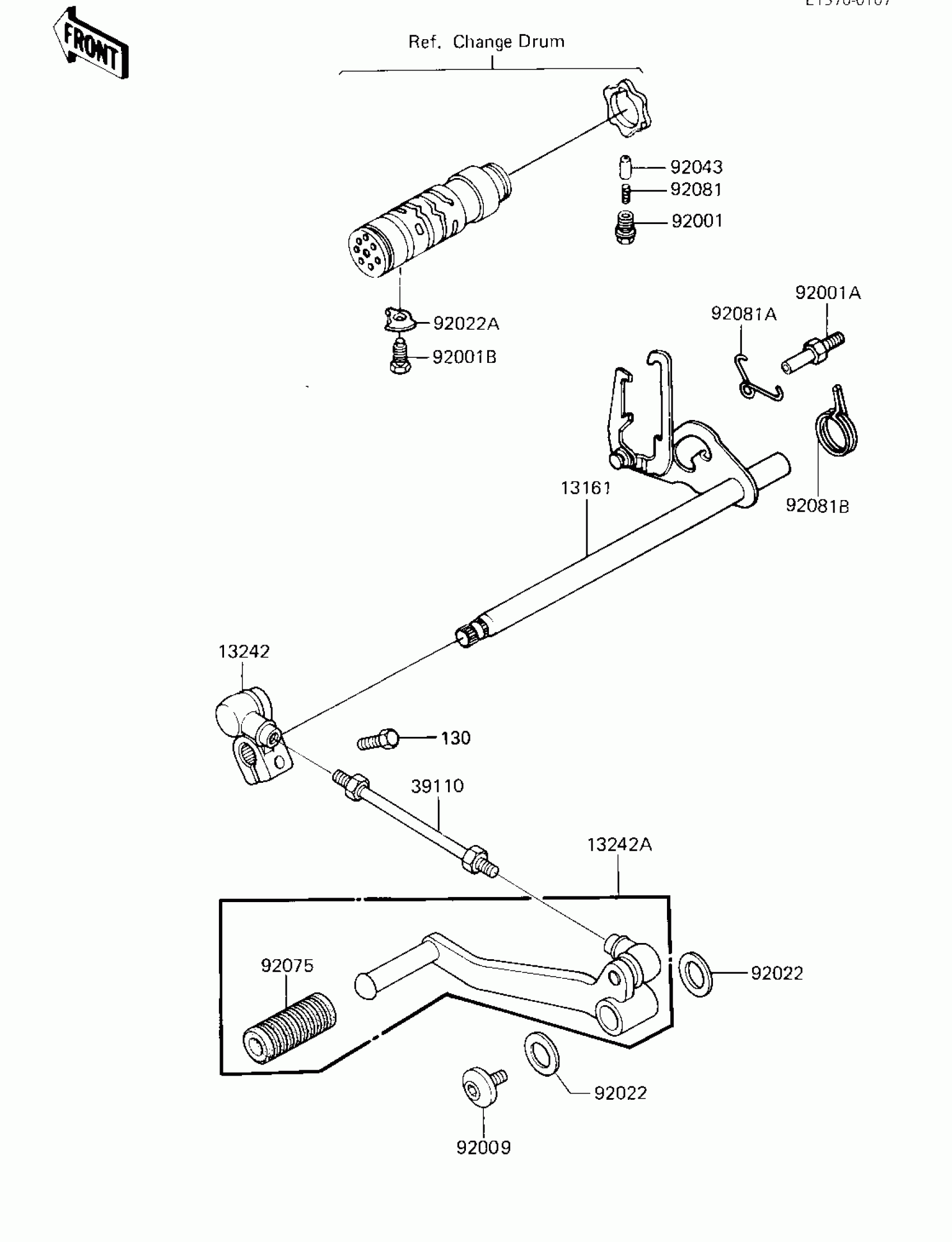

Kawasaki GPz 750 Turbo GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-042

$123.33

13242

LEVER-ASSY-CHANGE

13242-1098

Unavailable

13242A

LEVER-ASSY-CHANGE,PED

13242-1155

Unavailable

39110

ROD-ASSY-TIE,CHANGE LEVER

39110-1015

$13.08

92001

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92001A

BOLT,RETURN SPRING

92001-1401

$4.69

92001B

BOLT,10X26

92001-174

$8.19

92009

SCREW,5X10

92009-1253

Unavailable

92022

WASHER,14.5X21X1.2

92022-1451

Unavailable

92022A

WASHER,LOCK,10MM

92024-074

$4.38

92043

92043-076

$11.71

92075

DAMPER,CHANGE PEDAL

13157-004

Unavailable

92081

SPRING

92081-112

$6.16

92081A

SPRING

92083-018

$9.80

92081B

SPRING,CHG PEDL RTRN

92083-028

Unavailable

130

BOLT-FLANGED,6X20

130S0620

$6.86

Kawasaki GPz 750 Turbo GEAR CHANGE MECHANISM Diagram

LEVER-COMP-CHANGE SHAFT

LEVER-ASSY-CHANGE

LEVER-ASSY-CHANGE,PED

ROD-ASSY-TIE,CHANGE LEVER

BOLT,NEUTRAL POSITION

BOLT,RETURN SPRING

BOLT,10X26

SCREW,5X10

WASHER,14.5X21X1.2

WASHER,LOCK,10MM

PIN

DAMPER,CHANGE PEDAL

SPRING

SPRING

SPRING,CHG PEDL RTRN

BOLT-FLANGED,6X20
