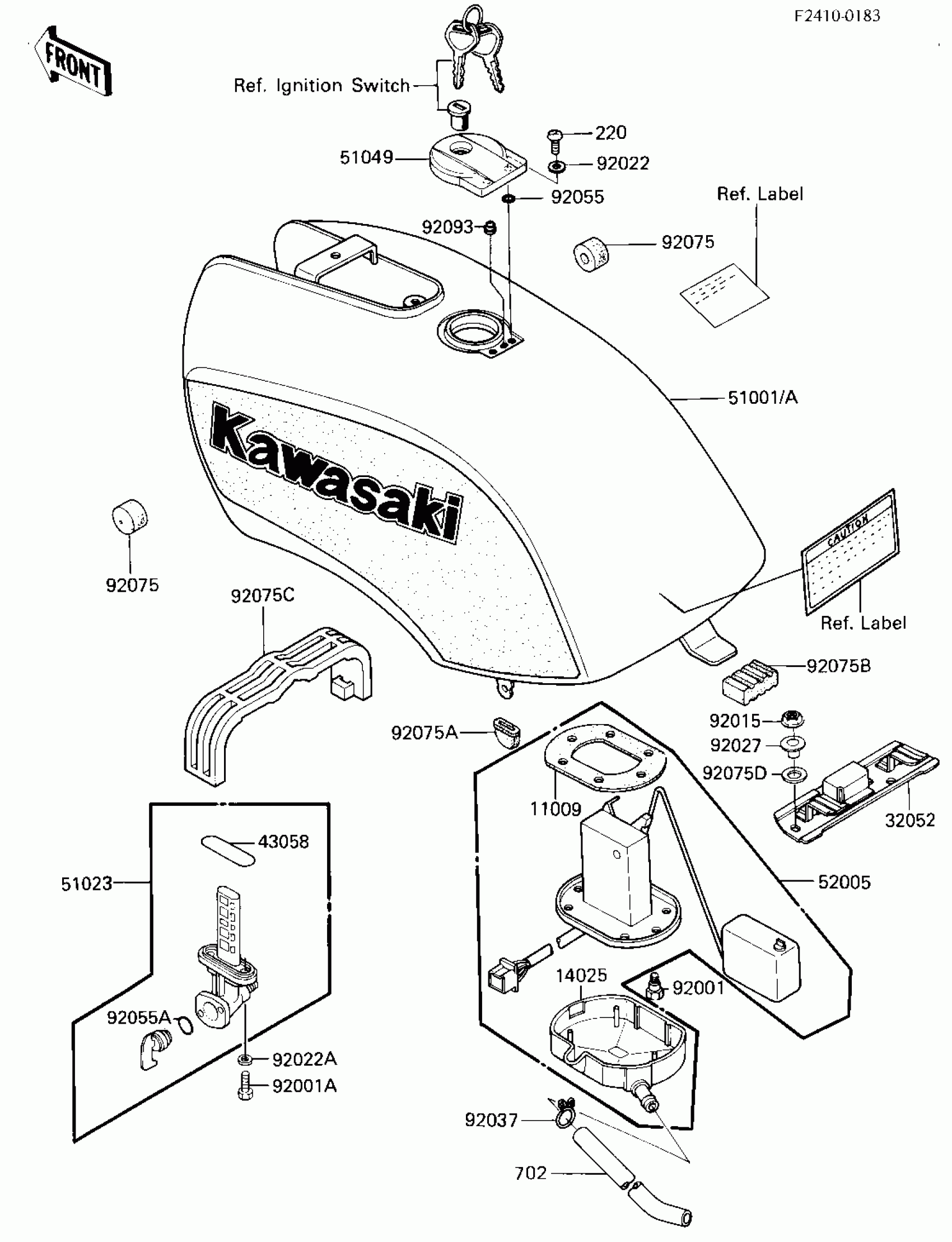

Kawasaki GPz 750 Turbo FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

14025

COVER,FUEL GAUGE

14024-1434

$36.06

32052

BRACKET-TANK,RR

32052-1180

$42.40

43058

RING,TAP FLANGED

51039-010

$5.77

51001

TANK-COMP-FUEL,EBONY

51002-5117-H8

$1,497.09

51001A

TANK-FUEL,EBONY

51002-5118-H8

$441.02

51023

TAP-ASSY

51023-1054

Unavailable

51049

CAP-TANK,FUEL

51049-1097

$141.18

52005

GAUGE,FUEL

52005-1054

Unavailable

92001

BOLT,FUEL GAUGE

92001-1069

$5.53

92001A

BOLT,6X20

92001-1091

$2.99

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,5.3X10X0.8

92022-1038

$2.76

92022A

WASHER-PLAIN

92022-183

$2.99

92027

COLLAR,L=7.4

92027-1848

$3.57

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-1023

$2.99

92055A

RING-O

92055-1036

Unavailable

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER

92075-1445

$6.46

92075B

DAMPER,FUEL TANK,RR

92075-1447

Unavailable

92075C

DAMPER,FUEL TANK

92075-1556

$40.19

92075D

DAMPER

92075-1564

$4.15

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

702

TUBE-BREATHER (BULK)

702A071000

$10.11
