1985 Kawasaki GPZ 750 Turbo Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 1985 Kawasaki GPZ 750 Turbo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

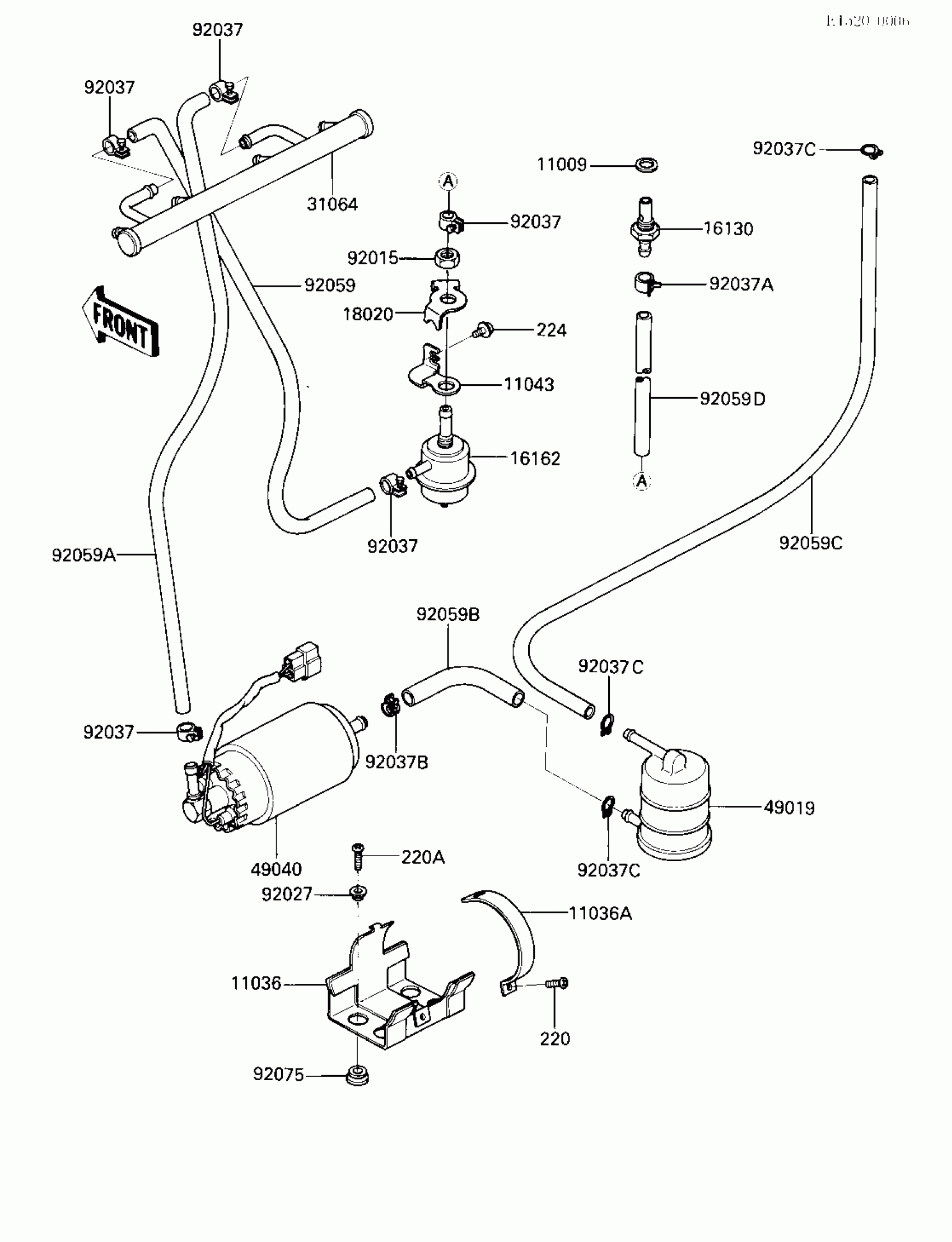

1985 Kawasaki GPZ 750 Turbo Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RELIEF VALVE

11009-1182

1
Out of stock

11036

BRACKET-A,FUEL PUMP,L

11036-1632

1
Out of stock

11036A

BRACKET-A,FUEL PUMP,U

11036-1633

1
Out of stock

11043

BRACKET-B,FUEL REGULA

11043-1230

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1002

1
Out of stock

16162

REGULATOR-FUEL

16162-1051

1
Out of stock

18020

BAFFLE,FUEL REGULATOR

18020-1125

1
Out of stock

31064

PIPE-COMP,FUEL

31064-1005

1
Out of stock

49019

FILTER-FUEL

49019-1001

1
Out of stock

49040

PUMP-FUEL

49040-1051

1
Out of stock

92015

NUT,12MM

92015-1395

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92037

CLAMP

92037-1178

1
Out of stock

92037A

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92037B

CLAMP,FUEL TUBE,ID-15

92037-1365

1
Out of stock

92037C

CLAMP,12.5MM

92037-1271

1
Out of stock

92059

TUBE,7.5X13.5X272

92059-1121

1
Out of stock

92059A

TUBE,FUEL PUMP,L=330

92059-1176

1
Out of stock

92059B

TUBE,FILTER-PUMP

92059-1361

1
Out of stock

92059C

TUBE,7.5X13.5X470

92059-1362

1
Out of stock

92059D

TUBE,7.5X13.5X190

92059-1363

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

220

SCREW-PAN-CROS

220B0514

1
Out of stock

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0508

1
Out of stock
