FRONT FORK

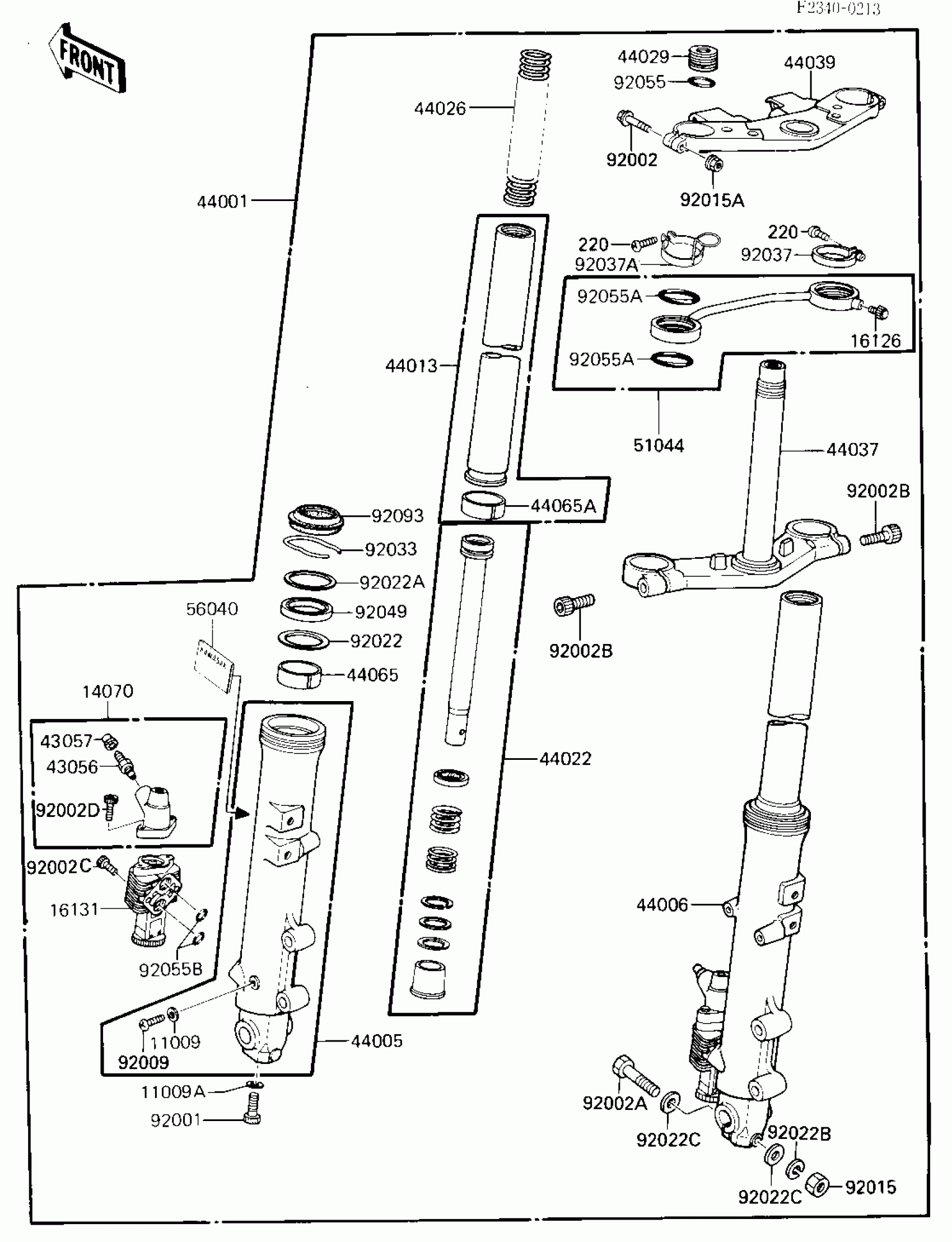

Kawasaki GPz 750 Turbo FRONT FORK Diagram
#
11009
GASKET,FORK DRAIN PLUG
44045-002
$5.18
11009A
GASKET
44045-057
$4.86
14070
BODY-BREATHER,FORK
14070-1055
Unavailable
16126
VALVE,AIR
16126-1052
$35.06
16131
BODY-VALVE,RELIEF
16131-1054
Unavailable
43056
BREATHER
43056-003
$24.57
43057
CAP-BREATHER
43057-003
$2.45
44001
FORK-FRONT
44001-1504
$1,351.54
44005
PIPE-LEFT FORK OUTER
44005-1130
$282.74
44006
PIPE-RIGHT FORK OUTER
44006-1130
$454.65
44013
PIPE-FORK INNER
44013-1208
$392.23
44022
CYLINDER-FORK
44022-1157
$86.45
44026
SPRING-FRONT FORK
44026-1263
$54.10
44029
SEAT-FORK SPRING
44029-1035
$24.81
44037
HOLDER-FORK UNDER
44037-1154
$220.11
44039
HOLDER-FORK UPPER
44039-1073
$317.69
44065
BUSHING-FRONT FORK
44065-1051
$23.16
44065A
BUSHING-FRONT FORK
44065-1058
$35.46
51044
TUBE-ASSY,AIR,FORK
51044-1027
Unavailable
56040
LABEL-WARNING
56040-1030
Unavailable
92001
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
92002
BOLT,FLANGED,8X55
92002-1158
$9.23
92002A
BOLT,8X60
92002-1163
Unavailable
92002B
BOLT,SOCKET,12X30
92002-1164
$13.49
92002C
BOLT,SOCKET,6X16
92002-1166
$7.21
92002D
BOLT,SOCKET,5X12
92002-1289
$5.48
92009
SCREW,4X8
92009-1324
$1.67
92015
NUT,8MM
92015-1400
Unavailable
92015A
NUT,FLANGED,8MM
92015-1408
$5.38
92022
WASHER,FORK OUTER PIPE,LWR
92022-1455
$7.69
92022A
WASHER,FORK OUTER PIP
92022-1524
Unavailable
92002B
BOLT,THROTTLE STOP SCREW
92002-1552
$16.69
92002C
WASHER,PLAIN,8MM
92022-1554
$4.86
92033
RING-SNAP,FORK
92033-1047
$6.46
92037
CLAMP,FRONT FORK
92037-1454
Unavailable
92037A
CLAMP,LH
92037-1499
Unavailable
92049
SEAL-OIL,FORK OUTER T
92049-1372
$23.82
92055
RING-O,FORK SPRING SE
92055-1132
$6.56
92055A
RING-O,TUBE ASSY
92055-1164
Unavailable
92055B
RING-O,ANTI-DIVE UNIT
92055-1201
$3.23
92093
SEAL,FORK OUTER TUBE
92093-1314
$25.96
220
SCREW-PAN-CROS
220C0412
$1.52
