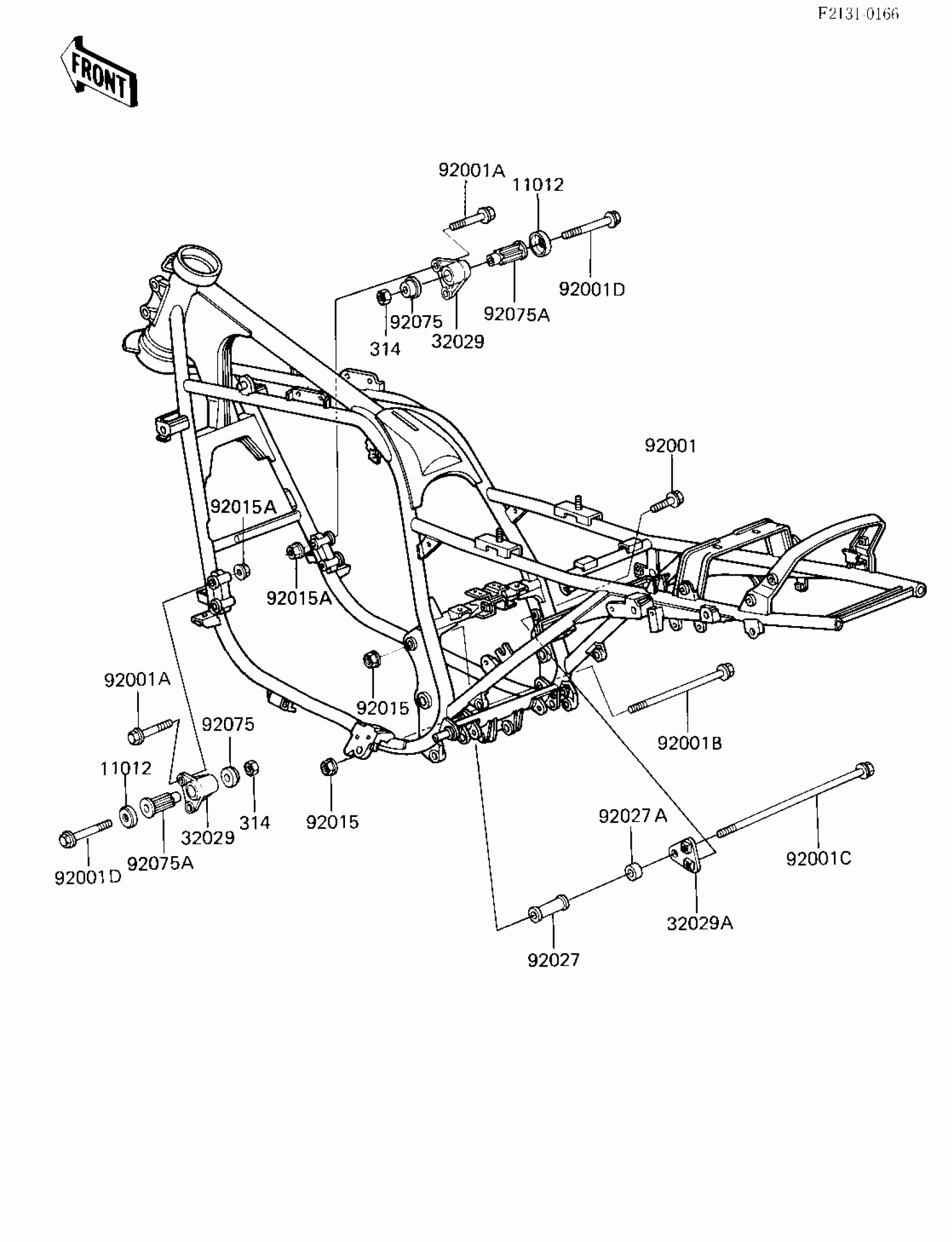

Kawasaki GPz 750 Turbo FRAME FITTINGS Diagram

Description

Price

11012

CAP,REED VALVE,LH,BLA

11012-1226

Unavailable

32029

BRACKET-ENGINE,FR

32029-1254

$40.87

32029A

BRACKET-ENGINE,RR

32029-1345

$17.72

92001

BOLT,FLANGED,8X45

92001-1613

$5.24

92001A

BOLT,FLANGED,8X60,BLACK

92001-1615

$6.88

92001B

BOLT,FLANGED,10X180

92001-1621

$24.02

92001C

BOLT,10X290,BLACK

92001-1749

Unavailable

92001D

BOLT,FLANGED,10X115,BLACK

92001-1780

$14.36

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92015A

NUT,FLANGED,8MM

92015-1408

$5.38

92027

COLLAR,L=56.8

92027-1570

$23.26

92027A

COLLAR,11X26X12.3

92027-1571

$11.12

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$17.60

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$30.82

314

NUT-HEX-FINE,10MM,BLACK

314C1000

Unavailable
