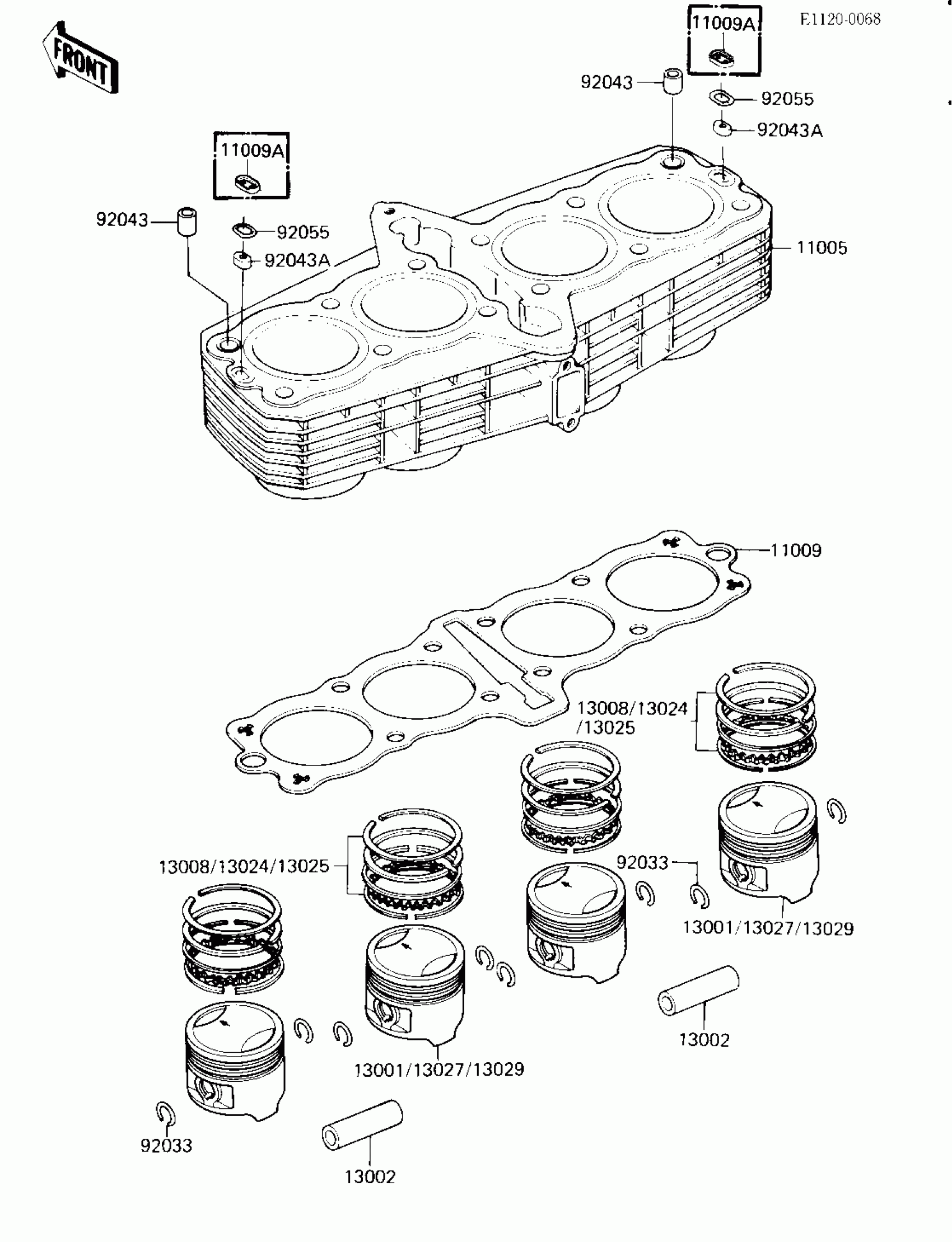

Kawasaki GPz 750 Turbo CYLINDER/PISTONS Diagram

Description

Price

11005

CYLINDER-ENGINE,F.BLA

11005-1306

Unavailable

11009

GASKET,CYLINDER BASE

11060-1144

Unavailable

11009A

GASKET,OIL LINE

11009-1419

Unavailable

13001

PISTON-ENGINE,STD

13001-1165

Unavailable

13002

PIN-PISTON

13002-1053

$22.42

13008

RING-SET-PISTON,STD

13008-5046

$72.62

13024

RING-SET-PISTON LL,O/S 1.00

13024-5022

$72.62

13025

RING-SET-PISTON L,O/S 0.50

13025-5022

$72.62

13027

PISTON-ENGINE LL,O/S

13027-1113

Unavailable

13029

PISTON-ENGINE L,O/S 0

13029-1112

Unavailable

92033

RING-SNAP,PISTON PIN

92033-1161

$3.89

92043

PIN,11X14X12.3

92043-1266

$1.08
