Description

Price

13081

CLUTCH-ASSY

13081-1167

Unavailable

13087

HUB-CLUTCH

13087-043

$154.96

13088

PLATE-FRICTION

13088-1052

$20.78

13089

PLATE,CLUTCH STEEL

13089-022

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1108

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1024

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1014

$80.77

46102

ROD,CLUTCH,6T

46102-1061

$27.97

92001

BOLT,FLANGED,6X18

92001-1066

$6.22

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92025

SHIM,15.3X27.5X1.20

92025-1022

Unavailable

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92026A

SPACER,25.3X42X2.3

92026-1201

Unavailable

92028

BUSHING,25X32X23.6

92028-178

$25.03

92046

BEARING-NEEDLE,KTV323723

92046-028

$21.24

92046A

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92081

SPRING,CLUTCH

92081-1176

$10.64

92122

ROLLER,10X12

92122-1019

$6.16

482

CIRCLIP-TYPE-E,9MM

482K9000

$4.39

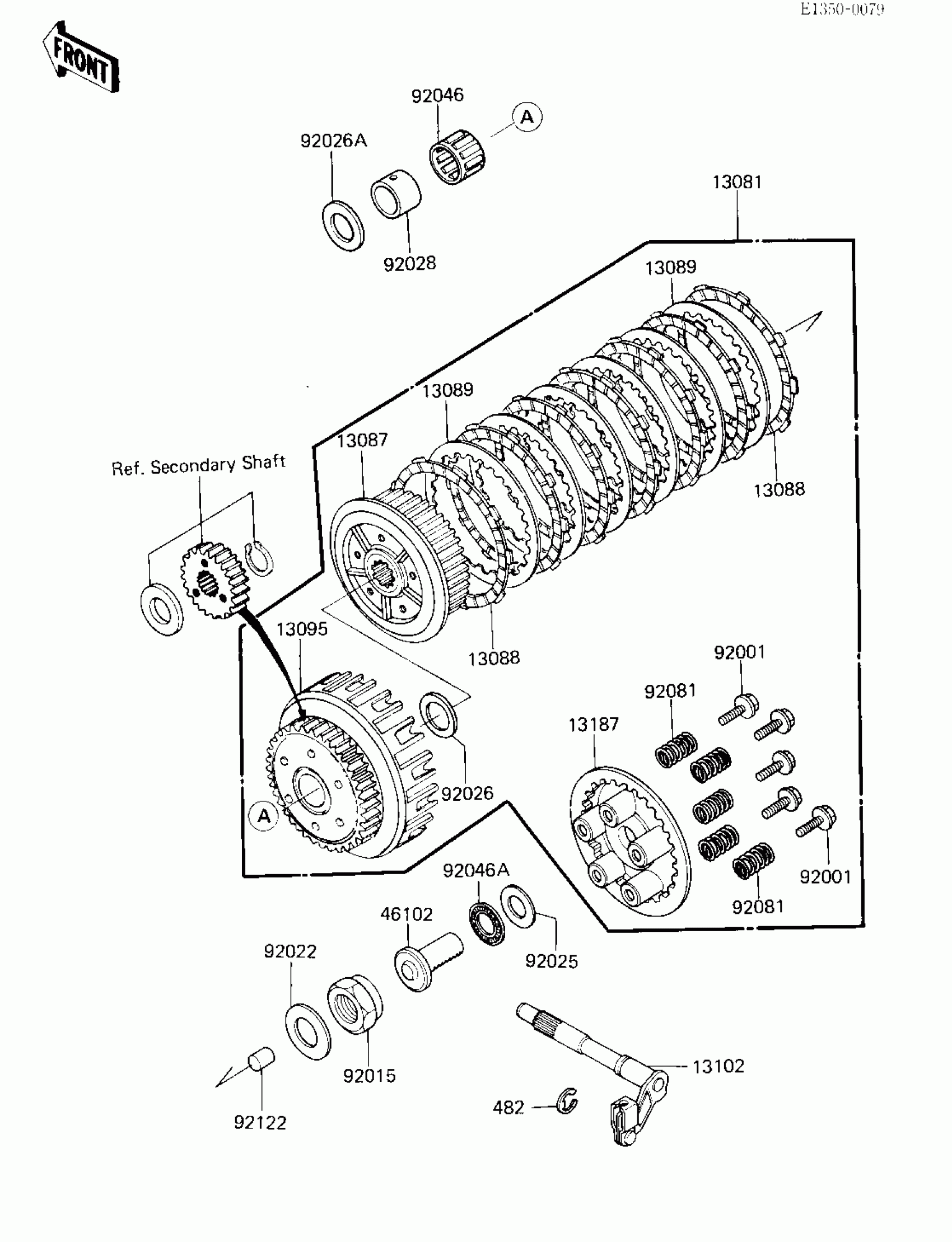

Kawasaki GPz 750 Turbo CLUTCH Diagram

CLUTCH-ASSY

HUB-CLUTCH

PLATE-FRICTION

PLATE,CLUTCH STEEL

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

ROD,CLUTCH,6T

BOLT,FLANGED,6X18

NUT,20MM

WASHER,20.3X36X2.3

SHIM,15.3X27.5X1.20

SPACER,25.5X47X2.5

SPACER,25.3X42X2.3

BUSHING,25X32X23.6

BEARING-NEEDLE,KTV323723

BEARING-NEEDLE,AXK1102

SPRING,CLUTCH

ROLLER,10X12

CIRCLIP-TYPE-E,9MM
