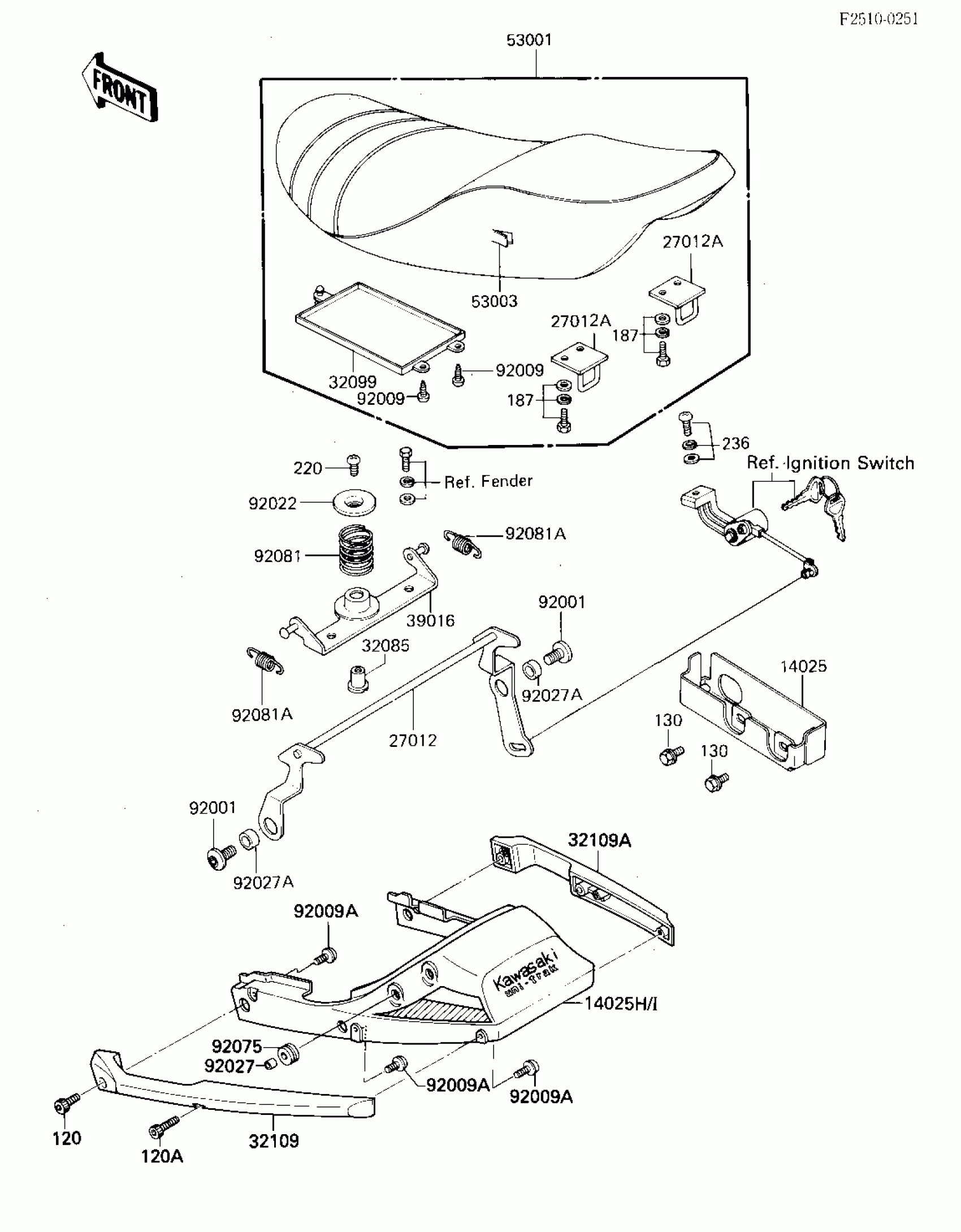

Kawasaki GPz 750 SEAT/SEAT COVER Diagram
#
Description
Price
14025
COVER,SEAT LOCK
14025-1656
Unavailable
14025H
COVER,SEAT,EBONY
14025-5207-H8
Unavailable
14025I
COVER,SEAT,F.RED (Canada)
14025-5208-B1
Unavailable
27012
HOOK,SEAT LOCK
27012-1039
$35.67
27012A
HOOK,SEAT
53008-021
$11.34
32085
STOPPER,SPRING
32085-1130
$6.64
32099
CASE,MANUAL
32099-011
$16.66
32109
GRIP-FRAME,SEAT,LH
32109-1046
$180.15
32109A
GRIP-FRAME,SEAT,RH
32109-1047
$180.15
39016
BRACKET-SPRING MOUNT,
39016-1003
$12.83
53001
SEAT-ASSY,DUAL
53001-1417
Unavailable
53003
LEATHER,SEAT
53003-1132
$123.86
92001
BOLT,8X16
92001-1841
Unavailable
92009
SCREW,TAPPING,5X8
92009-1043
$4.77
92009A
SCREW,SEAT COVER
92009-1186
$4.67
92022
WASHER,SEAT
92022-1411
Unavailable
92027
COLLAR,6.8X10X8.5
92027-129
$5.00
92027A
COLLAR,8.2X13X6
92027-1565
$1.93
92075
DAMPER
92075-1028
$4.69
92081
SPRING,SEAT REMOVER
92081-1579
Unavailable
92081A
SPRING,HOOK RETURN
92081-1580
$7.55
120
BOLT-SOCKET,8X25
120S0825
$4.37
120A
BOLT-SOCKET,8X35
120S0835
$4.44
130
BOLT-FLANGED,6X10
130B0610
$0.48
187
BOLT 6X14
187B0614
$0.88
220
SCREW PAN HEAD 6X10
220B0610
$3.14
236
SCREW-PAN-WSP-CROS
236B0612
$2.90
