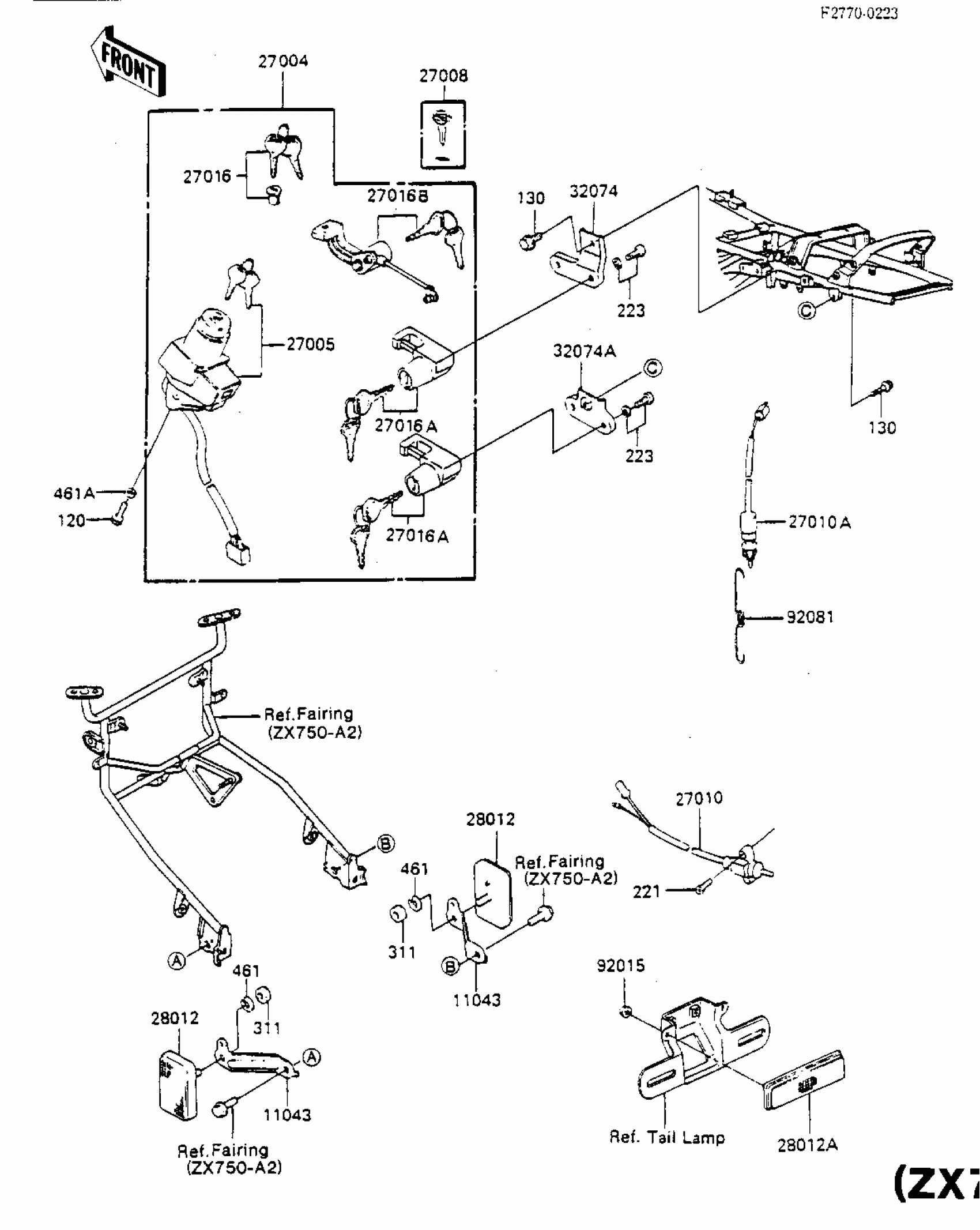

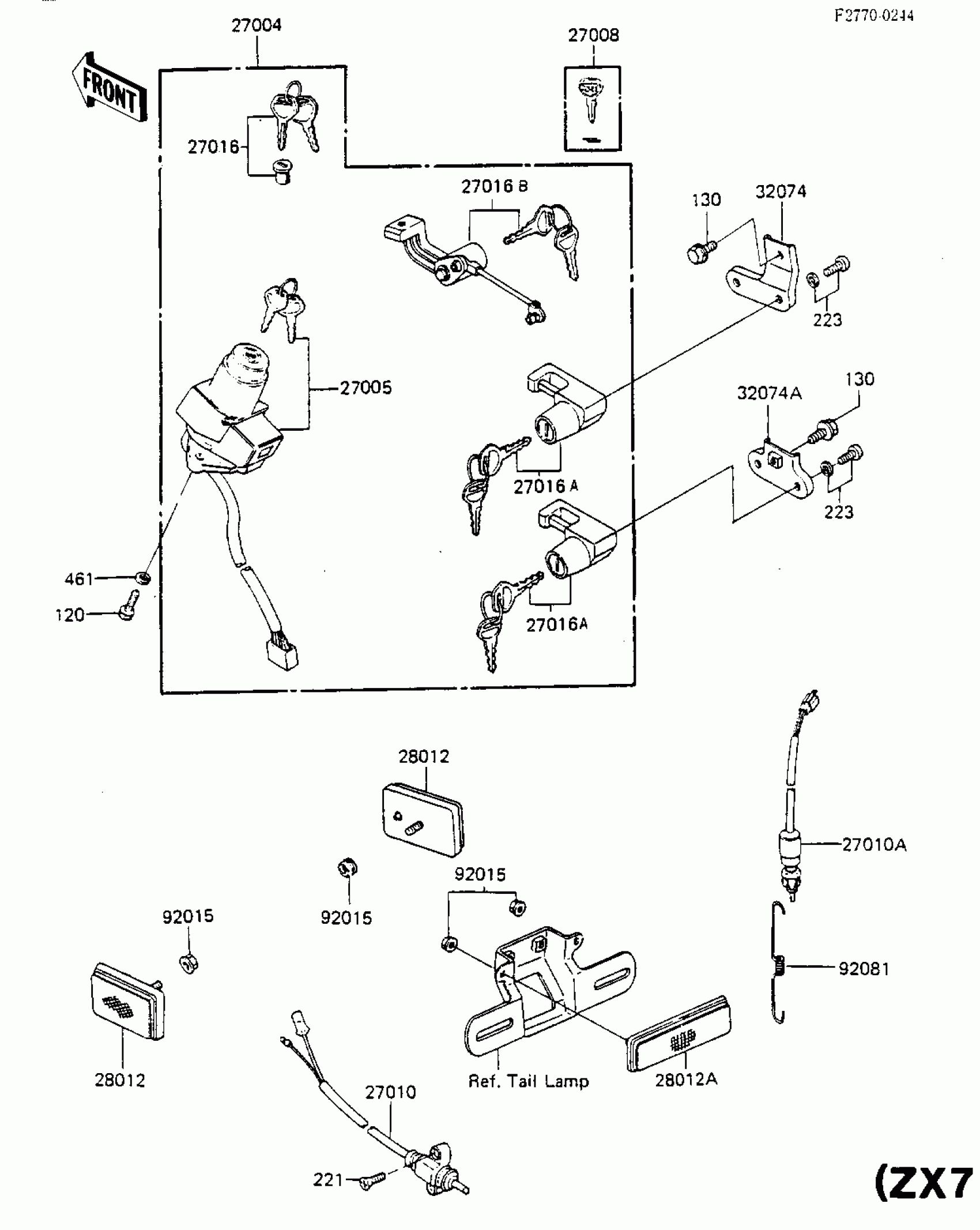

Kawasaki GPz 750 IGNITION SWITCH/LOCKS/REFLECTORS (ZX750- Diagram

Description

Price

11043

BRACKET-B,REFLECTOR

11043-1456

Unavailable

27004

SWITCH-ASSY

27004-5211

$454.03

27005

SWITCH-ASSY-IGNITION

27005-5035

$192.72

27008

KEY-LOCK,BLANK

27008-1103

$20.31

27010

SWITCH,SIDE STAND

27010-1065

$76.87

27010A

SWITCH,BRAKE LAMP

27010-1093

$30.06

27016

LOCK-ASSY,FUEL TANK

27016-5068

$99.55

27016A

LOCK-ASSY,HELMET

27016-5070

Unavailable

27016B

LOCK-ASSY,SEAT

27016-5071

Unavailable

28012

REFLECTOR-REFLEX

28012-1003

$22.09

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.34

32074

BRACKET-LOCK,HELMET,F

32074-1058

$12.11

32074A

BRACKET-LOCK,HELMET,R

32074-1059

$12.11

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92081

SPRING,BRAKE LAMP SWITCH

27011-021

$24.57

120

BOLT-SOCKET,6X16

120S0616

$1.23

130

BOLT-FLANGED,6X10

130B0610

$0.48

221

SCREW-CSK-CROS

221C0520

$3.67

223

SCREW-PAN-WS-CROS

223B0508

$0.40

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

$0.69

461A

WASHER SPRING 6MM

461F0600

$0.69
