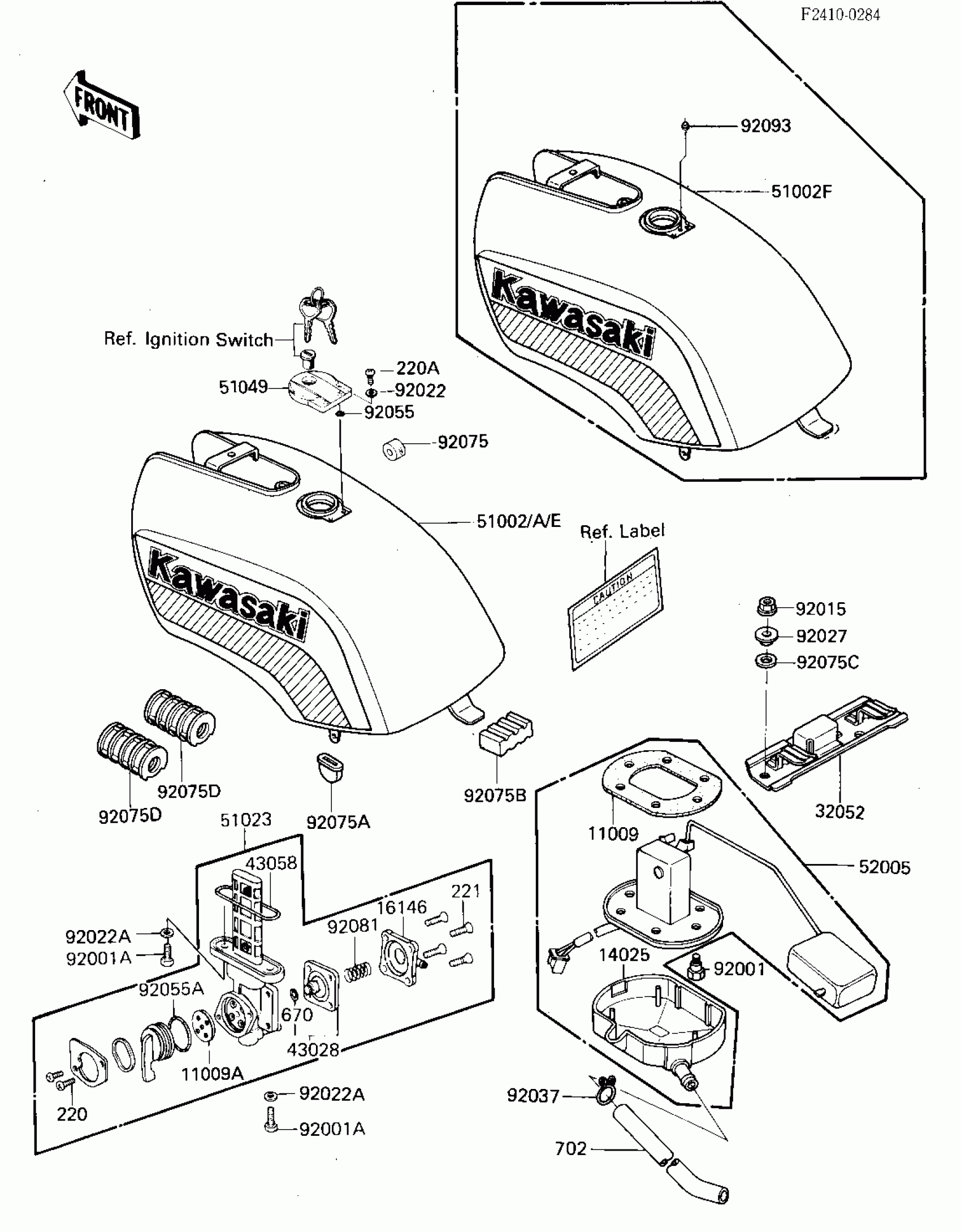

Kawasaki GPz 750 FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1037

Unavailable

11009A

GASKET,TAP VALVE

11009-1194

$9.95

14025

COVER,FUEL GAUGE

14024-1434

$35.39

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$21.09

32052

BRACKET-TANK,RR

32052-1180

$41.60

43028

DIAPHRAGM,TAP

43028-1015

$21.93

43058

RING,TAP FLANGED

51039-010

$7.55

51002

51002-5112-H8 (Canada)

51002-5020-H8

Unavailable

51002A

51002-5113-B1 (Canada)

51002-5021-B1

Unavailable

51002E

TANK-FUEL,EBONY

51002-5115-H8

$501.06

51002F

TANK-FUEL,EBONY

51002-5116-H8

$432.56

51023

TAP ASSY,FUEL

51023-1031

$138.53

51049

CAP-TANK,FUEL

51049-1097

$138.28

52005

GAUGE,FUEL

52005-1036

$133.23

92001

BOLT,FUEL GAUGE

92001-1069

$7.24

92001A

BOLT,6X20

92001-1091

$3.92

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,5.3X10X0.8

92022-1038

$3.65

92022A

WASHER-PLAIN

92022-183

$3.92

92027

COLLAR,L=7.4

92027-1848

$4.69

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O

92055-1023

$3.92

92055A

RING-O,TAP LEVER

92055-1027

$5.23

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER

92075-1445

$8.47

92075B

DAMPER,FUEL TANK,RR

92075-1447

Unavailable

92075C

DAMPER

92075-1564

$5.48

92075D

DAMPER,FUEL TANK

92075-1717

Unavailable

92081

SPRING,TAP DIAPHRAGM

92081-1171

$4.35

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW PAN HEAD 5X10

220B0510

$0.69

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11

702

TUBE-RUBBER

702A07680

$13.38
