Description

Price

11009

GASKET,PULSING COIL CAP

11060-1053

$8.12

11009A

GASKET,GENERATOR COVER

11009-1987

$11.80

11009B

GASKET,TRANSMISSION COVER

11009-1985

Unavailable

11009C

GASKET,R.H.ENG COVER

14046-035

$30.54

11012

CAP,PULSING COIL,BLAC

11012-1287

$58.77

11036

BRACKET-A,CLUTCH CABL

11036-1832

Unavailable

14025

COVER,TRANSMISSION

14025-1605

$109.81

14026

COVER-CHAIN,BLACK

14026-1084

Unavailable

14031

COVER-GENERATOR,BLACK

14031-1115

Unavailable

14032

COVER-CLUTCH,BLACK

14032-1109

Unavailable

16115

CAP-OIL FILLER

16115-1009

$14.30

52005

GAUGE,OIL LEVEL

52005-1017

Unavailable

92001

BOLT,HEX HEAD,6X35

92001-164

$6.60

92002

BOLT,6X30

92002-1095

$4.98

92002A

BOLT-SOCKET,6X40,BLACK

120S0640

$1.49

92002B

BOLT,SOCKET,6X80

92002-1144

Unavailable

92022

BOLT,SOCKET,6X80

92002-1144

Unavailable

92037

CLAMP,TUBE&HARNESS

92037-1414

$4.06

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92046A

BEARING-NEEDLE,HK0910

92046-1060

Unavailable

92049

SEAL-OIL,SC325210

92050-024

$8.17

92049A

SEAL-OIL,TB12205.5

92049-1271

$9.28

92049B

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

120

BOLT-SOCKET,6X70,BLAC

120S0670

$4.95

186

BOLT-UPSET-WP,6X12

186C0612

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

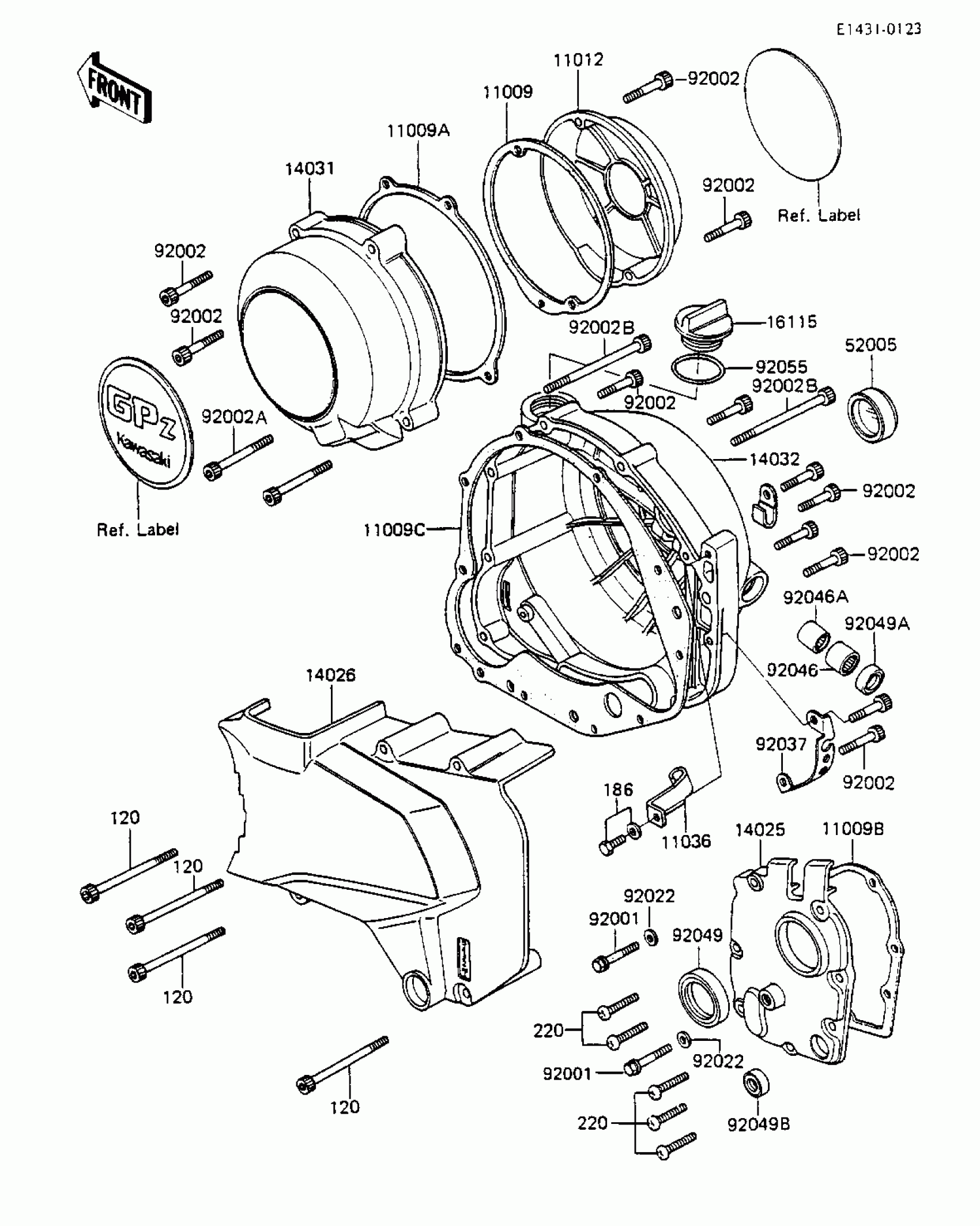

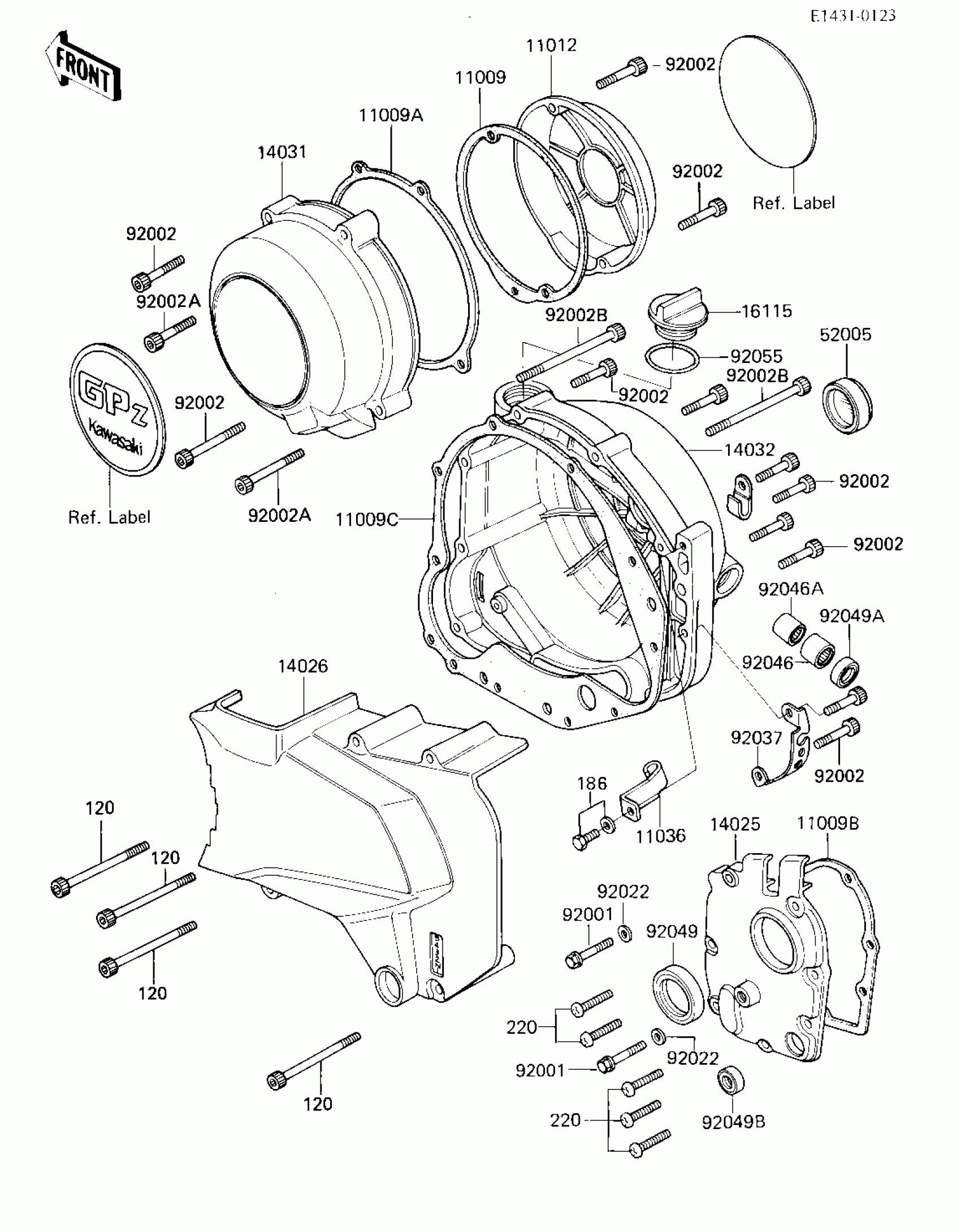

Kawasaki GPz 750 ENGINE COVERS Diagram

GASKET,PULSING COIL CAP

GASKET,GENERATOR COVER

GASKET,TRANSMISSION COVER

GASKET,R.H.ENG COVER

CAP,PULSING COIL,BLAC

BRACKET-A,CLUTCH CABL

COVER,TRANSMISSION

COVER-CHAIN,BLACK

COVER-GENERATOR,BLACK

COVER-CLUTCH,BLACK

CAP-OIL FILLER

GAUGE,OIL LEVEL

BOLT,HEX HEAD,6X35

BOLT,6X30

BOLT-SOCKET,6X40,BLACK

BOLT,SOCKET,6X80

BOLT,SOCKET,6X80

CLAMP,TUBE&HARNESS

BEARING-NEEDLE,HK1210

BEARING-NEEDLE,HK0910

SEAL-OIL,SC325210

SEAL-OIL,TB12205.5

SEAL-OIL,TB13225.5

RING-O,31.5X2.6

BOLT-SOCKET,6X70,BLAC

BOLT-UPSET-WP,6X12

SCREW-PAN-CROS,6X20,WHITE
