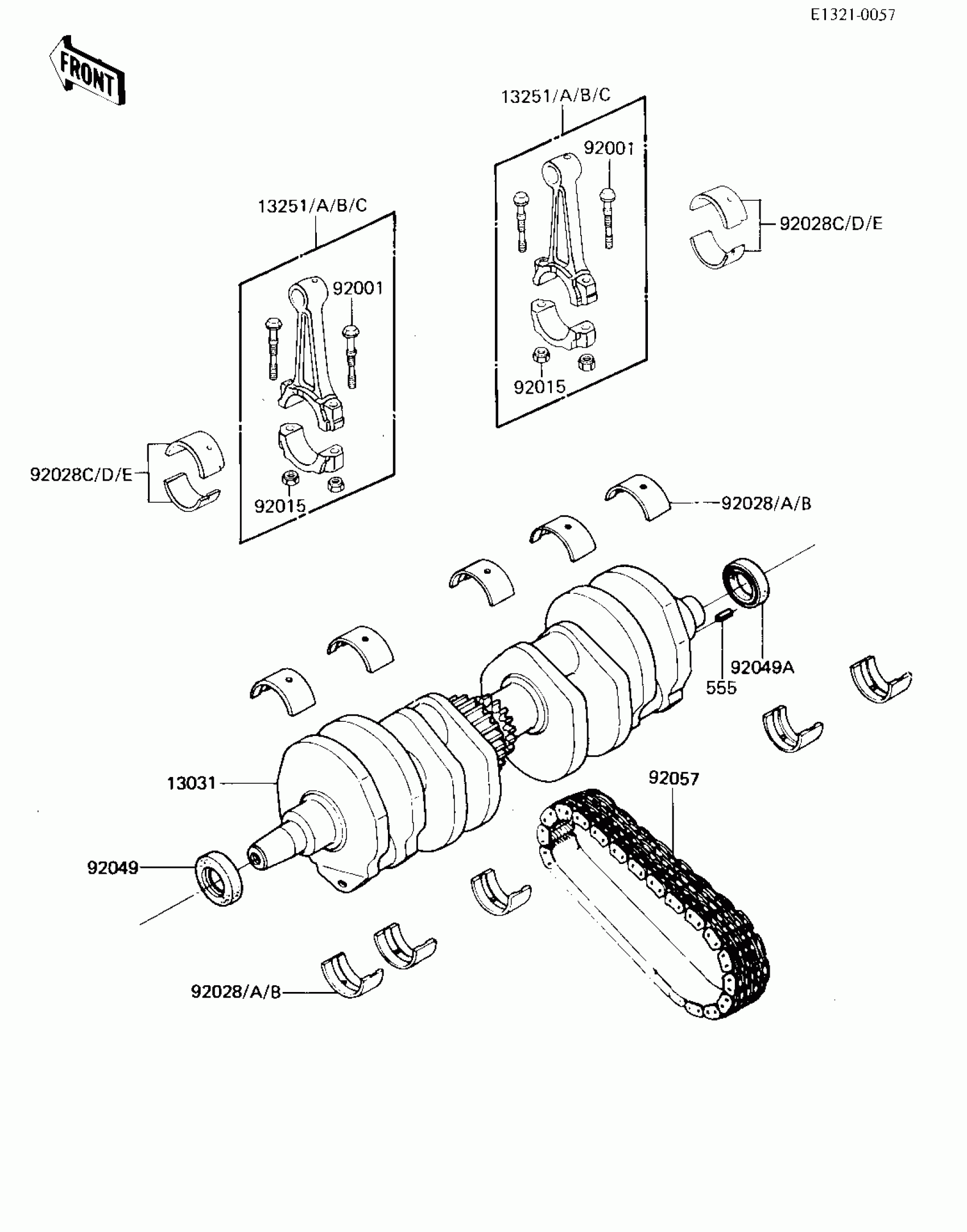

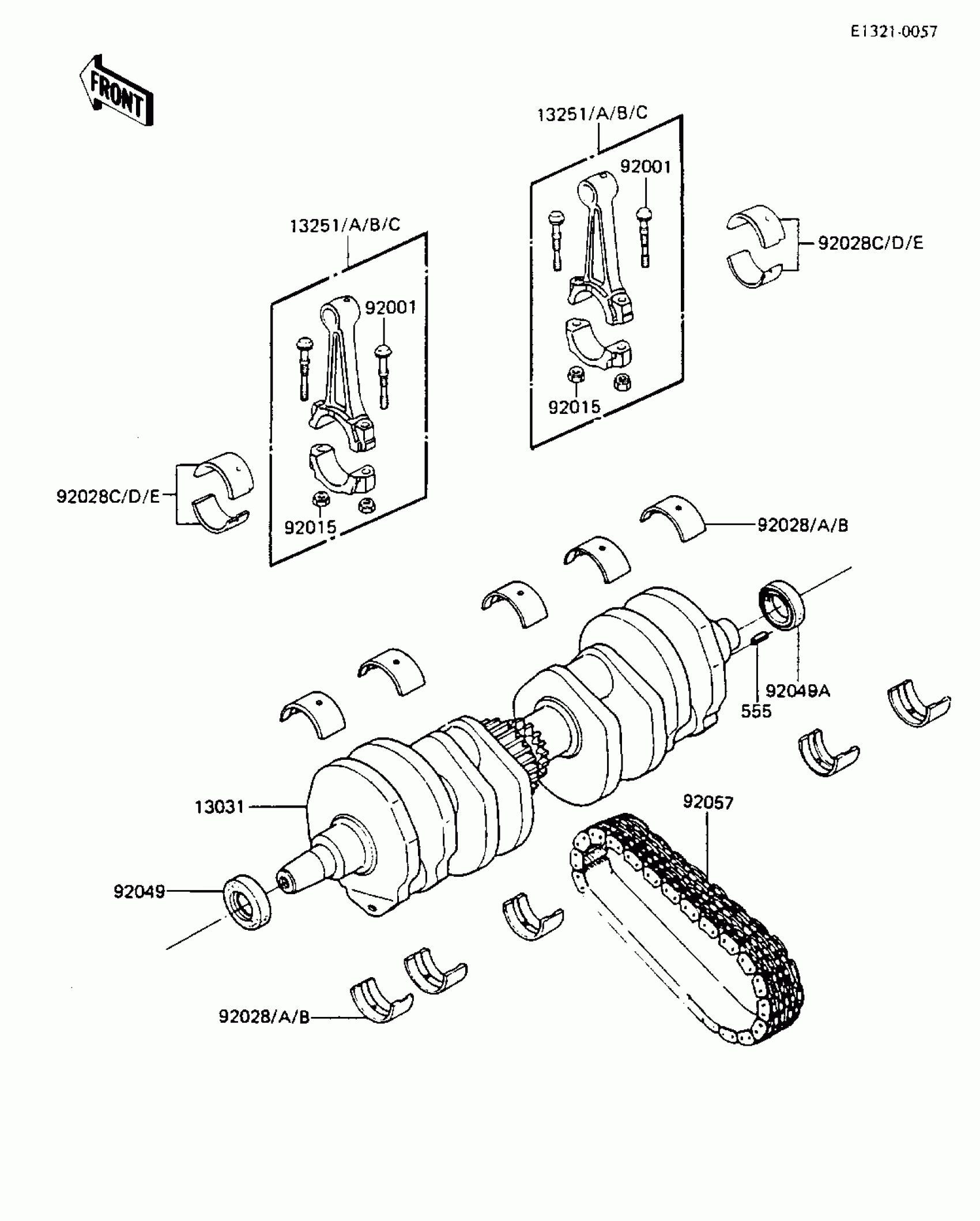

Kawasaki GPz 750 CRANKSHAFT Diagram

CRANKSHAFT-COMP

13031-1314

Unavailable

CONNECTING ROD ASSY,J

13251-1007-JJ

Unavailable

CONNECTING ROD ASSY,J

13251-1007-JJ

Unavailable

CONNECTING ROD ASSY,J

13251-1007-JJ

Unavailable

CONNECTING ROD ASSY,K

13251-1007-KK

Unavailable

BOLT,CONNECTING ROD,8MM

92001-1887

$9.57

NUT,FLANGED,8MM

92015-1311

$7.34

BUSHING,CRANKSHAFT,BLUE

92028-1100

$16.90

BUSHING,CRANKSHAFT,BLACK

92028-1101

$16.90

BUSHING,CRANKSHAFT,BROWN

92028-1102

$16.90

BUSHING,CONNECTING ROD,BLUE

92028-1203

$20.79

BUSHING,CONNECTING ROD,BLACK

92028-1204

$20.79

BUSHING,CONNECTING ROD,BROWN

92028-1205

$20.79

SEAL-OIL,HSCY25X39X7

92049-1090

$19.66

SEAL-OIL,HSCY25397

92050-081

$13.07

CHAIN,63-139X52L(TUBAKIMOTO)

13122-007

$388.56

PIN-SPRING,4X8

555A0408

$3.92
