Description

Price

130

BOLT-FLANGED,6X16

130P0616

$1.80

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

601

BEARING-BALL,#6004

601A6004

$11.91

11012

CAP,CHAIN ADJUSTER

11012-1911

$35.42

32085

STOPPER,CHAIN ADJUSTER

32085-1408

$6.15

33001

ARM-COMP-SWING

33001-1474

Unavailable

33032

SHAFT-SWING ARM

33032-1170

Unavailable

33040

ADJUSTER-CHAIN,INNER

33040-1142

$49.81

33040A

ADJUSTER-CHAIN,OUTER,RH

33040-1143

$8.49

42036

SLEEVE,SWING ARM,L=227.2

42036-1236

Unavailable

55020

GUARD,CHAIN

55020-1529

Unavailable

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$5.38

92015A

NUT,FLANGED,20MM

92015-1724

$14.90

92033

RING-SNAP,42MM

92033-1041

$6.16

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,TC28426.5

92049-1185

$9.28

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$19.64

92150

BOLT,CHAIN ADJUSTER

92150-1285

$9.05

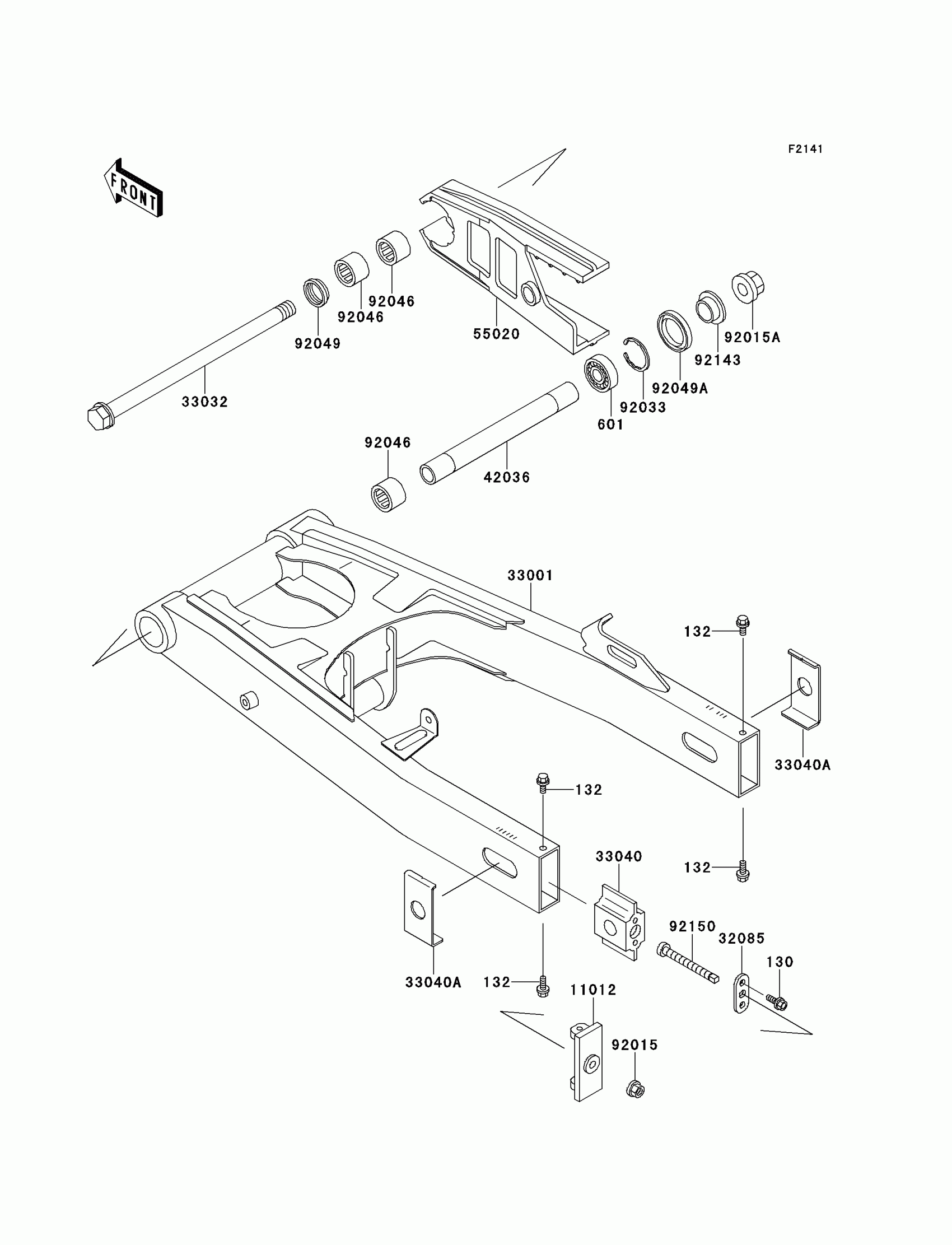

Kawasaki GPZ 1100 Swingarm Diagram

BOLT-FLANGED,6X16

BOLT-FLANGED-SMALL,6X12

BEARING-BALL,#6004

CAP,CHAIN ADJUSTER

STOPPER,CHAIN ADJUSTER

ARM-COMP-SWING

SHAFT-SWING ARM

ADJUSTER-CHAIN,INNER

ADJUSTER-CHAIN,OUTER,RH

SLEEVE,SWING ARM,L=227.2

GUARD,CHAIN

NUT,FLANGED,8MM,BLACK

NUT,FLANGED,20MM

RING-SNAP,42MM

BEARING-NEEDLE,BM2817

SEAL-OIL,28X34X5.7

SEAL-OIL,TC28426.5

COLLAR,SWING ARM,RH,L=12.5

BOLT,CHAIN ADJUSTER
