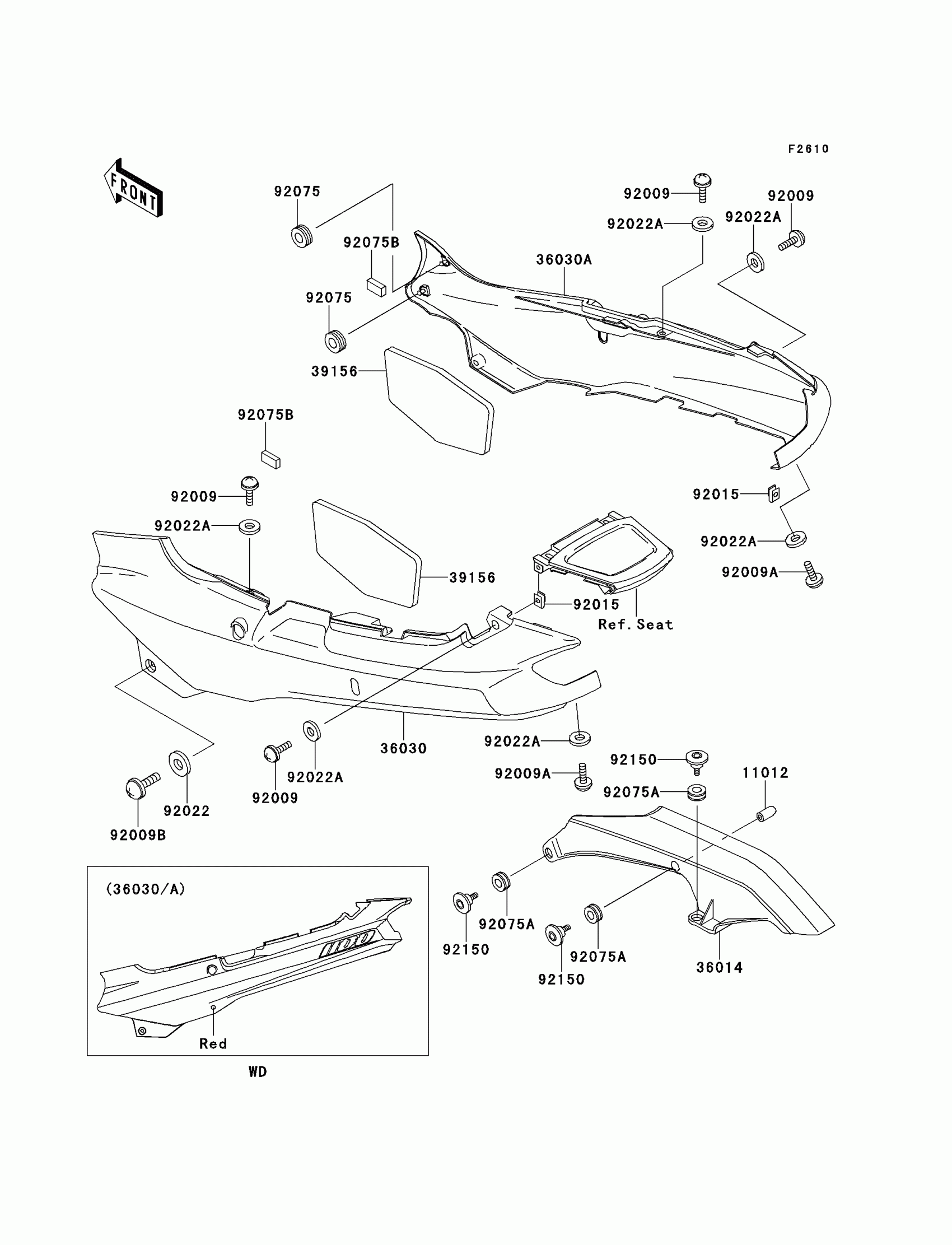

Kawasaki GPZ 1100 Side Covers/Chain Cover(ZX1100-E1) Diagram

Description

Price

11012

CAP

11012-1438

$4.96

36014

CASE-CHAIN

36014-1197

Unavailable

36030

COVER-SIDE,LH,C.P.RED

36030-5477-A5

Unavailable

36030A

COVER-SIDE,RH,C.P.RED

36030-5478-A5

$379.15

39156

PAD,SIDE,COVER

39156-1442

Unavailable

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92009A

SCREW,5X20,BLACK

92009-1656

$3.96

92009B

SCREW,6X14

92009-1662

$3.92

92015

NUT,5MM

92015-1798

$6.57

92022

WASHER,6.5X16X1

92022-1143

$3.92

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER

92075-1629

$5.00

92075A

DAMPER

92075-1634

$4.69

92075B

DAMPER

92075-1867

$4.78

92150

BOLT,SOCKET,6MM

92150-1154

$7.84
