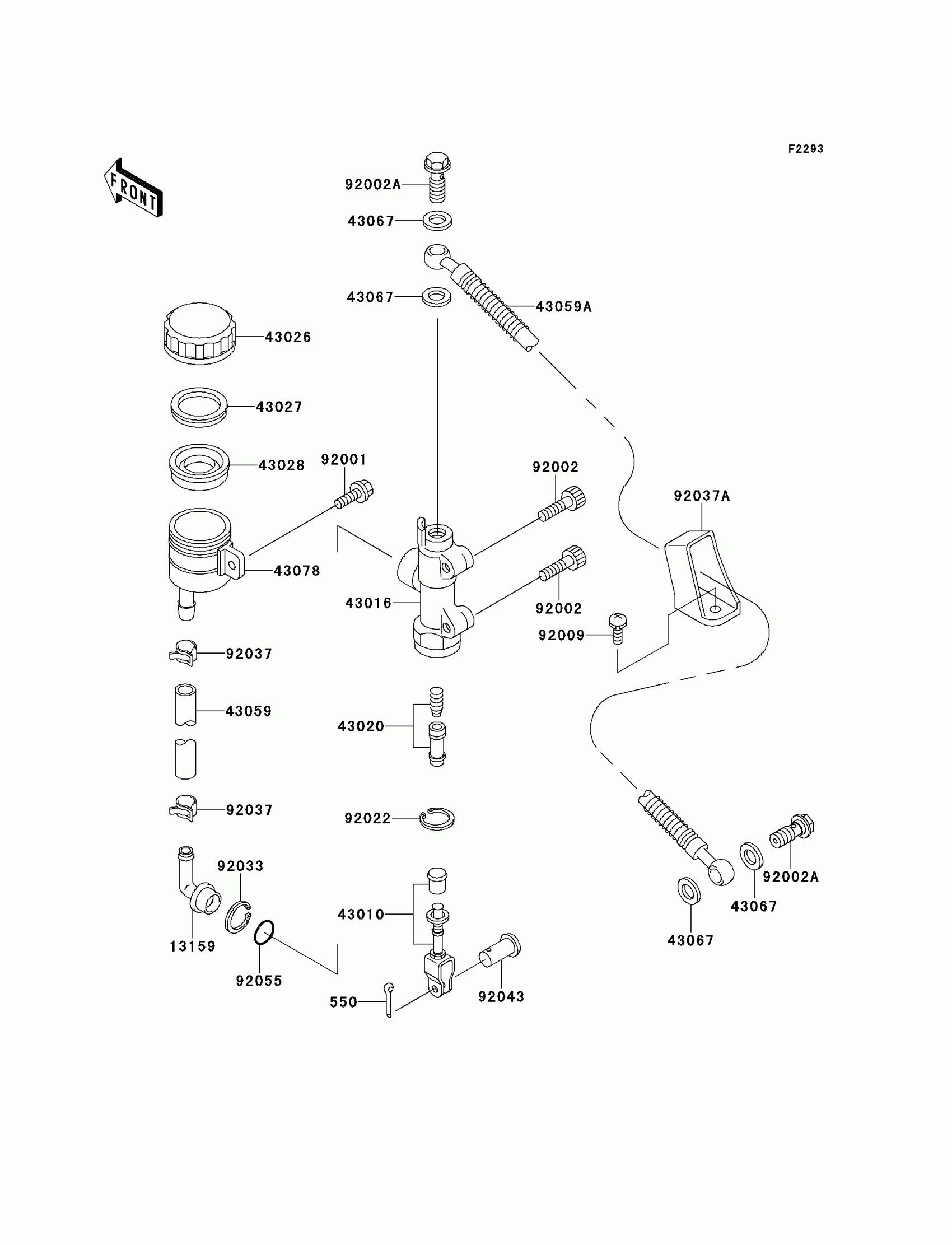

Kawasaki GPZ 1100 Rear Master Cylinder Diagram

#

Description
Price

550

PIN COTTER 2.0X15

550D2015

$1.04

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1073

Unavailable

43016

CYLINDER-MASTER

43016-1123

Unavailable

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1369

$36.75

43059A

HOSE-BRAKE,RR

43059-1880

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

92001

BOLT,W/P,6X16

92001-1860

$4.31

92002

BOLT,SOCKET,8X30

92002-1179

$7.24

92002A

BOLT,OIL,L=23

92002-1888

$5.48

92009

SCREW,6X10

92009-1402

$2.41

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92037A

CLAMP,HOSE

92037-1896

$23.23

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable
