1997 Kawasaki GPZ 1100 OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

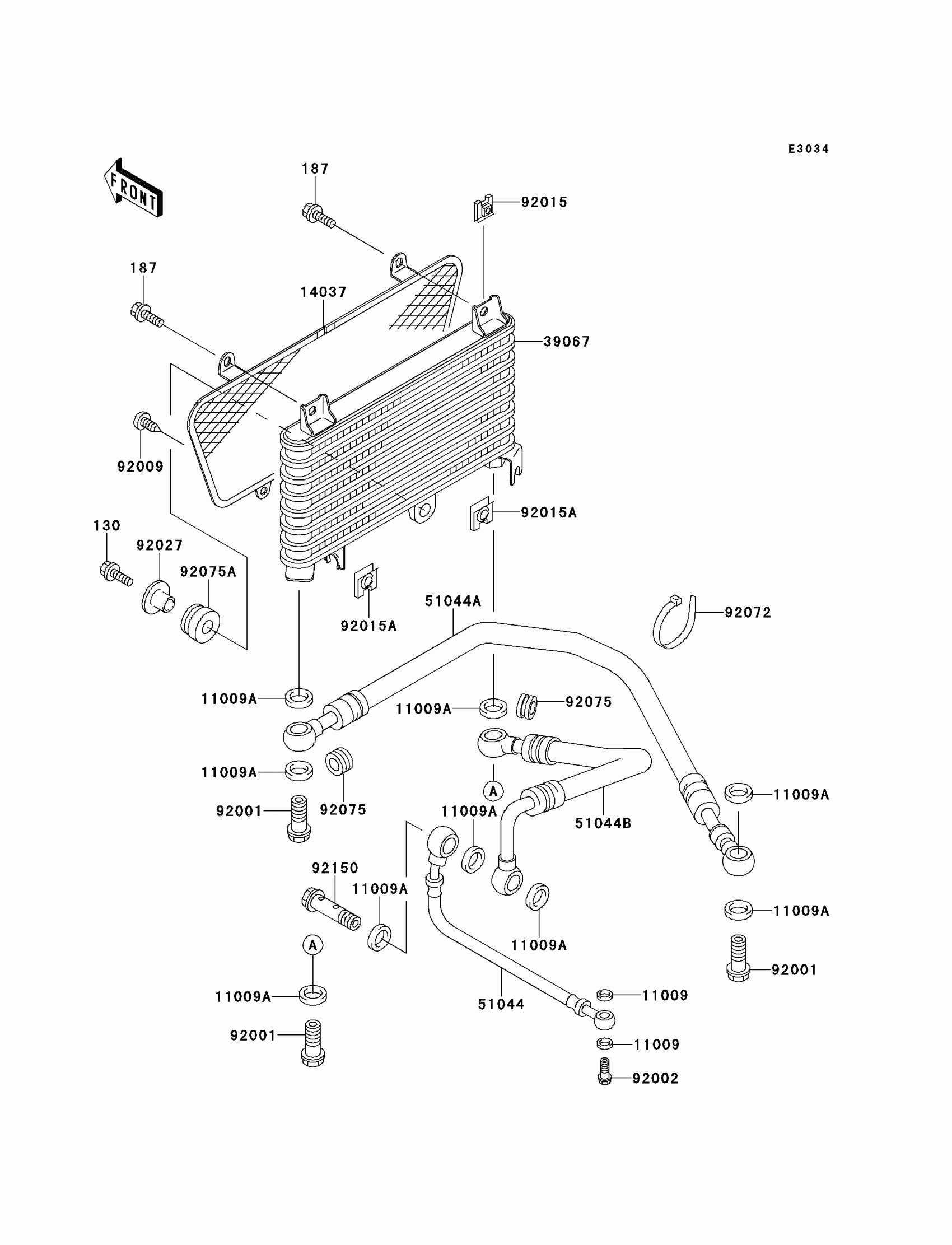

1997 Kawasaki GPZ 1100 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

187

BOLT-UPSET-WSP

187G0616

1
Out of stock

11009

GASKET,8.2X14X1.0

11009-1344

1
Out of stock

11009A

GASKET,14X19.5X1.4

11009-1461

1
Out of stock

14037

SCREEN,OIL COOLER

14037-1199

1
Out of stock

39067

COOLER-OIL

39067-1063

1
Out of stock

51044

TUBE-ASSY,OIL

51044-1130

1
Out of stock

51044A

TUBE-ASSY

51044-1177

1
Out of stock

51044B

TUBE-ASSY

51044-1178

1
Out of stock

92001

BOLT,14X28.5

92001-1930

1
Out of stock

92002

BOLT,8X20

92002-1429

1
Out of stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92015A

NUT,6MM

92015-1758

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92072

BAND,L=250

92072-1237

1
Out of stock

92075

DAMPER,OIL COOLER

92075-1942

1
Out of stock

92075A

DAMPER

92075-277

1
Out of stock

92150

BOLT,BANJO,14X46

92150-1324

1
Out of stock
