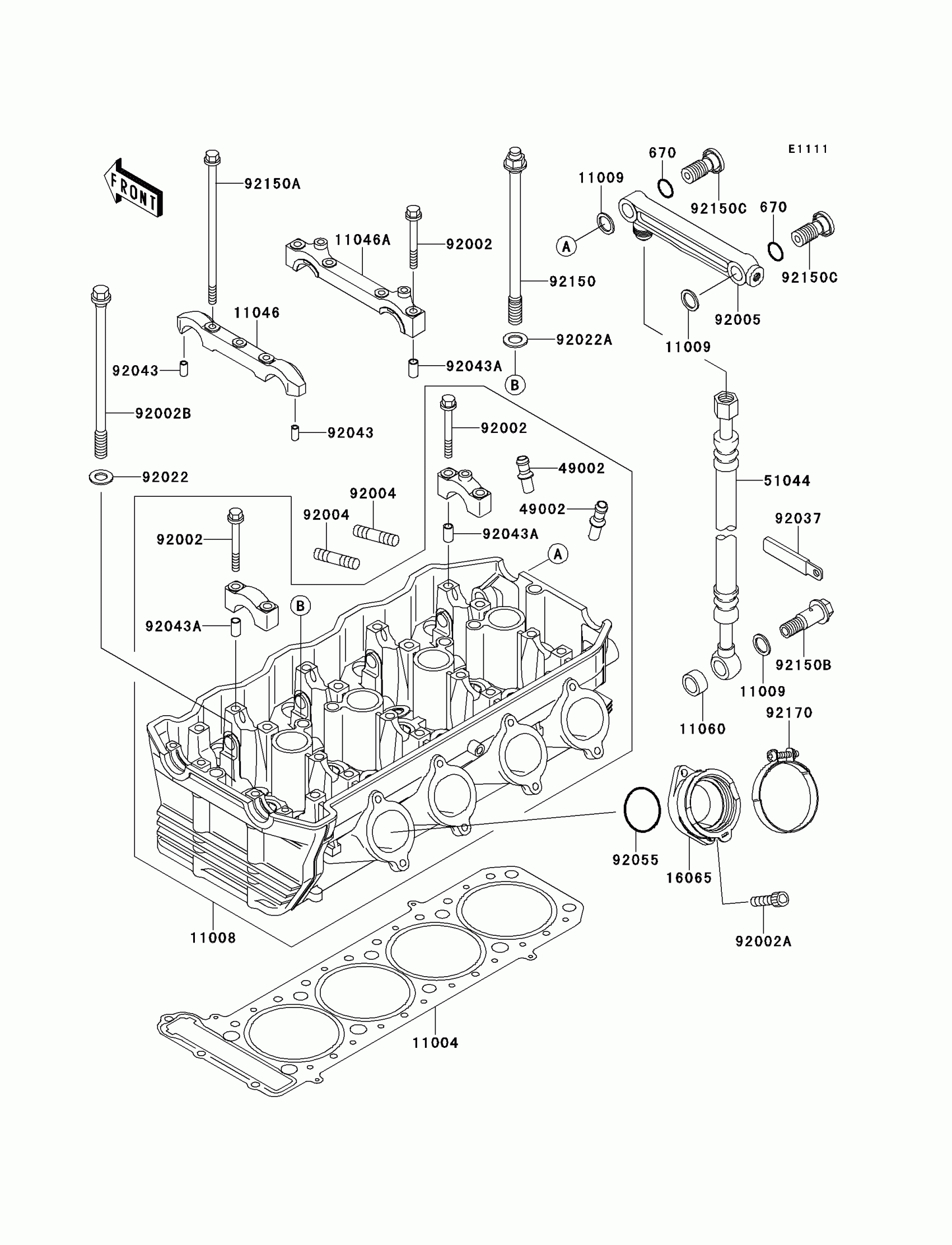

Kawasaki GPZ 1100 Cylinder Head Diagram

#

Description
Price

670

O RING,15MM

670B2015

$1.08

11004

GASKET-HEAD

11004-1248

$153.84

11008

HEAD-COMP-CYLINDER

11008-1300

Unavailable

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

11046

BRACKET,CAMSHAFT,#9

11046-1150

$47.97

11046A

BRACKET,CAMSHAFT,#10

11046-1151

$47.97

11060

GASKET

11060-1369

$8.92

16065

HOLDER-CARBURETOR

16065-1307

$33.73

49002

GUIDE-VALVE

49002-1097

Unavailable

51044

TUBE-ASSY

51044-1094

Unavailable

92002

BOLT,6X40

92002-1756

$3.57

92002A

BOLT,SOCKET,6X16

92002-1778

$3.81

92002B

BOLT,10X164

92002-1943

$14.49

92004

STUD,8X22

92004-1181

Unavailable

92005

FITTING

92005-1277

$36.21

92022

WASHER,10.5X20X1.6

92022-1591

$3.88

92022A

WASHER,11.5X20.5X1.6

92022-1720

$3.29

92037

CLAMP

92037-1997

$4.15

92043

PIN,4.2X6X12

92043-1262

$3.29

92043A

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,43.7X1.9

92055-1401

$10.44

92150

BOLT,11X164

92150-1075

$18.51

92150A

BOLT,6X148

92150-1076

$8.44

92150B

BOLT,BANJO,12X40.5

92150-1077

$14.14

92150C

BOLT

92150-1078

$29.54

92170

CLAMP

92170-1066

$6.89
