1997 Kawasaki GPZ 1100 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1997 Kawasaki GPZ 1100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

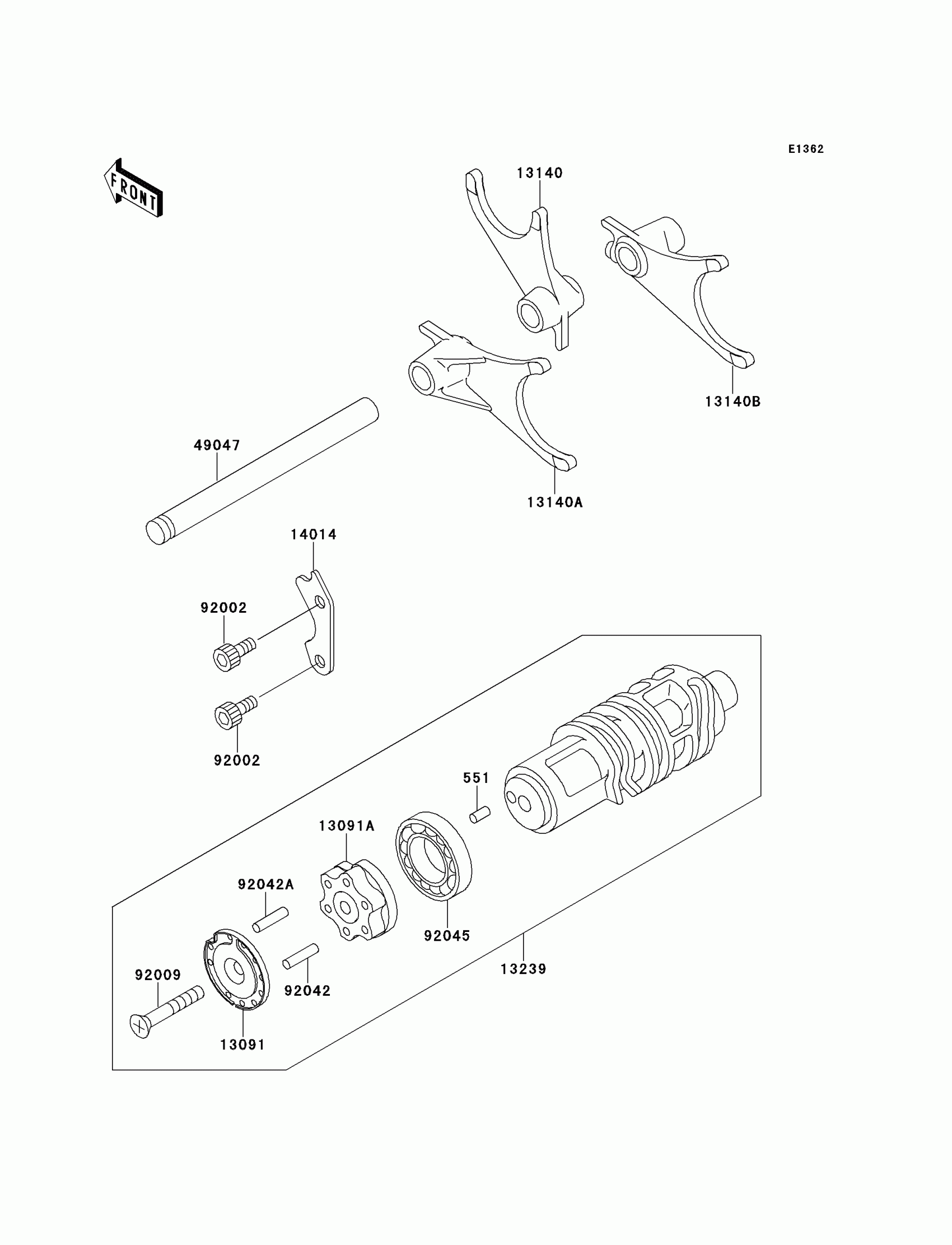

1997 Kawasaki GPZ 1100 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock

13091

HOLDER,NEUTRAL

13091-1334

1

$24.61

In stock

13091A

HOLDER,CHANGE DRUM

13091-1834

1
Out of stock

13140

FORK-SHIFT

13140-1196

1

$103.41

In stock

13140A

FORK-SHIFT

13140-1197

1

$103.41

In stock

13140B

FORK-SHIFT

13140-1198

1

$103.41

In stock

13239

DRUM-ASSY-CHANGE

13239-1184

1
Out of stock

14014

PLATE-POSITION,CHANGE DRUM

14014-1059

1
Out of stock

49047

ROD-SHIFT

49047-1055

1

$34.85

In stock

92002

BOLT,SOCKET,6X16

92002-1778

1
Out of stock

92009

SCREW,6X45

92009-1599

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92042A

PIN,DOWEL,4X17.8

92042-020

1
Out of stock

92045

BEARING-BALL,16005

92045-1045

1

$28.80

In stock
