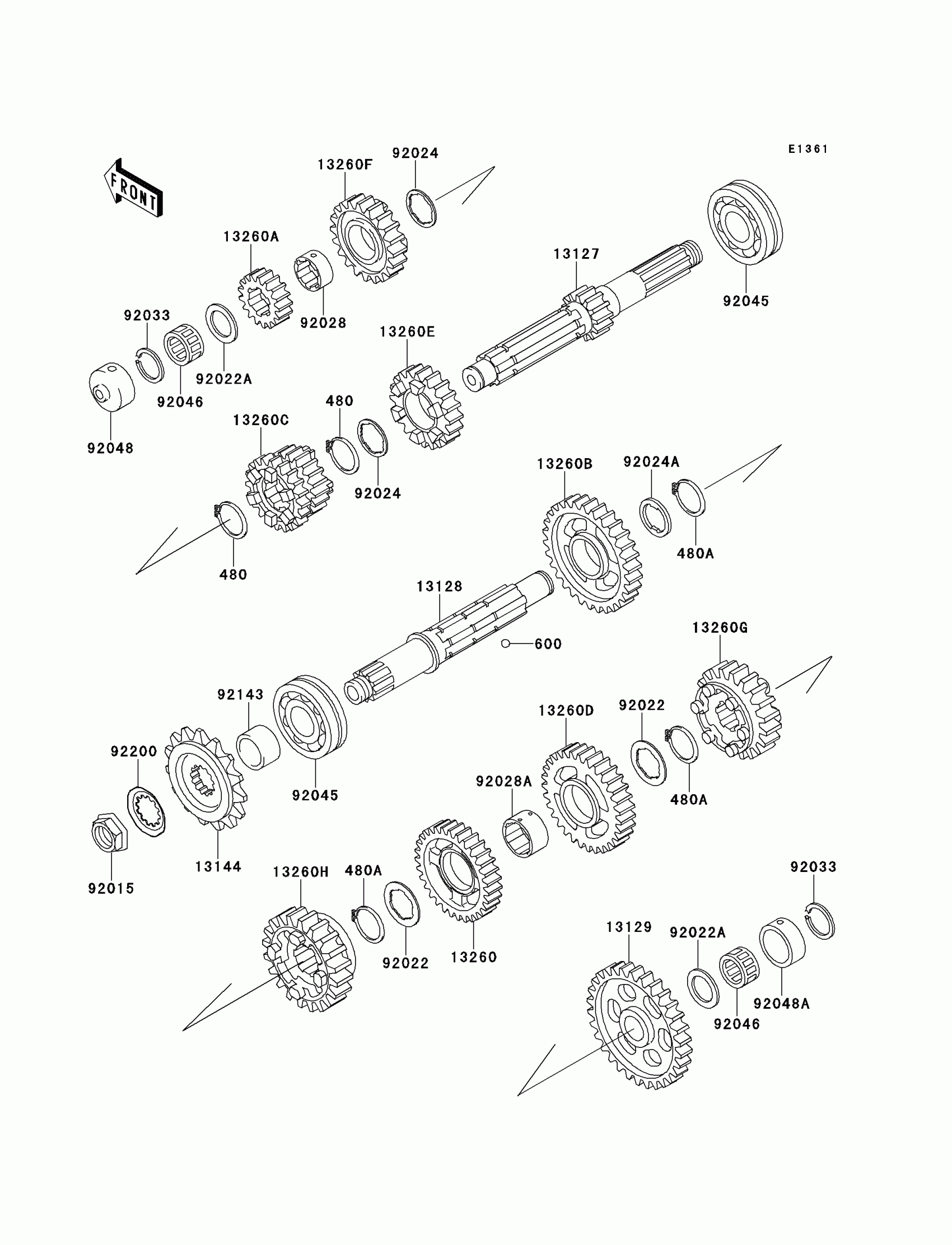

Kawasaki GPZ 1100 Transmission Diagram

#

Description
Price

480

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

480A

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.68

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1196

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1205

Unavailable

13129

GEAR,OUTPUT LOW,42T

13129-1534

$232.08

13144

SPROCKET-OUTPUT,17T

13144-1239

Unavailable

13260

GEAR,OUTPUT 4TH,32T

13260-1139

$236.25

13260A

GEAR,INPUT 2ND,18T

13260-1468

Unavailable

13260B

GEAR,OUTPUT 2ND,37T

13260-1469

Unavailable

13260C

GEAR,INPUT 3RD&4TH,22T&24T

13260-1470

Unavailable

13260D

GEAR,OUTPUT 3RD,35T

13260-1471

Unavailable

13260E

GEAR,INPUT 5TH,26T

13260-1499

Unavailable

13260F

GEAR,INPUT TOP,28T

13260-1500

Unavailable

13260G

GEAR,OUTPUT 5TH,30T

13260-1501

Unavailable

13260H

GEAR,OUTPUT TOP,29T

13260-1502

Unavailable

92015

NUT,20MM

92015-1210

$17.59

92022

WASHER,TOOTHED,28X40X1.8

92022-1728

$14.24

92022A

WASHER,22.3X35X1.6

92022-212

$9.58

92024

WASHER,TOOTHED,26X35.5X1.5

92024-042

$10.63

92024A

WASHER,TOOTHED,30.5X38X1

92024-069

$5.37

92028

BUSHING,TOP GEAR

92028-1124

$46.36

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

$46.37

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92045

BEARING-BALL

92045-1186

$66.11

92046

BEARING-NEEDLE,FWF-223014

92046-031

$15.89

92048

RACE,INPUT SHAFT

92048-1052

$56.92

92048A

RACE,30X38X15

92048-1053

Unavailable

92143

COLLAR,28X40X33.5

92143-1731

$32.86

92200

WASHER,TOOTHED,23.9X45X1.0

92200-1234

$4.58
