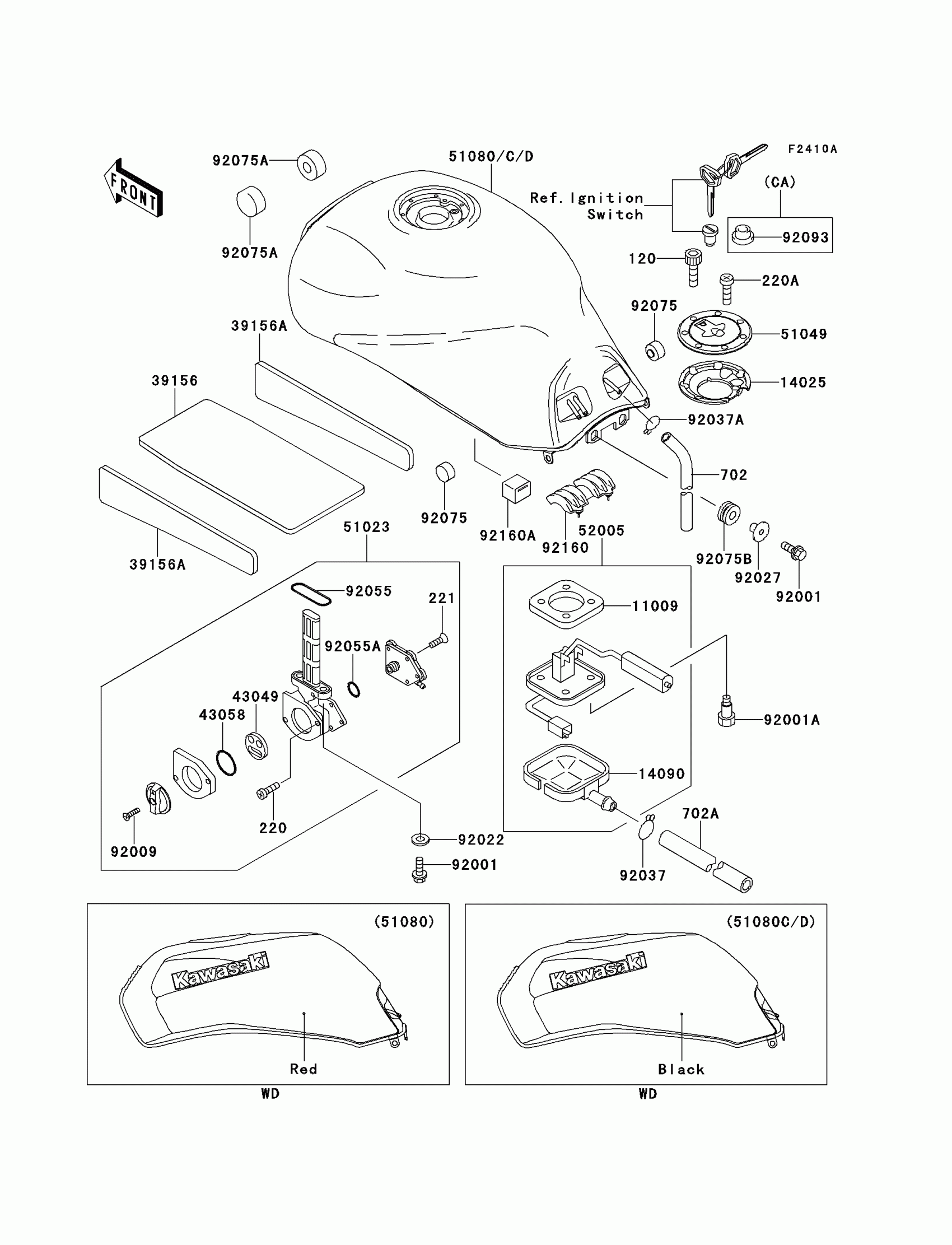

Kawasaki GPZ 1100 Fuel Tank (ZX1100-E2/E3) Diagram
#
Description
Price
120
BOLT-SOCKET,5X12
120S0512
$1.71
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROSS
220C0508
$0.55
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
702
TUBE-RUBBER,7X10X600
702A07600
$13.38
11009
GASKET,FUEL GAUGE
11009-1656
Unavailable
14025
COVER,TANK CAP
14025-1913
$21.55
14090
COVER,FUEL GAUGE
14090-1624
$17.07
39156
PAD,FUEL TANK,CNT
39156-1482
Unavailable
39156A
PAD,FUEL TANK
39156-1483
Unavailable
43049
PACKING,TAP VALVE
43049-1075
Unavailable
43058
RING,TAP LEVER
43058-1083
$8.68
51023
TAP-ASSY,FUEL
51023-1219
$133.83
51049
CAP-TANK,FUEL
51049-1091
$115.45
51080C
TANK-COMP-FUEL,P.G.BLACK
51080-5228-RL
Unavailable
52005
GAUGE,FUEL
52005-1111
$137.73
92001
BOLT,6X25
92001-1524
$2.12
92001A
BOLT,FUEL GAUGE
92001-1705
Unavailable
92009
SCREW,4X12
92009-1742
$2.65
92022
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,L=13.1
92027-251
Unavailable
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP
92037-1712
$5.00
92055
RING-O,FUEL TAP PACKING
92055-1112
$5.00
92055A
RING-O
92055-1539
$6.45
92075
DAMPER
92075-021
$5.24
92075A
DAMPER,FUEL TANK
92075-101
$6.22
92075B
DAMPER,10X24X12
92075-1690
$5.00
92160
DAMPER,FUEL TANK,CNT
92160-1577
Unavailable
92160A
DAMPER
92160-1626
$5.88
702A
TUBE-RUBBER,7X10X860
702A07860
$13.38
