Description

Price

41080A

DISC,FR,GRAY/SILVER

41080-1424-5C

Unavailable

43041

CALIPER-ASSY,FR,LH,A.C.GRAY

43041-1582-FE

Unavailable

43041A

CALIPER-ASSY,FR,RH,A.C.GRAY

43041-1583-FE

Unavailable

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

$148.83

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$144.35

43048

PISTON-CALIPER

43048-1073

$65.22

43049

PACKING,PISTON SEAL

43049-1067

$10.39

43049A

PACKING

43049-1068

$9.82

43056

BREATHER

43056-003

$24.57

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE,LH

43082-1177

$55.51

43082A

PAD-ASSY-BRAKE,RH

43082-1178

Unavailable

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,LH

92144-1832

$26.35

92144B

SPRING,PAD,RH

92144-1844

$10.00

92150

BOLT,FLANGED,10X38

92150-1297

$6.63

92150A

BOLT,8X30

92150-1728

$4.69

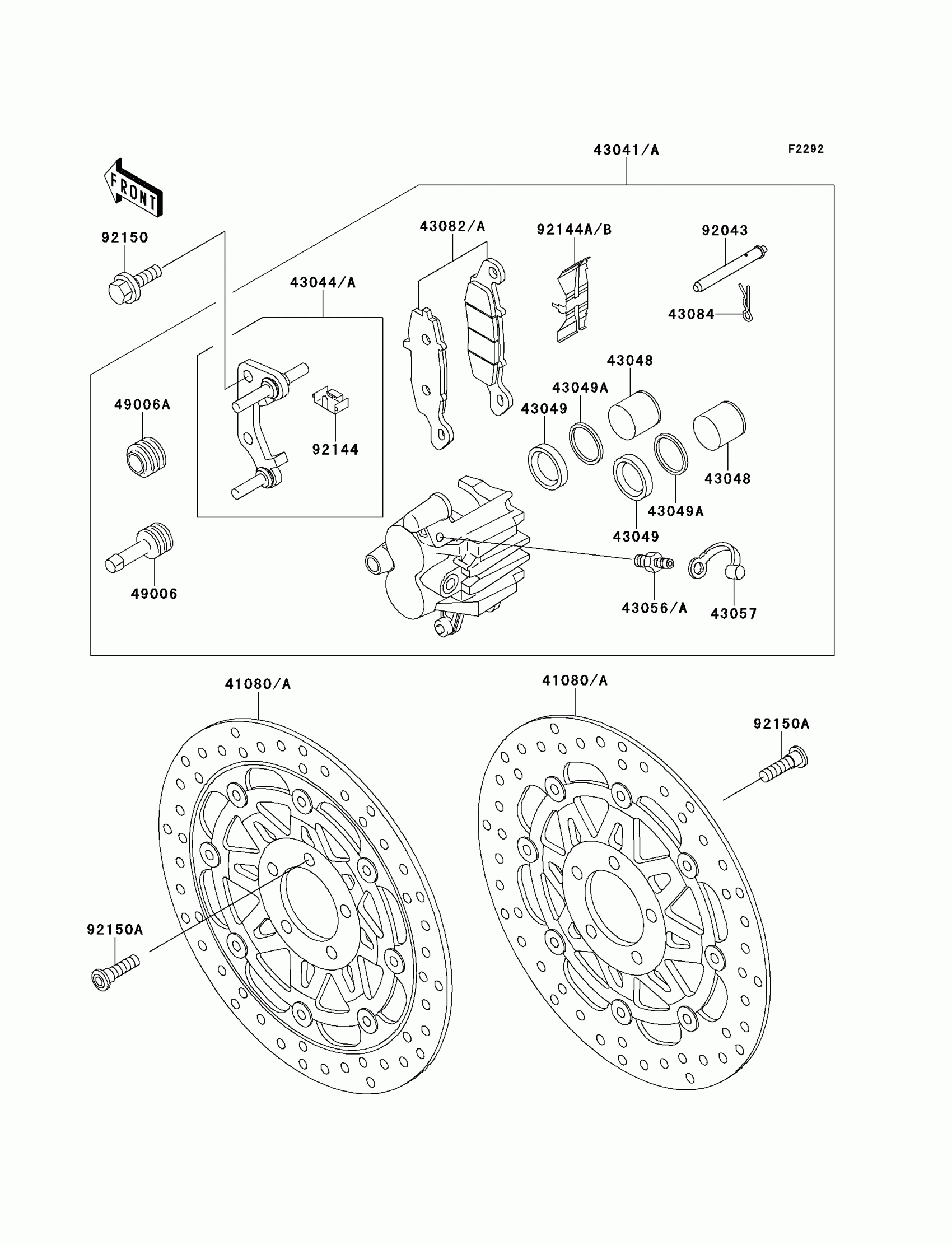

Kawasaki GPZ 1100 Front Brake Diagram

DISC,FR,GRAY/SILVER

CALIPER-ASSY,FR,LH,A.C.GRAY

CALIPER-ASSY,FR,RH,A.C.GRAY

HOLDER-COMP-CALIPER,FR,LH

HOLDER-COMP-CALIPER,FR,RH

PISTON-CALIPER

PACKING,PISTON SEAL

PACKING

BREATHER

BREATHER-BRAKE

CAP-BREATHER

PAD-ASSY-BRAKE,LH

PAD-ASSY-BRAKE,RH

CLAMP,PAD

BOOT,CALIPER

BOOT,CALIPER

PIN,PAD

SPRING,STOPPER

SPRING,PAD,LH

SPRING,PAD,RH

BOLT,FLANGED,10X38

BOLT,8X30
