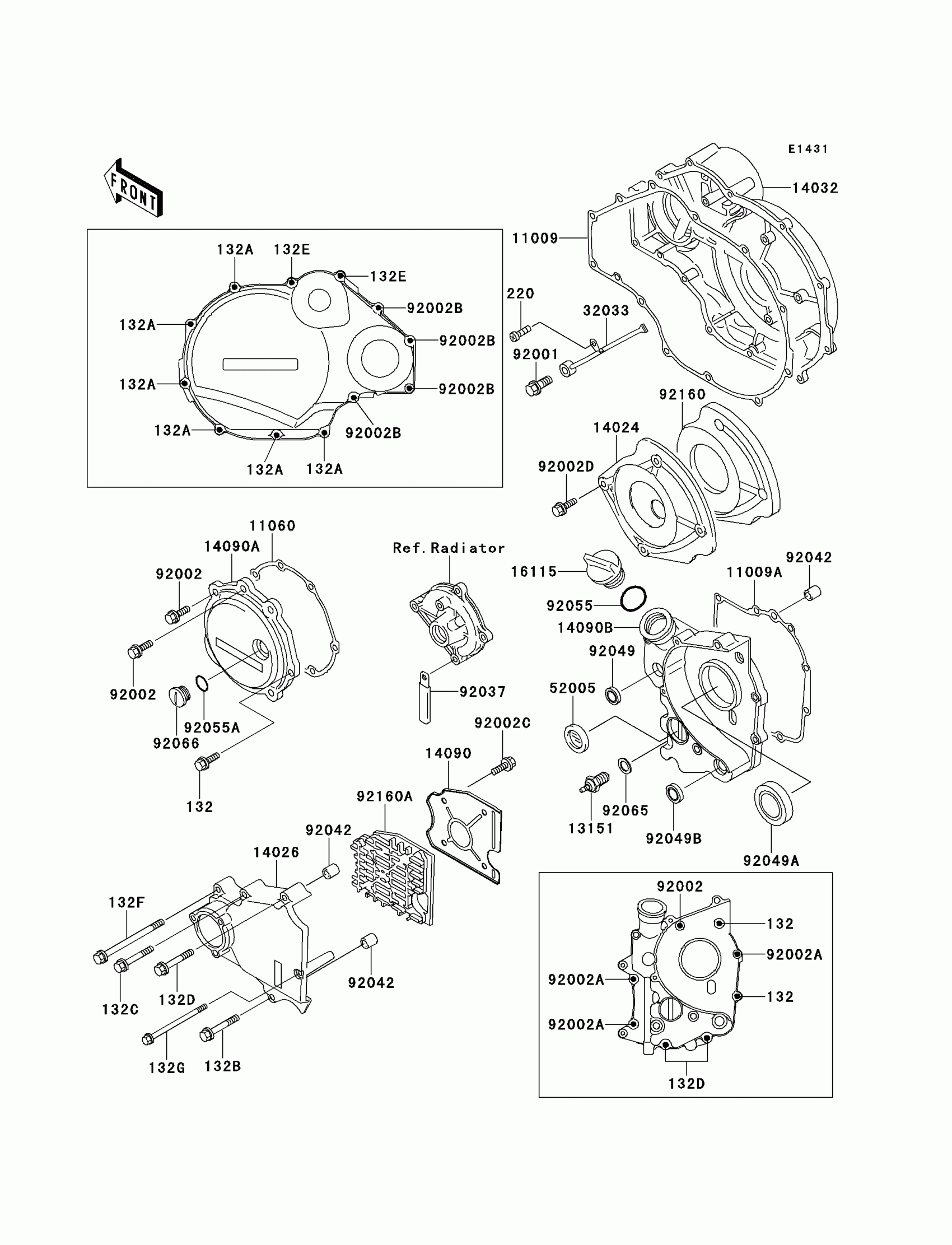

Kawasaki GPZ 1100 Engine Cover(s) Diagram
#
132
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
132A
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
132B
BOLT-FLANGED-SMALL,6X35
132J0635
$3.84
132C
BOLT-FLANGED-SMALL,6X40
132J0640
$4.44
132D
BOLT-FLANGED-SMALL,6X50
132J0650
$4.44
132E
BOLT-FLANGED-SMALL,6X55
132J0655
$4.44
132F
BOLT-FLANGED-SMALL
132J0665
$4.44
132G
BOLT-FLANGED-SMALL
132J0680
$5.55
220
SCREW PAN HEAD 5X10
220B0510
$0.69
11009
GASKET,CLUTCH COVER
11009-1860
Unavailable
11009A
GASKET,TRANSMISSION COVER
11009-1982
Unavailable
11060
GASKET,PULSING COVER
11060-1695
Unavailable
13151
SWITCH-COMP,NEUTRAL
13151-1080
$10.38
14024
COVER,SOUND ARRESTER
14024-1925
$18.03
14026
COVER-CHAIN
14026-1214
Unavailable
14032
COVER-CLUTCH
14032-1402
Unavailable
14090
COVER,SOUND ARRESTER
14090-1527
$33.37
14090A
COVER,PULSING
14090-1537
Unavailable
14090B
COVER,TRANSMISSION
14090-1538
Unavailable
16115
CAP-OIL FILLER
16115-1009
$14.30
32033
PIPE,CLUTCH COVER
32033-1204
$30.63
52005
GAUGE,OIL LEVEL
52005-1057
$25.24
92001
BOLT,BANJO,8X20
92001-1855
Unavailable
92002
BOLT,6X20
92002-1343
$6.56
92002A
BOLT,6X25
92002-1344
Unavailable
92002B
BOLT,6X40
92002-1345
$7.71
92002C
BOLT,6X10
92002-1449
$4.11
92002D
BOLT,6X10
92002-1541
$4.81
92037
CLAMP,WIRING HARNESS,L=60
92037-1069
Unavailable
92042
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92049
SEAL-OIL,SD-8187
92049-1017
$9.89
92049A
SEAL-OIL,AE2343F0
92049-1070
$16.56
92049B
SEAL-OIL,TB13205
92049-1186
$8.47
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,20X2
92055-1146
$8.58
92065
GASKET,10.5X16X1
92065-058
$3.96
92066
PLUG,COVER
92066-1163
$14.76
92160
DAMPER,SOUND ARRESTER
92160-1567
Unavailable
92160A
DAMPER,SOUND ARRESTER
92160-1568
Unavailable
