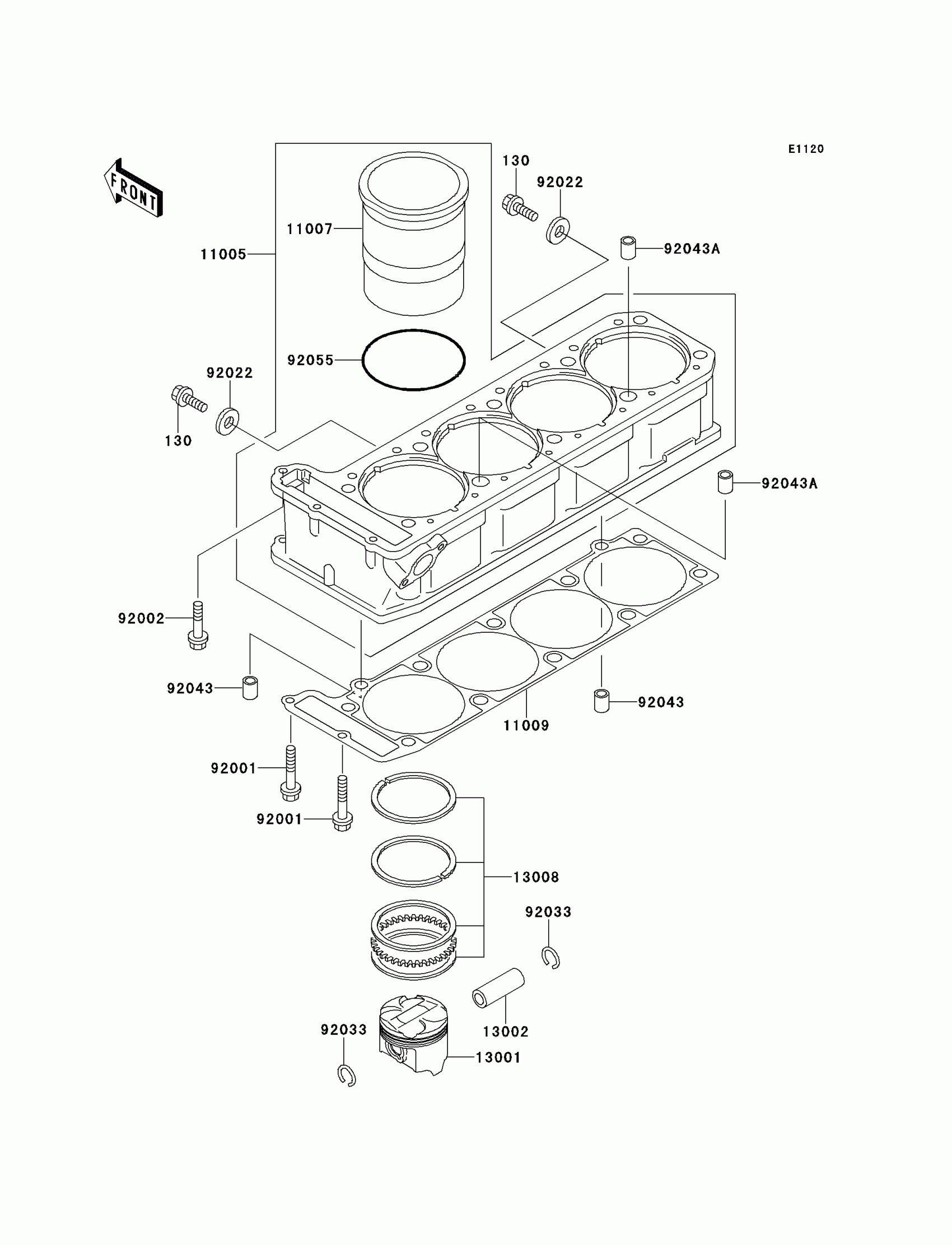

Kawasaki GPZ 1100 Cylinder/Piston(s) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130C0610

Unavailable

11005

CYLINDER-ENGINE

11005-1765

Unavailable

11007

LINER-CYLINDER

11007-1114

$172.81

11009

GASKET,CYLINDER BASE

11009-1847

$36.58

13001

PISTON-ENGINE

13001-1397

$152.05

13002

PIN-PISTON

13002-1058

$25.10

13008

RING-SET-PISTON

13008-1152

$80.38

92001

BOLT,6X38

92001-1899

$3.92

92002

BOLT,FLANGED,M6X30

92002-1138

$3.88

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55

92043

PIN,8.2X10X14

92043-1264

$0.51

92043A

PIN,11.5X14X14

92043-1279

$3.81

92055

RING-O,82.6X2.4

92055-1465

$5.95
