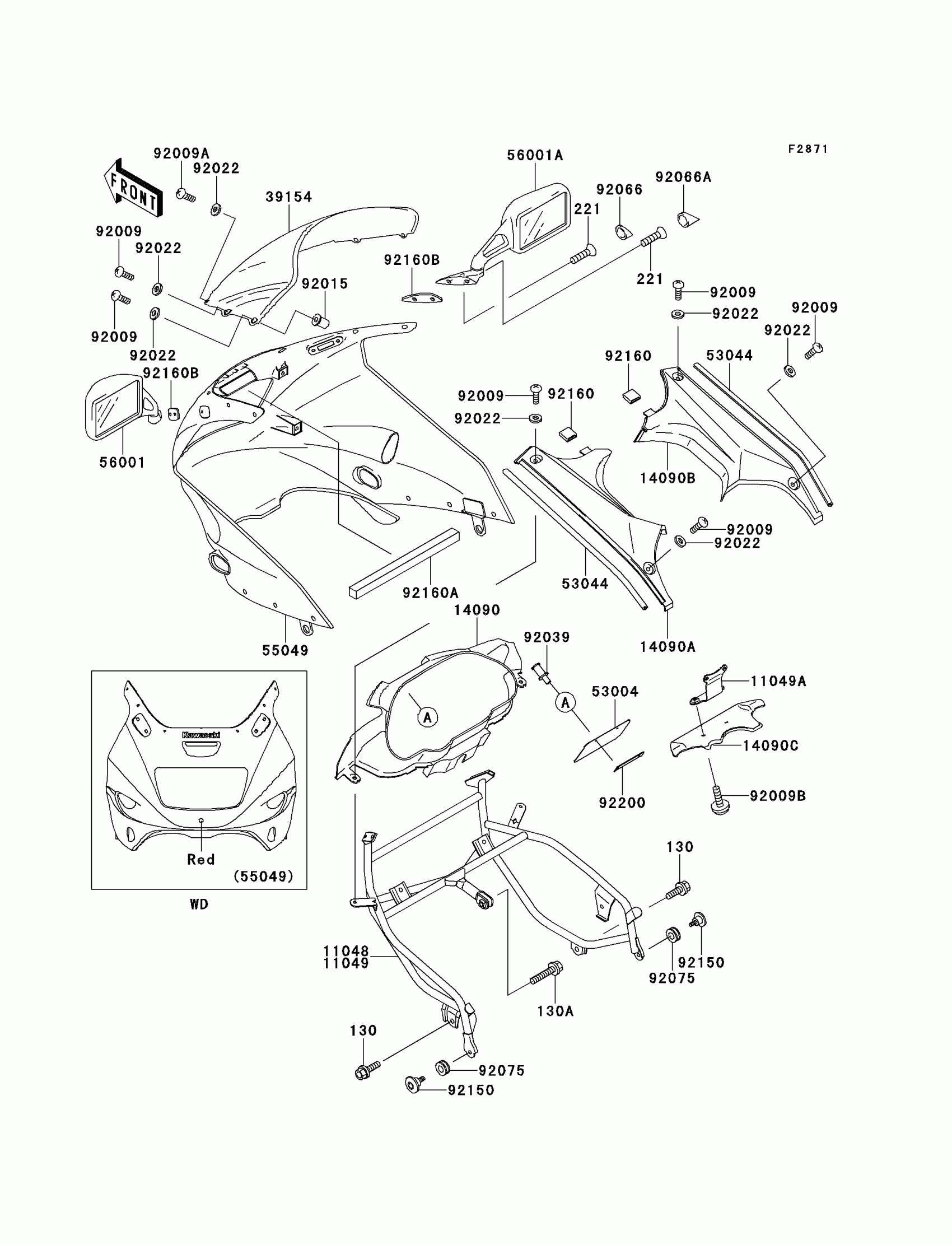

Kawasaki GPZ 1100 Cowling (ZX1100-E1) Diagram
#
Description
Price
130
BOLT-FLANGED,8X12
130J0812
$0.67
130A
BOLT-FLANGED,8X25,BLACK
130J0825
$4.15
221
SCREW-CSK-CROS,6X25,BLACK
221C0625
$4.89
11049A
BRACKET
11049-1267
Unavailable
14090
COVER,INNER,FR
14090-1546
Unavailable
14090A
COVER,INNER,LH
14090-1547
Unavailable
14090B
COVER,INNER,RH
14090-1548
Unavailable
14090C
COVER
14090-1616
Unavailable
39154
WINDSHIELD
39154-1130
Unavailable
53004
MAT,INNER COVER
53004-1094
Unavailable
53044
TRIM,L=404
53044-1284
$8.76
55049
COWLING.,UPP,C.P.RED
55049-5395-A5
Unavailable
56001
MIRROR-ASSY,LH
56001-1305
Unavailable
56001A
MIRROR-ASSY,RH
56001-1306
Unavailable
92009
SCREW,5X16,BLACK
92009-1654
$3.13
92009A
SCREW,5X20,BLACK
92009-1656
$3.96
92009B
SCREW,6X10
92009-1661
$4.31
92015
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,NYLON,5.3X11.5X1.5
92022-1521
$3.92
92039
RIVET
92039-1147
$5.59
92066
PLUG
92066-1428
$4.63
92066A
PLUG
92066-1429
$3.99
92075
DAMPER
92075-1634
$4.69
92150
BOLT,SOCKET,6MM
92150-1154
$7.84
92160
DAMPER
92160-1190
$4.08
92160A
DAMPER
92160-1646
$11.49
92160B
DAMPER,MIRROR
92160-1665
Unavailable
92200
WASHER,MAT
92200-1267
Unavailable
11048
BRACKET,UPP COWLING
11048-1987
Unavailable
11049
BRACKET,UPP COWLING
11049-1065
Unavailable
