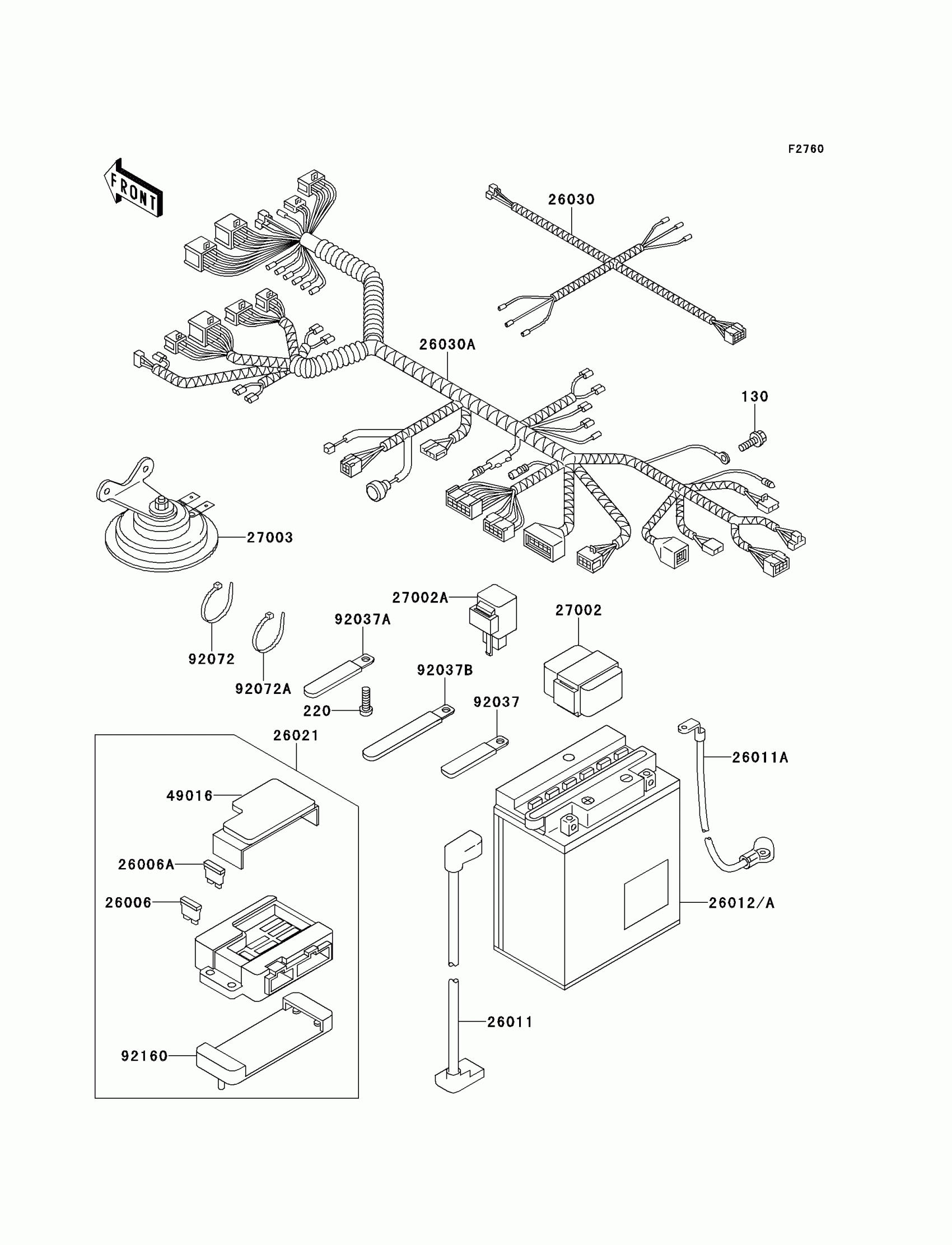

Kawasaki GPZ 1100 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

$2.19

220

SCREW-PAN-CROS,5X10

220C0510

$3.57

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1615

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1616

Unavailable

26012A

BATTERY,YTX14-BS,12V 12AH

26012-1334

$123.84

26021

JUNCTION BOX

26021-1096

$168.61

26030

HARNESS,FR

26030-1340

Unavailable

26030A

HARNESS,MAIN

26030-1342

Unavailable

27002

RELAY-ASSY

27002-1065

$52.76

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1092

$72.36

27003

HORN

27003-1385

Unavailable

49016

COVER-SEAL,FUSE

49016-1177

$9.54

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,L=45

92037-1539

$5.00

92037B

CLAMP

92037-1993

$5.52

92072

BAND,L=202

92072-1195

$1.56

92072A

BAND,L=365

92072-1197

$7.84

92160

DAMPER,JUNCTION BOX

92160-1650

$13.44
