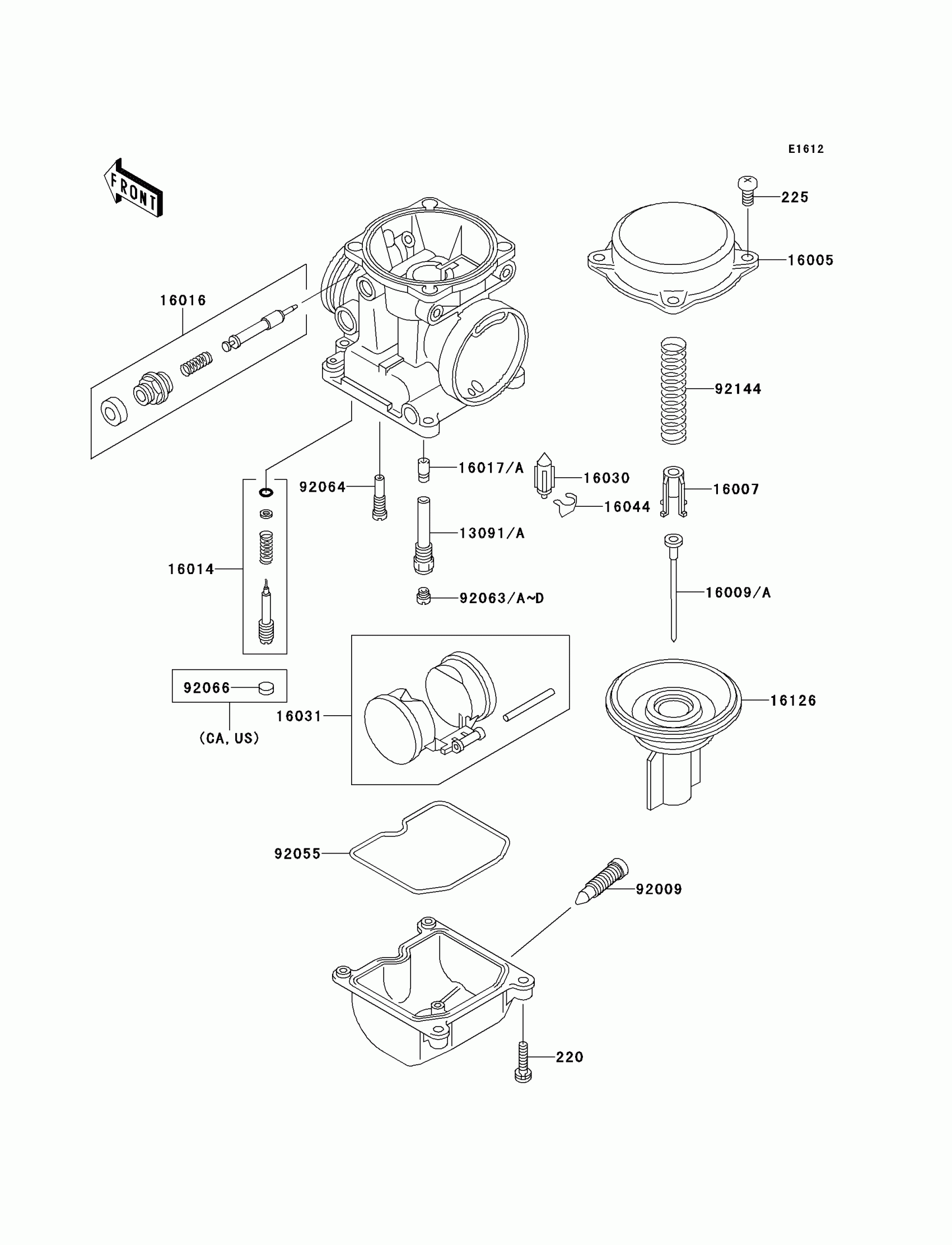

Kawasaki GPZ 1100 Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X14

220D0414

$4.60

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

13091

HOLDER,NEEDLE JET

13091-1425

$29.68

13091A

HOLDER,NEEDLE JET,0.6X18

13091-1925

$30.79

16005

TOP-CHAMBER,MIXING

16005-1054

$45.23

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,N2LB

16009-1856

$39.96

16009A

NEEDLE-JET,N2LC

16009-1857

$39.96

16014

SCREW-PILOT AIR

16014-1080

$22.09

16016

PLUNGER,STARTER

16016-1090

$66.52

16017

JET-NEEDLE

16017-1265

Unavailable

16030

VALVE-FLOAT

16030-1057

$47.13

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1170

$200.34

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#105

92063-1009

$15.76

92063A

JET-MAIN,#110

92063-1114

$14.79

92063B

JET-MAIN,#108

92063-1116

$14.79

92063C

JET-MAIN,#112

92063-1117

$14.79

92063D

JET-MAIN,#115

92063-1118

$14.79

92064

JET-PILOT,#35

92064-1101

$17.03

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92144

SPRING,VACUUM VALVE

92144-1219

$20.91
