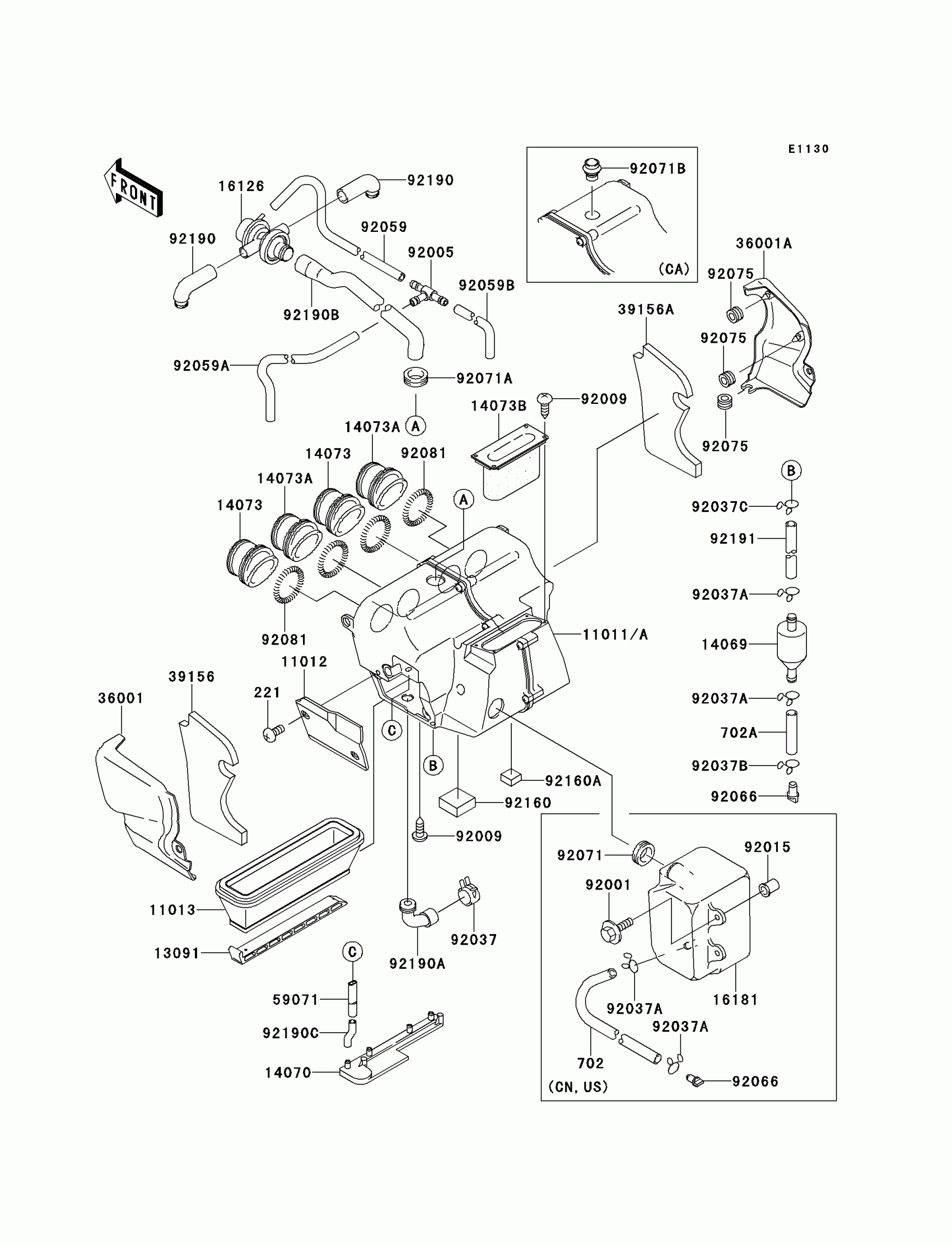

Kawasaki GPZ 1100 Air Cleaner Diagram
#
11011
CASE-AIR FILTER
11011-1450
Unavailable
11012
CAP,AIR FILTER
11012-1910
$47.83
11013
ELEMENT-AIR FILTER
11013-1242
$36.52
13091
HOLDER,AIR FILTER
13091-1900
Unavailable
14069
BREATHER
14069-1051
$10.19
14070
BODY-BREATHER
14070-1083
Unavailable
14073
DUCT,#1,#3
14073-1273
$30.26
14073A
DUCT,#2,#4
14073-1274
$28.37
14073B
DUCT
14073-1630
Unavailable
16126
VALVE,AIR SWITCH
16126-1144
$200.34
16181
TANK-RESONATOR
16181-1076
Unavailable
36001
COVER-SIDE,AIR FILTER,LH
36001-1548
Unavailable
36001A
COVER-SIDE,AIR FILTER,RH
36001-1549
Unavailable
39156
PAD
39156-1485
Unavailable
39156A
PAD
39156-1486
$6.46
59071
JOINT
59071-1154
Unavailable
92001
BOLT,6X20,W/WASHER
92001-1791
Unavailable
92005
FITTING,TUBE,T-TYPE
92005-1017
Unavailable
92009
SCREW,TAPPING,4X12
92009-1444
$3.21
92015
NUT
92015-1700
$8.58
92037
CLAMP,HOSE CLIP
92037-1460
$10.81
92037A
CLAMP,TUBE
92037-147
$7.34
92037B
CLAMP
92037-1712
$5.00
92037C
CLAMP,TUBE
92037-1972
$4.31
92059
TUBE,4X9X220
92059-1040
$10.19
92059A
TUBE,4X9X230
92059-1068
$19.09
92059B
TUBE,4X9X80
92059-1365
$13.61
92066
PLUG,DRAIN
92066-1211
$8.51
92071
GROMMET,AIR FILTER
92071-1013
$6.46
92071A
GROMMET,AIR FILTER
92071-1028
$7.27
221
SCREW-CSK-CROS
221C0616
Unavailable
702
TUBE-RUBBER
702A07390
$7.92
702A
TUBE-RUBBER,7X10X60
702A0760
$3.70
92075
DAMPER
92075-1470
$7.40
92081
SPRING,COIL,BLACK
92081-1457
$11.40
92160
DAMPER
92160-1572
Unavailable
92160A
DAMPER
92160-1664
Unavailable
92190
TUBE
92190-1436
$11.80
92190A
TUBE
92190-1584
Unavailable
92190B
TUBE,AIR SWITCH-AIR FILTER
92190-1585
Unavailable
92190C
TUBE
92190-1605
Unavailable
92191
TUBE
92191-1006
$10.79
