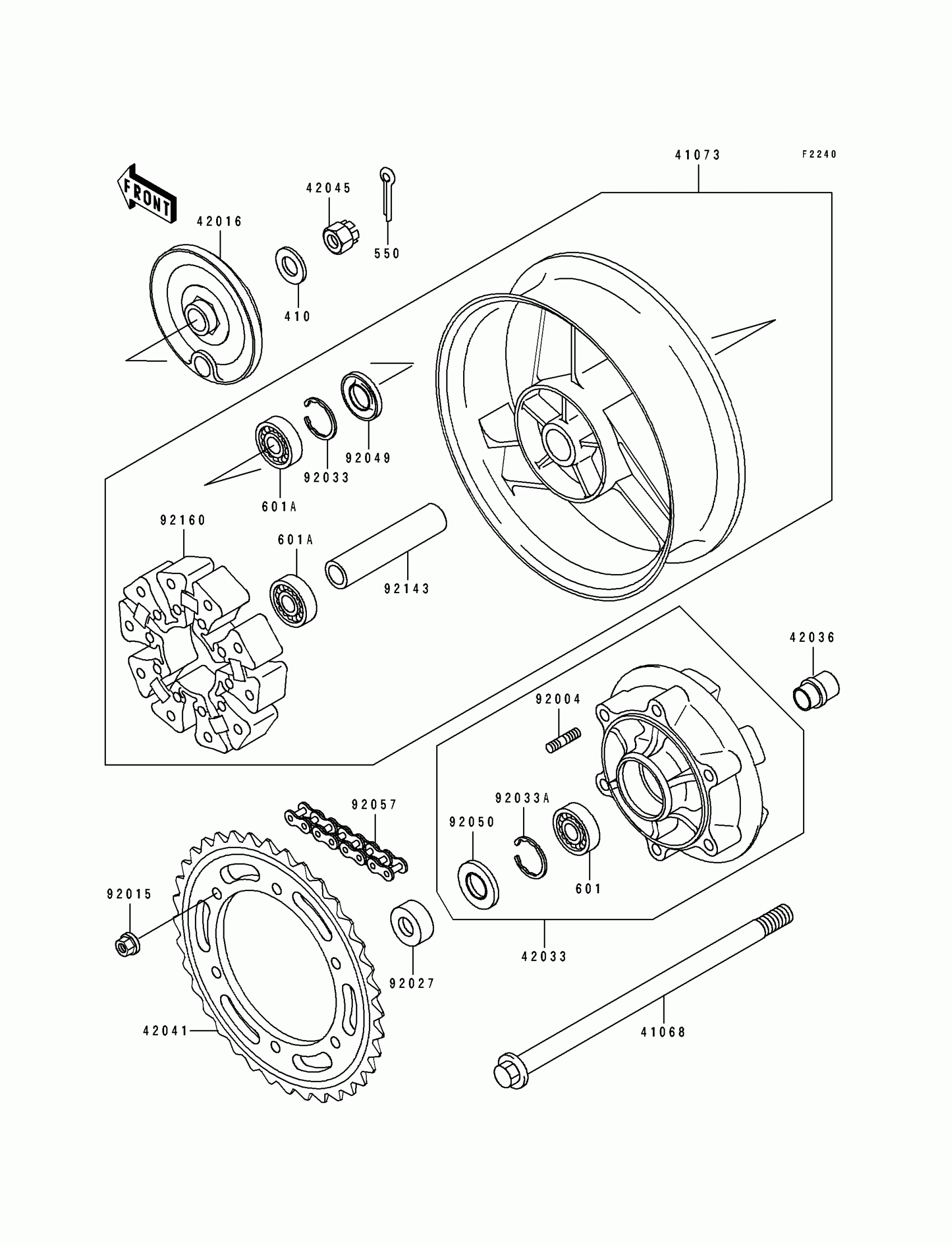

Kawasaki GPZ 1100 ABS Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-1350

$163.90

41073

WHEEL-ASSY,RR,C.GRAY

41073-1594-DH

$884.36

42016

PANEL-REAR BRAKE

42016-1167

Unavailable

42033

COUPLING-ASSY,RR HUB,C.GRAY

42033-1160-EZ

$345.60

42036

SLEEVE,RR AXLE,L=45

42036-1302

$38.24

42041

SPROCKET-HUB,45T

42041-1283

$119.30

42045

NUT,CASTLE,18MM

42045-018

$9.23

92004

STUD,10X24

92004-1146

$5.60

92015

NUT,10MM

92015-1720

$5.24

92027

COLLAR,20X40X16.5

92027-1287

$35.25

92033

RING-SNAP,52MM

92033-1043

$8.05

92033A

RING-SNAP,62MM

92033-1044

$11.29

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92050

SEAL-OIL,AJN40627

92050-027

$20.96

92057

CHAIN,DRIVE,EK50UV-XX112L

92057-1385

$293.45

92143

COLLAR,REAR AXLE,L=116

92143-1390

$40.70

92160

DAMPER,SHOCK,RR HUB

92160-1398

$128.27

410

W-PLAN-S,18MM

410D1800

$1.83

550

PIN-COTTER,4.0X35

550D4035

$2.17

601

BEARING-BALL,#6206UUC3

601B6206UU

$40.38

601A

BEARING-BALL,#6304UUC3

601B6304UU

$34.48
