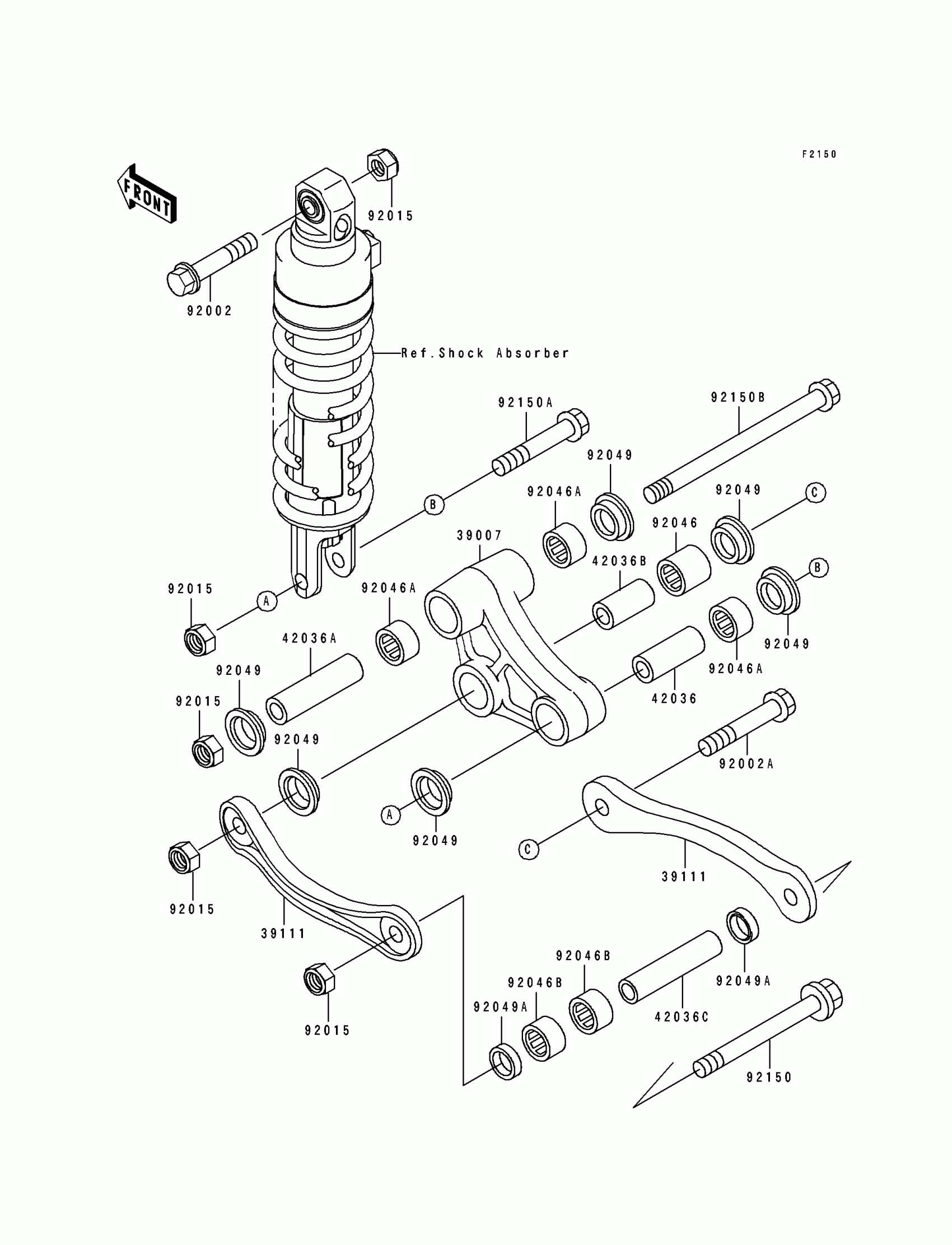

Kawasaki GPZ 1100 ABS Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1238

Unavailable

39111

ROD-TIE,SUSPENSION

39111-1140

Unavailable

42036

SLEEVE,12.1X20X32

42036-1077

$16.69

42036A

SLEEVE,12.1X20X70

42036-1079

$28.64

42036B

SLEEVE,12.1X20X50

42036-1111

$21.99

42036C

SLEEVE,12.1X18X82

42036-1231

$25.83

92002

BOLT,12X55

92002-1130

$10.65

92002A

BOLT,SUSPENSION ARM,12MM

92002-1785

$15.39

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92046B

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,MHA18244

92049-1225

$9.28

92150

BOLT,FLANGED,12X110

92150-1088

$14.27

92150A

BOLT,FLANGED,12X63

92150-1258

$12.71

92150B

BOLT,FLANGED,12X165

92150-1931

$24.03
