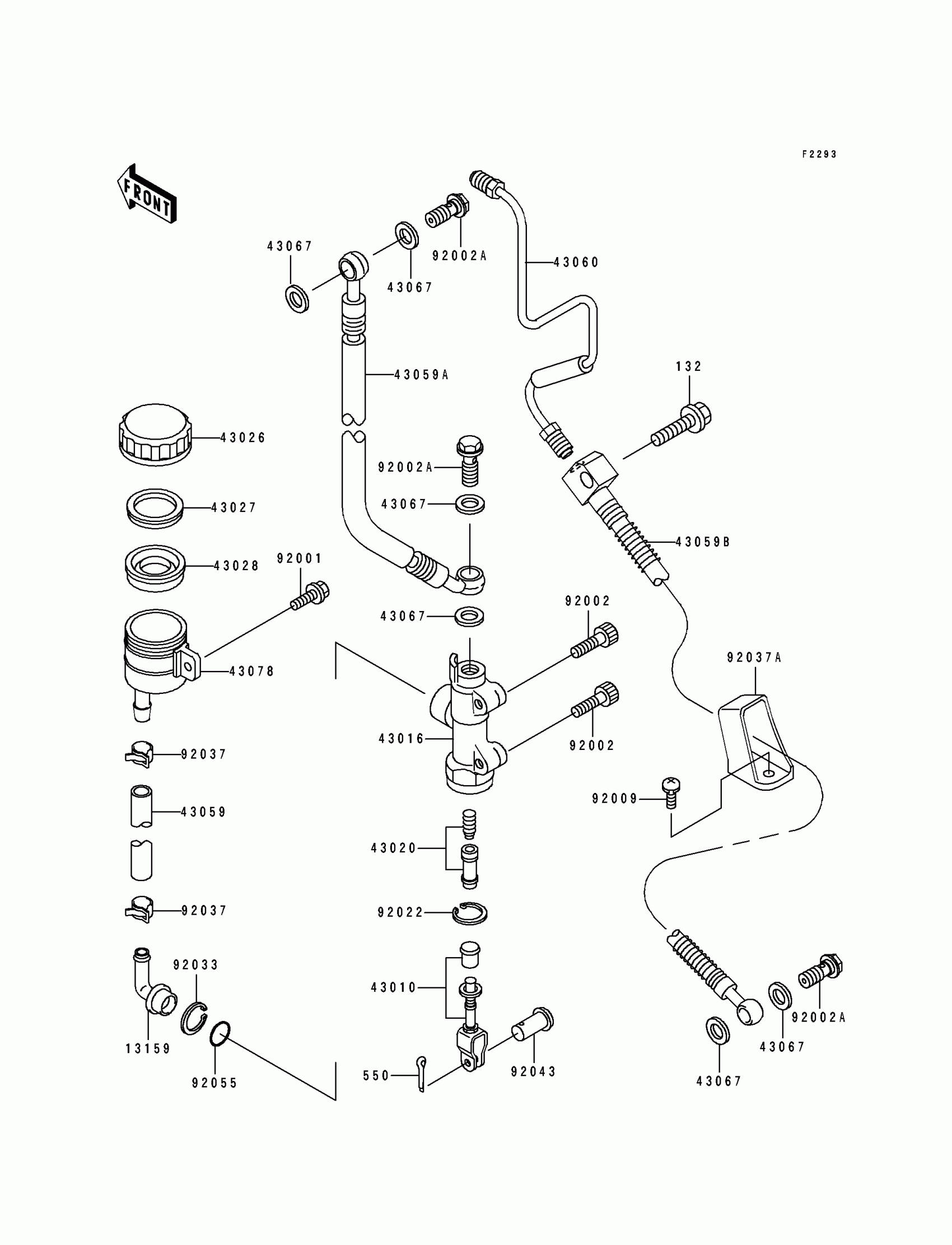

Kawasaki GPZ 1100 ABS Rear Master Cylinder Diagram

#

Description
Price

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1073

Unavailable

43016

CYLINDER-MASTER

43016-1123

Unavailable

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1369

$38.47

43059A

HOSE-BRAKE,RR

43059-1917

Unavailable

43059B

HOSE-BRAKE,RR

43059-1958

Unavailable

43060

PIPE-BRAKE,RR

43060-1107

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

92001

BOLT,W/P,6X16

92001-1860

$3.85

92002

BOLT,SOCKET,8X30

92002-1179

$5.53

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92009

SCREW,6X10

92009-1402

$1.73

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1896

$22.64

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

132

BOLT-FLANGED-SMALL,8X30

132J0830

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
