1996 Kawasaki GPZ 1100 ABS Front Master Cylinder Diagram

← All diagrams

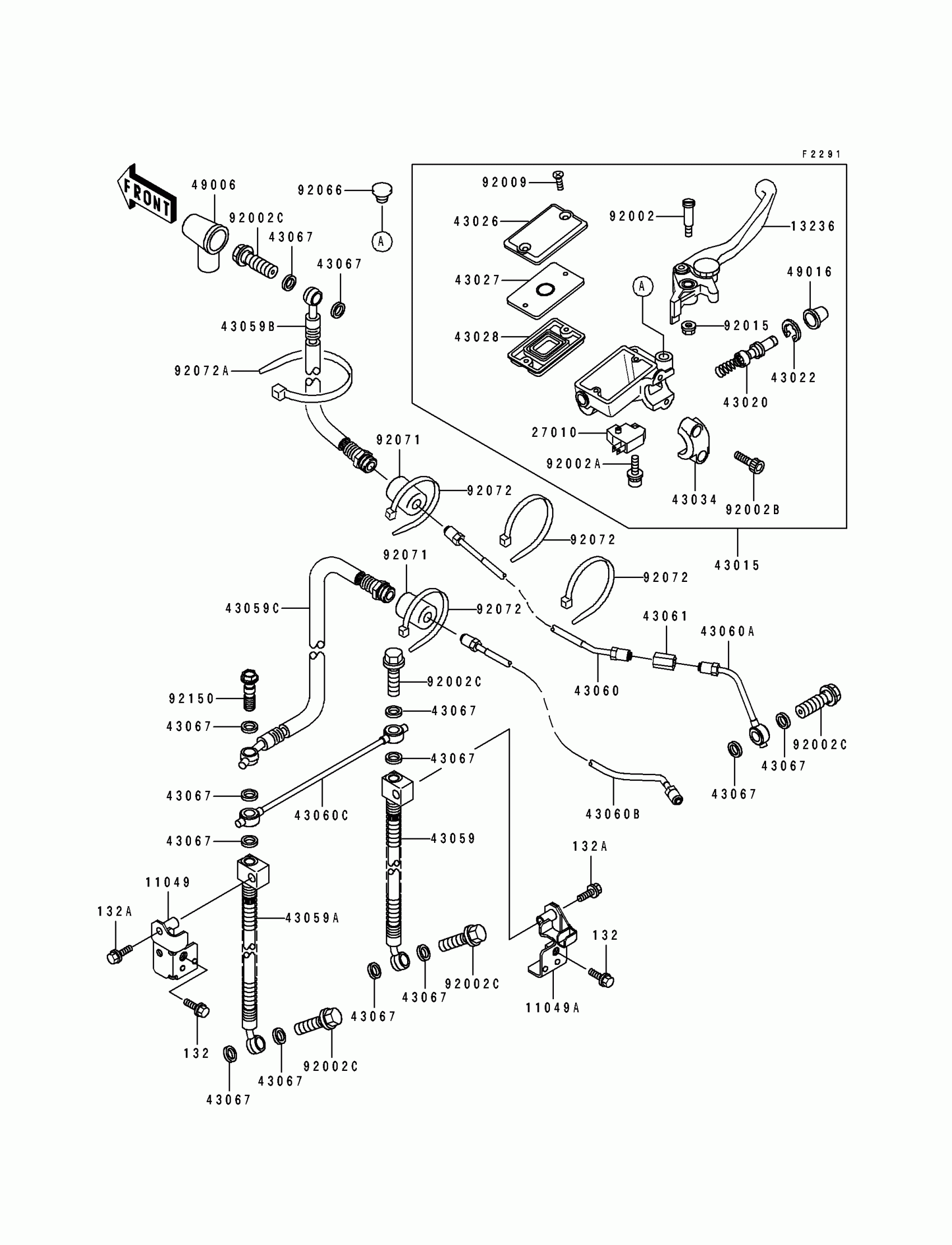

Find the part on the Front Master Cylinder diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki GPZ 1100 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11049

BRACKET,FRONT CALIPER,LH

11049-1425

1
Out of stock

11049A

BRACKET,FRONT CALIPER,RH

11049-1451

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1185

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1498

1
Out of stock

43020

PISTON-COMP-BRAKE,FR

43020-1054

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1076

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1055

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

1
Out of stock

43059

HOSE-BRAKE,FR

43059-1916

1
Out of stock

43059A

HOSE-BRAKE,FR

43059-1925

1
Out of stock

43059B

HOSE-BRAKE,FR

43059-1956

1
Out of stock

43059C

HOSE-BRAKE,FR

43059-1957

1
Out of stock

43060

PIPE-BRAKE,FR

43060-1104

1
Out of stock

43060A

PIPE-BRAKE,FR

43060-1105

1
Out of stock

43060B

PIPE-BRAKE,FR

43060-1106

1
Out of stock

43060C

PIPE-BRAKE,FR

43060-1108

1
Out of stock

43061

JOINT-BRAKE

43061-1073

1
Out of stock

43067

WASHER,10.5X15X1.5

43067-001

1
Out of stock

49006

BOOT,DUST

49006-1040

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

1
Out of stock

92002C

BOLT,OIL,L=23

92002-1888

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92071

GROMMET

92071-1143

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,L=365

92072-1197

1
Out of stock

92150

BOLT

92150-1136

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132E0630

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X25

132J0825

1
Out of stock
