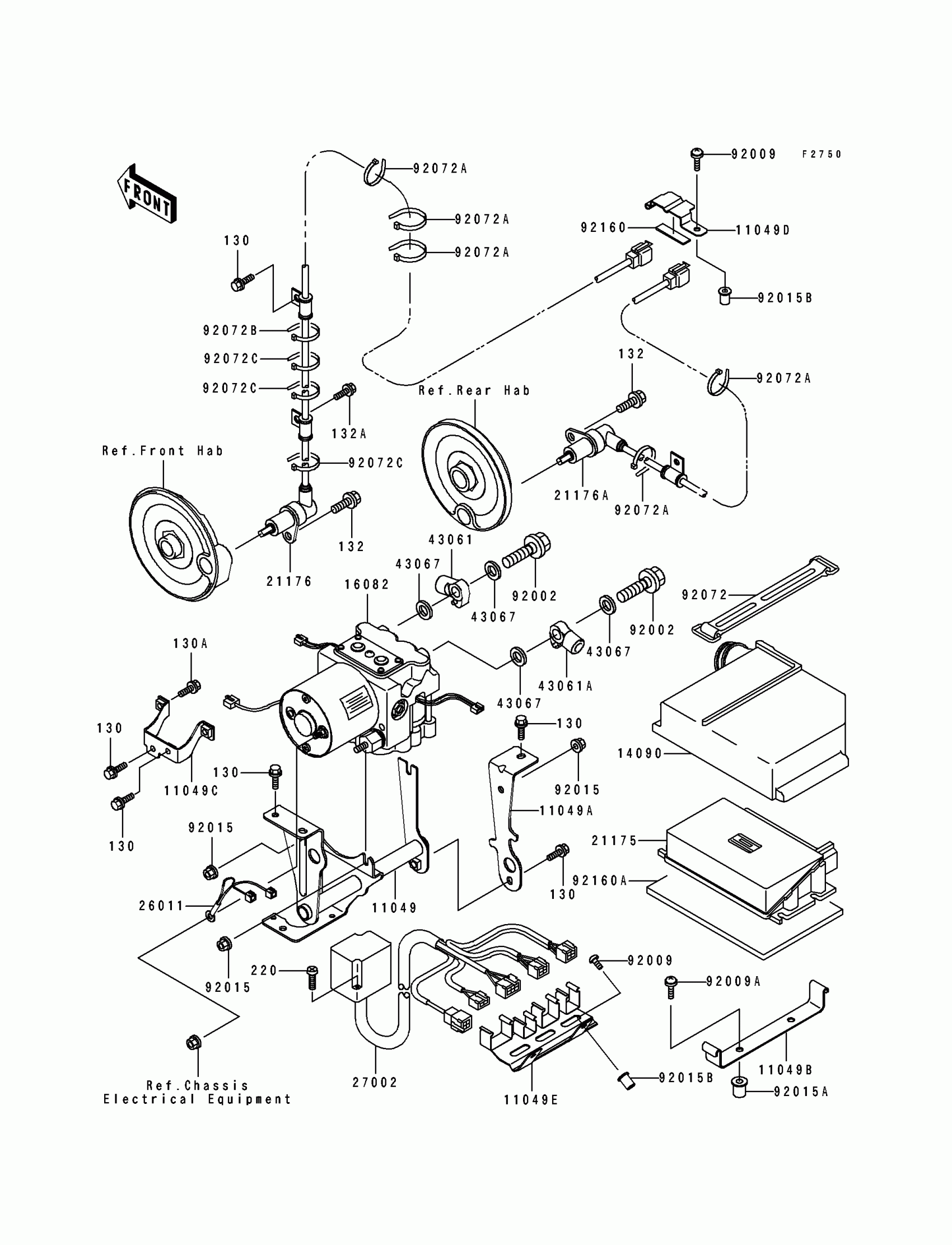

Kawasaki GPZ 1100 ABS Other Diagram
#
11049
BRACKET,OIL PUMP,LH
11049-1289
Unavailable
11049A
BRACKET,OIL PUMP,RH
11049-1290
Unavailable
11049B
BRACKET,E.CONTROL UNIT
11049-1291
Unavailable
11049C
BRACKET,FUSE
11049-1321
Unavailable
11049D
BRACKET,SENSOR
11049-1441
Unavailable
11049E
BRACKET,CONNECTOR
11049-1442
Unavailable
14090
COVER,E.CONTROL UNIT
14090-1627
Unavailable
16082
PUMP-ASSY-OIL
16082-1141
Unavailable
21175
CONTROL UNIT-ELECTRONIC
21175-1060
Unavailable
21176
SENSOR,FR
21176-1071
Unavailable
21176A
SENSOR,RR
21176-1072
Unavailable
26011
WIRE-LEAD,(-)
26011-1645
Unavailable
27002
RELAY-ASSY
27002-1094
Unavailable
43061
JOINT-BRAKE,OIL PUMP
43061-1074
Unavailable
43061A
JOINT-BRAKE,OIL PUMP
43061-1075
Unavailable
43067
WASHER,10.5X15X1.5
43067-001
$2.15
92002
BOLT,OIL,L=23
92002-1888
$5.48
92009
SCREW,5X14,WHITE
92009-1366
$3.92
92009A
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT
92015-1700
$8.58
92015B
NUT,WELL,5MM
92015-1757
$7.29
92072
BAND,L=146.9
92072-054
$15.34
92072A
BAND,L=202
92072-1195
$1.56
92072B
BAND,L=365
92072-1197
$7.84
92072C
BAND,L=100
92072-1250
Unavailable
92160
DAMPER
92160-1099
$4.80
92160A
DAMPER,E.CONTROL UNIT
92160-1647
Unavailable
130
BOLT-FLANGED
130J0610
$2.33
130A
BOLT-FLANGED,6X14,BLACK
130J0614
$2.33
132
BOLT-FLANGED-SMALL,8X16
132E0816
$5.23
132A
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
220
SCREW-PAN-CROS
220C0430
$3.57
