Description

Price

14090

COVER,METER HOUSING

14090-1621

Unavailable

23008

SOCKET-ASSY,METER

23008-1552

Unavailable

25005

SPEEDOMETER,MPH

25005-1578

Unavailable

25008

BRACKET-METER

25008-1199

$85.12

25015

TACHOMETER,X1000R/MIN

25015-1332

Unavailable

25023

COVER-METER CASE,UPP

25023-1219

$149.12

25030

CLOCK,DIGITAL

25030-1003

$505.82

28011

METER,FUEL

28011-1145

$86.18

28011A

METER,TEMP

28011-1146

$98.63

92009

SCREW,TAPPING,3X12

92009-1255

$3.65

92009A

SCREW,TAPPING,4X14

92009-1503

$3.65

92022

WASHER,6.2X18X1.2

92022-1369

$3.94

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 1.7W,T10

92069-1059

$4.96

92077

KNOB,TRIP RESET

92077-1094

$9.05

92077A

KNOB,TRIP RESET

92077-1112

$9.13

92160

DAMPER

92160-1461

$7.49

130

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

311

NUT 6MM

311B0600

$0.93

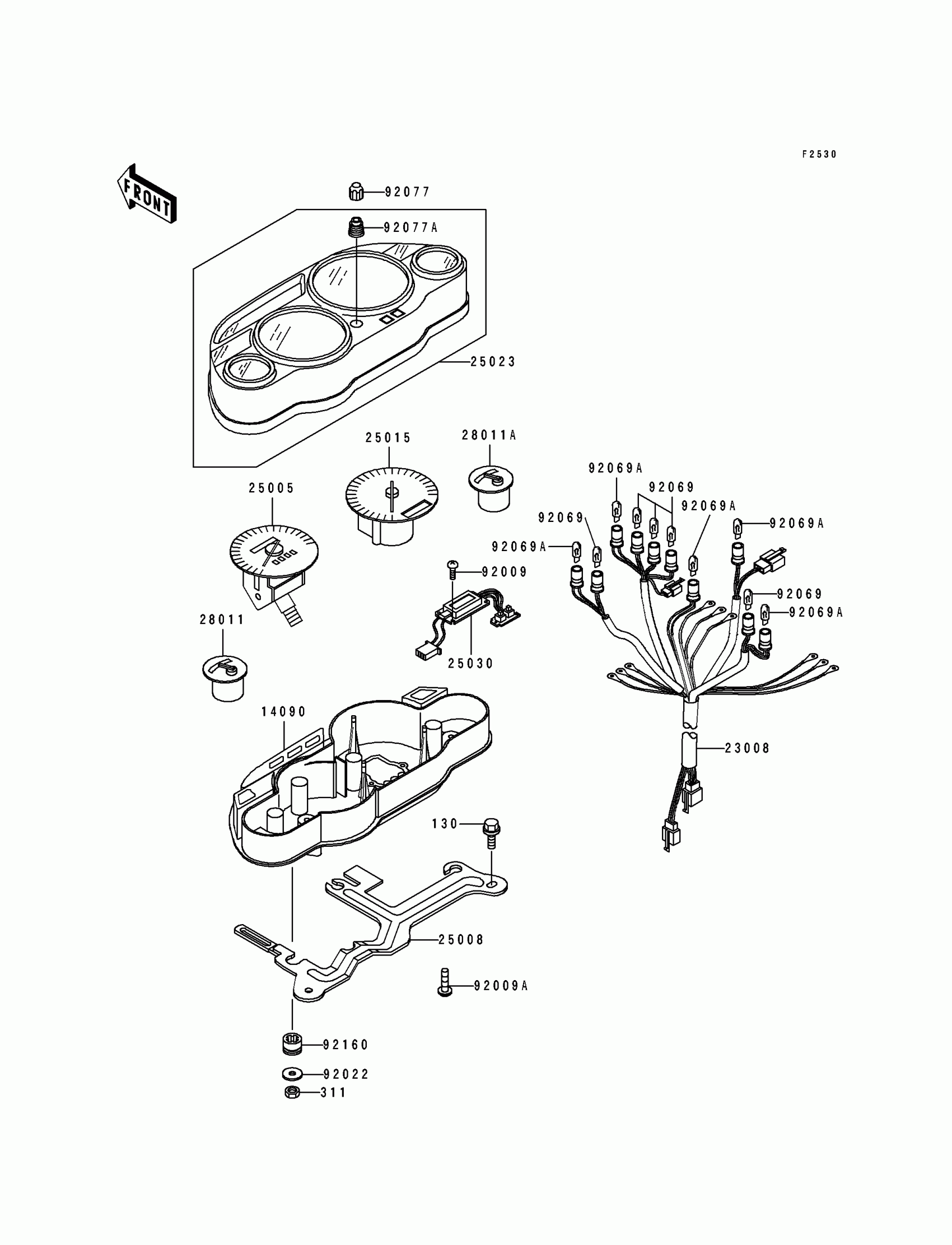

Kawasaki GPZ 1100 ABS Meter(s) Diagram

COVER,METER HOUSING

SOCKET-ASSY,METER

SPEEDOMETER,MPH

BRACKET-METER

TACHOMETER,X1000R/MIN

COVER-METER CASE,UPP

CLOCK,DIGITAL

METER,FUEL

METER,TEMP

SCREW,TAPPING,3X12

SCREW,TAPPING,4X14

WASHER,6.2X18X1.2

BULB,12V 3.4W,T10

BULB,12V 1.7W,T10

KNOB,TRIP RESET

KNOB,TRIP RESET

DAMPER

BOLT-FLANGED,6X14,BLACK

NUT 6MM
