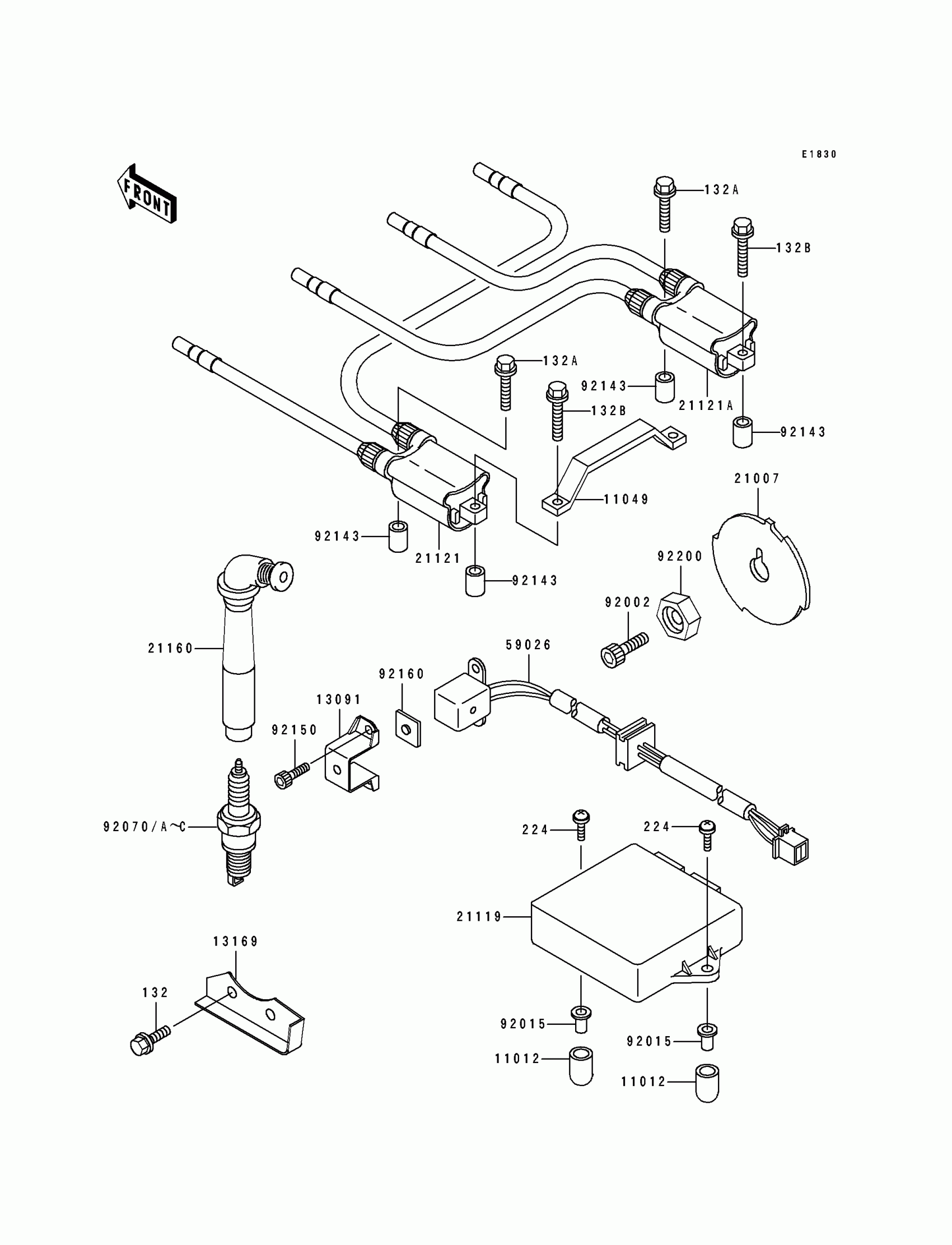

Kawasaki GPZ 1100 ABS Ignition System Diagram

#

Description
Price

11012

CAP

11012-1438

$4.96

11049

BRACKET,IGNITION COIL

11049-1301

Unavailable

13091

HOLDER

13091-1562

$8.96

13169

PLATE,CHAIN GUIDE

13169-1748

$15.45

21007

ROTOR,PULSING

21007-1280

$40.39

21119

IGNITER

21119-1439

$575.87

21121

COIL-IGNITION,#1

21121-1243

Unavailable

21121A

COIL-IGNITION,#2

21121-1244

Unavailable

21160

CAP-ASSY-PLUG

21160-1087

$54.45

59026

COIL-PULSING

59026-1132

$147.42

92002

BOLT,SOCKET,8X25

92002-1442

$5.05

92015

NUT

92015-1700

$8.58

92070

PLUG-SPARK,CR9EK(NGK)

92070-1145

$10.53

92070A

PLUG-SPARK,CR8EK(NGK)

92070-1158

$10.53

92070B

Not Available As Spare Part - Friction Washer

Unavailable

92070C

Not Available As Spare Part - Friction Washer

Unavailable

92143

COLLAR

92143-1729

Unavailable

92150

BOLT,SOCKET,5X14

92150-1180

$3.92

92160

DAMPER

92160-1091

$5.24

92200

WASHER,ROTOR

92200-1173

$9.59

132

BOLT-FLANGED-SMALL

132G0612

$1.17

132A

BOLT-FLANGED-SMALL,6X35

132Y0635

$3.84

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

$4.80

224

SCREW-PAN-WP-CROS

224C0625

$1.00
