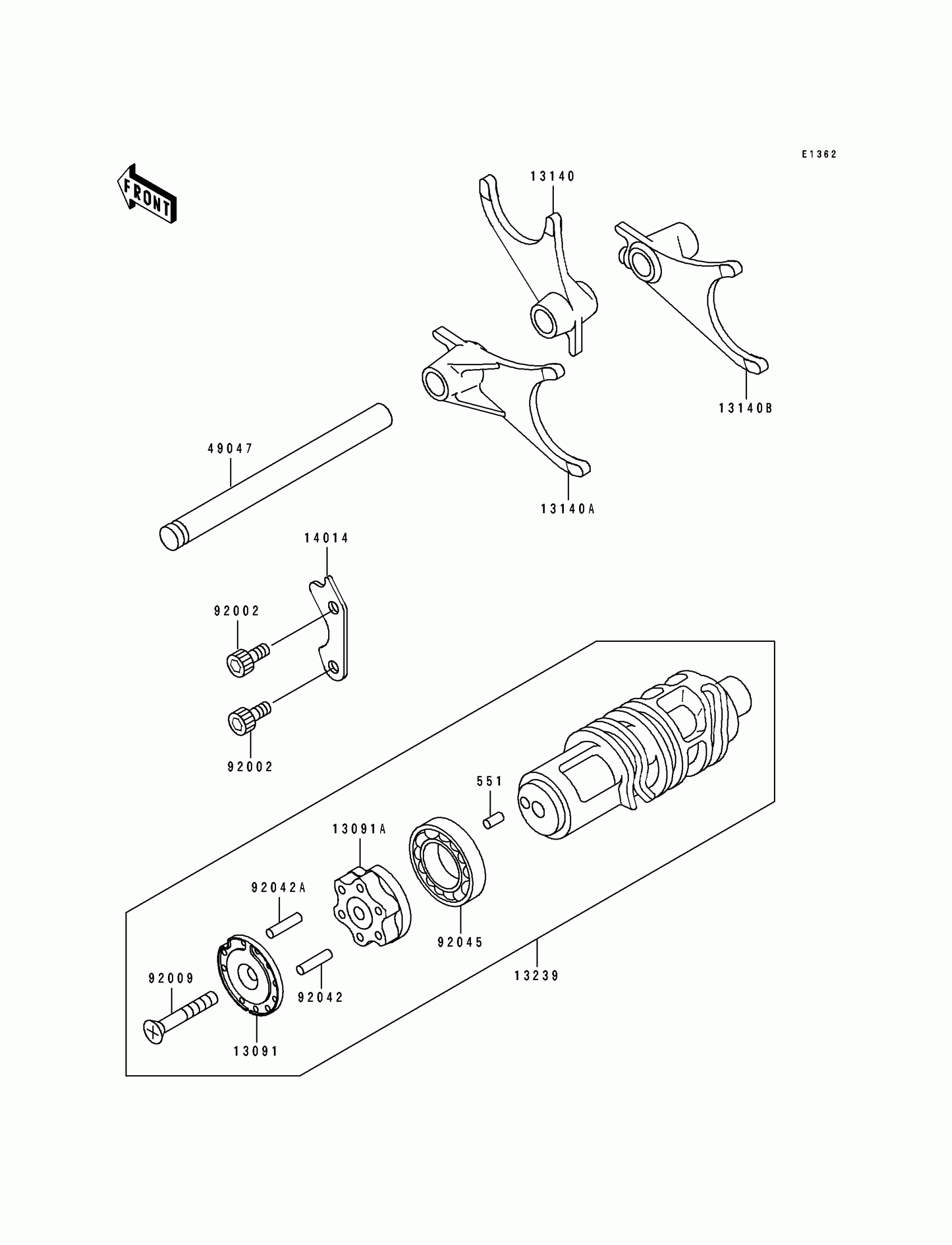

Kawasaki GPZ 1100 ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13091

HOLDER,NEUTRAL

13091-1334

$26.22

13091A

HOLDER,CHANGE DRUM

13091-1834

Unavailable

13140

FORK-SHIFT

13140-1196

$101.44

13140A

FORK-SHIFT

13140-1197

$101.44

13140B

FORK-SHIFT

13140-1198

$101.44

13239

DRUM-ASSY-CHANGE

13239-1184

$219.91

14014

PLATE-POSITION,CHANGE DRUM

14014-1059

$14.76

49047

ROD-SHIFT

49047-1055

$34.20

92002

BOLT,SOCKET,6X16

92002-1778

$5.00

92009

SCREW,6X45

92009-1599

$3.96

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92042A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,16005

92045-1045

$28.25

551

PIN-DOWEL,4X8

551A0408

$0.78
