1996 Kawasaki GPZ 1100 ABS Fuel Tank Diagram

← All diagrams

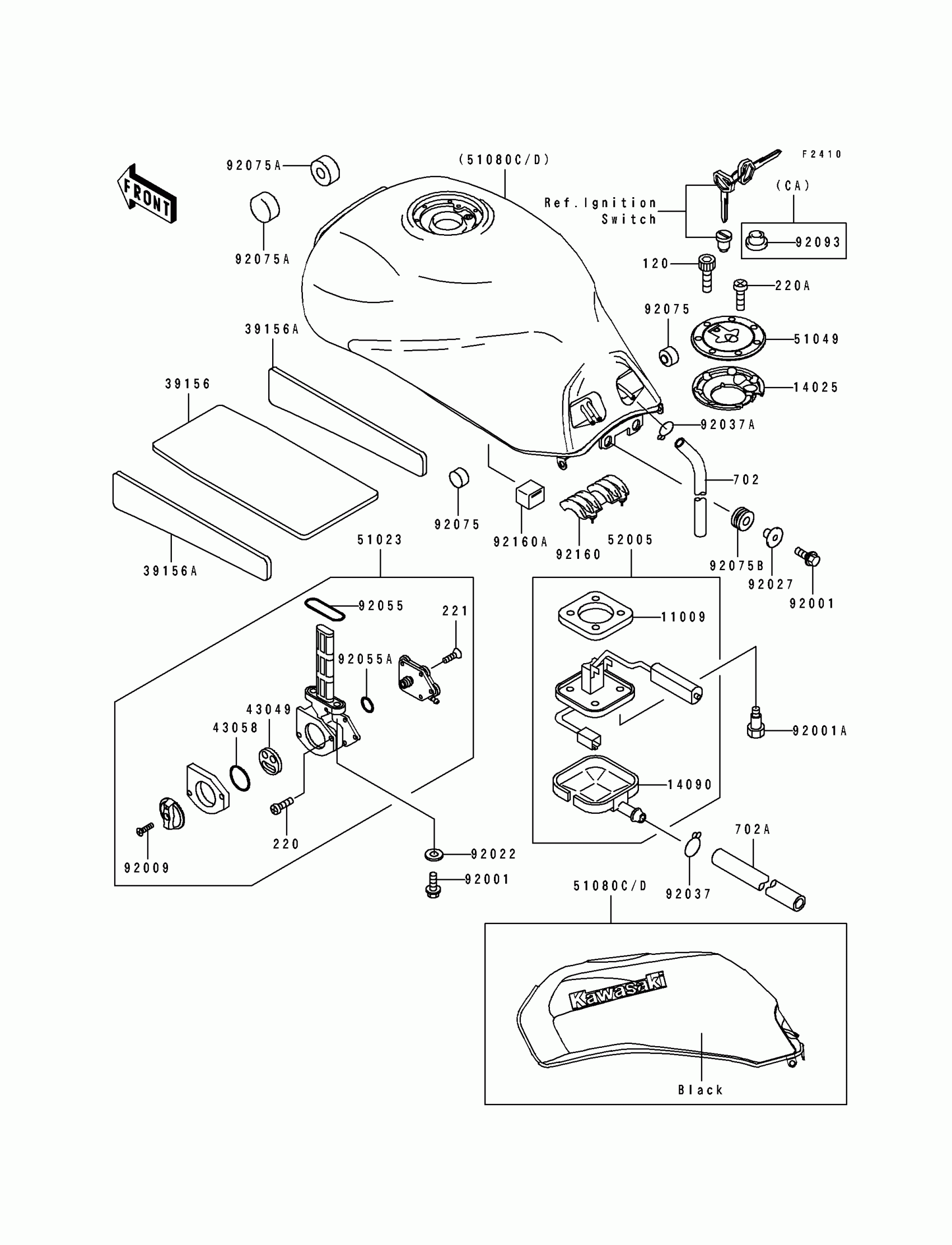

Find the part on the Fuel Tank diagram for your 1996 Kawasaki GPZ 1100 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki GPZ 1100 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL GAUGE

11009-1656

1
Out of stock

14025

COVER,TANK CAP

14025-1913

1
Out of stock

14090

COVER,FUEL GAUGE

14090-1624

1
Out of stock

39156

PAD,FUEL TANK,CNT

39156-1482

1
Out of stock

39156A

PAD,FUEL TANK

39156-1483

1
Out of stock

43049

PACKING,TAP VALVE

43049-1075

1
Out of stock

43058

RING,TAP LEVER

43058-1083

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1219

1
Out of stock

51049

CAP-TANK,FUEL

51049-1091

1
Out of stock

51080C

TANK-COMP-FUEL,P.G.BLACK

51080-5228-RL

1
Out of stock

51080D

TANK-COMP-FUEL,P.G.BLACK

51080-5229-RL

1
Out of stock

52005

GAUGE,FUEL

52005-1111

1
Out of stock

92001

BOLT,6X25

92001-1524

1
Out of stock

92001A

BOLT,FUEL GAUGE

92001-1705

1
Out of stock

92009

SCREW,4X12

92009-1742

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP

92037-1712

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O

92055-1539

1
Out of stock

92075

DAMPER

92075-021

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-101

1
Out of stock

92075B

DAMPER,10X24X12

92075-1690

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92160

DAMPER,FUEL TANK,CNT

92160-1577

1
Out of stock

92160A

DAMPER

92160-1626

1
Out of stock

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW-PAN-CROSS

220C0508

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

702

TUBE-RUBBER,7X10X600

702A07600

1
Out of stock

702A

TUBE-RUBBER,7X10X860

702A07860

1
Out of stock
