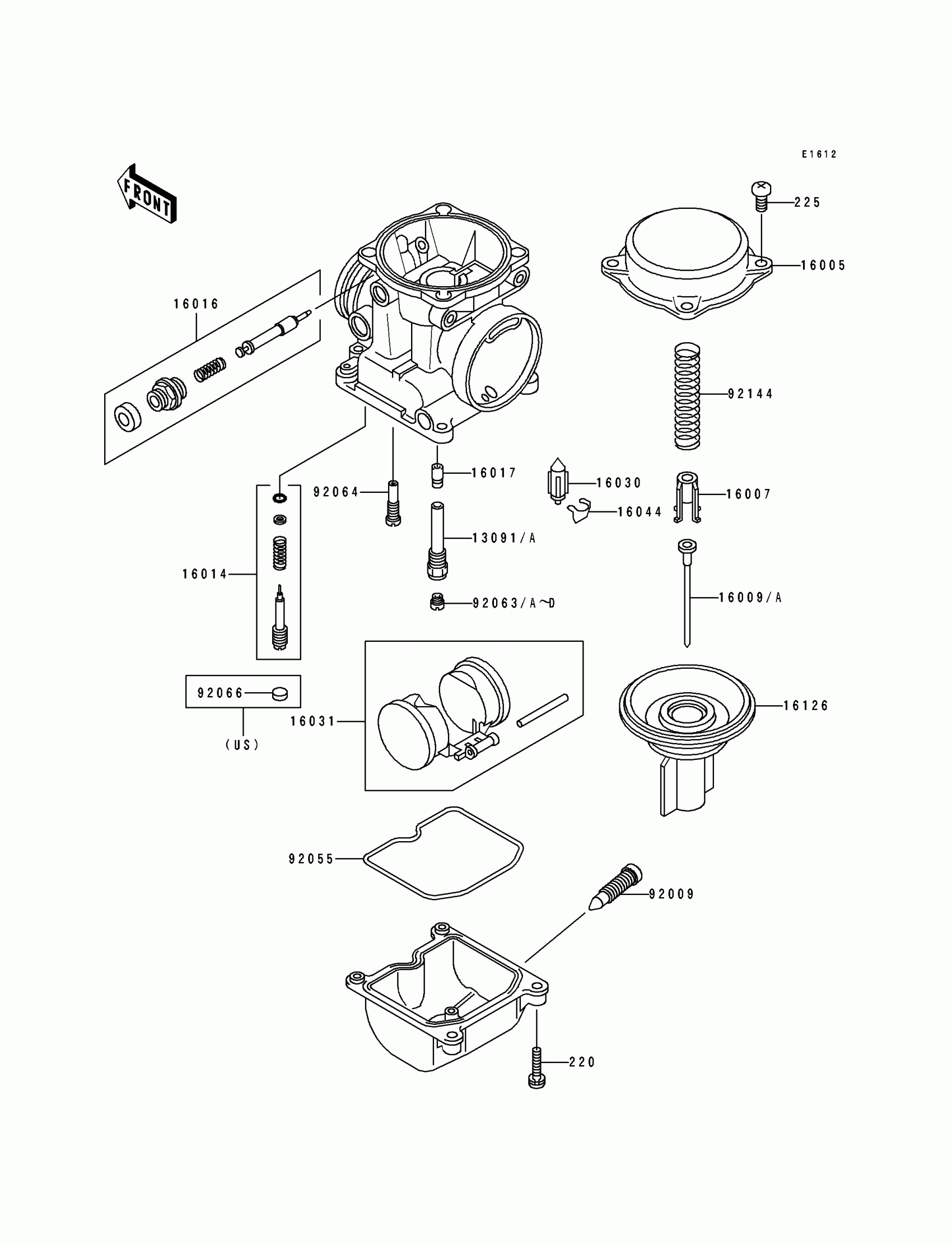

Kawasaki GPZ 1100 ABS Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1425

$26.26

13091A

HOLDER,NEEDLE JET,0.6X18

13091-1925

Unavailable

16005

TOP-CHAMBER,MIXING

16005-1054

$46.10

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009

NEEDLE-JET,N2LB

16009-1856

$41.83

16009A

NEEDLE-JET,N2LC

16009-1857

$41.83

16014

SCREW-PILOT AIR

16014-1080

$17.85

16016

PLUNGER,STARTER

16016-1090

$69.58

16017

JET-NEEDLE

16017-1265

Unavailable

16030

VALVE-FLOAT

16030-1057

$41.75

16031

FLOAT

16031-1077

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1170

$204.57

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92055

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#105

92063-1009

$14.90

92063A

JET-MAIN,#110

92063-1114

$14.02

92063B

JET-MAIN,#108

92063-1116

$14.02

92063C

JET-MAIN,#112

92063-1117

$14.02

92063D

JET-MAIN,#115

92063-1118

$14.02

92064

JET-PILOT,#35

92064-1101

$12.84

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92144

SPRING,VACUUM VALVE

92144-1219

$20.12

220

SCREW-PAN-CROS,4X14

220D0414

$3.51

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable
